Field Replaceable Units
FRU Removal and Replacement

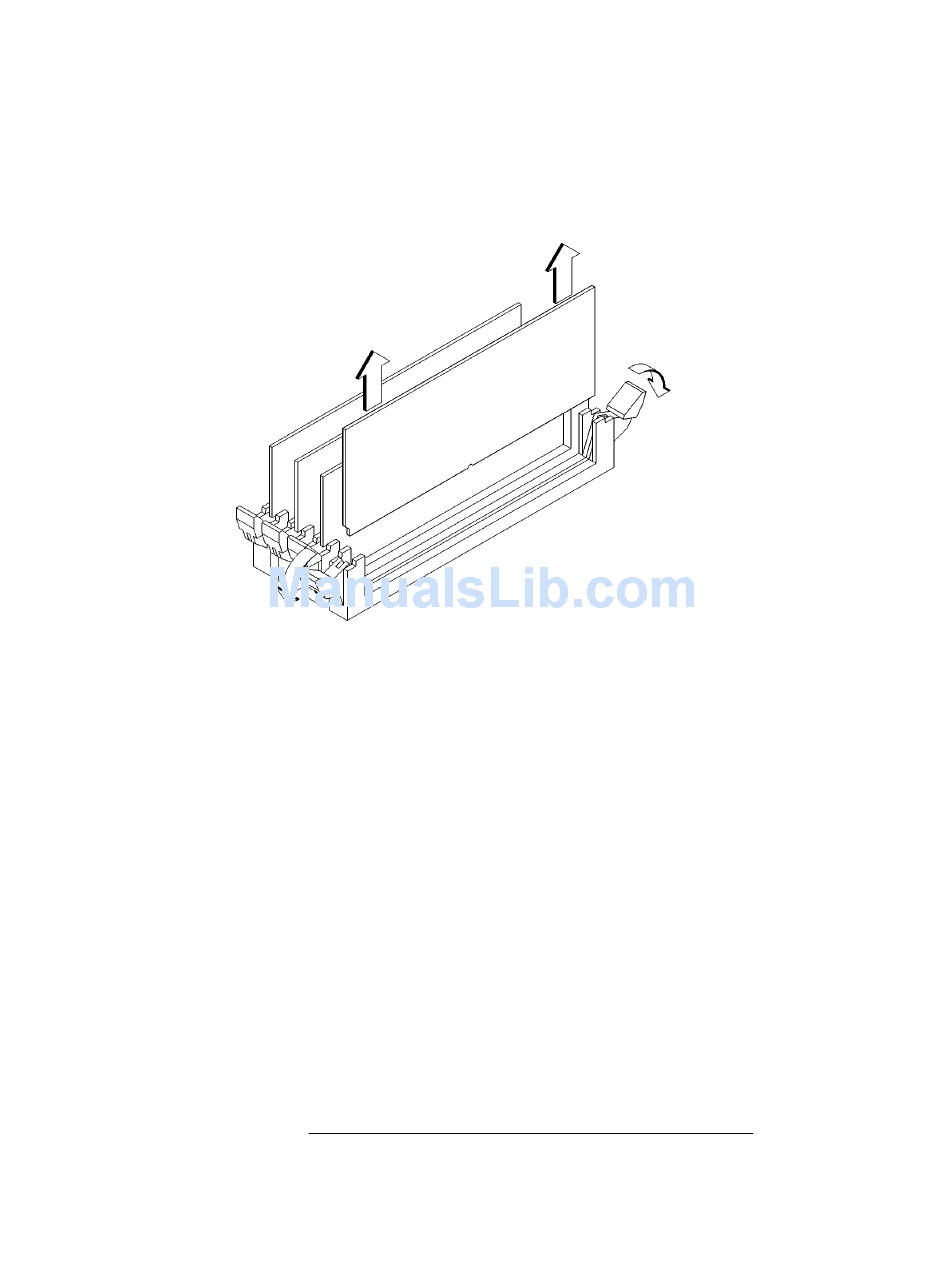

Figure 34
Removing a Memory Module
Installing Memory Modules
Before installing memory modules, remove the Main
Tray Assembly from the system unit.
Refer to Chapter 3 for information about memory
configurations.
Perform the following steps to install memory
modules:
1 Locate the memory connectors on the CPU board, as
shown in Figure 33 in the previous section.
104
