VIVOTEK

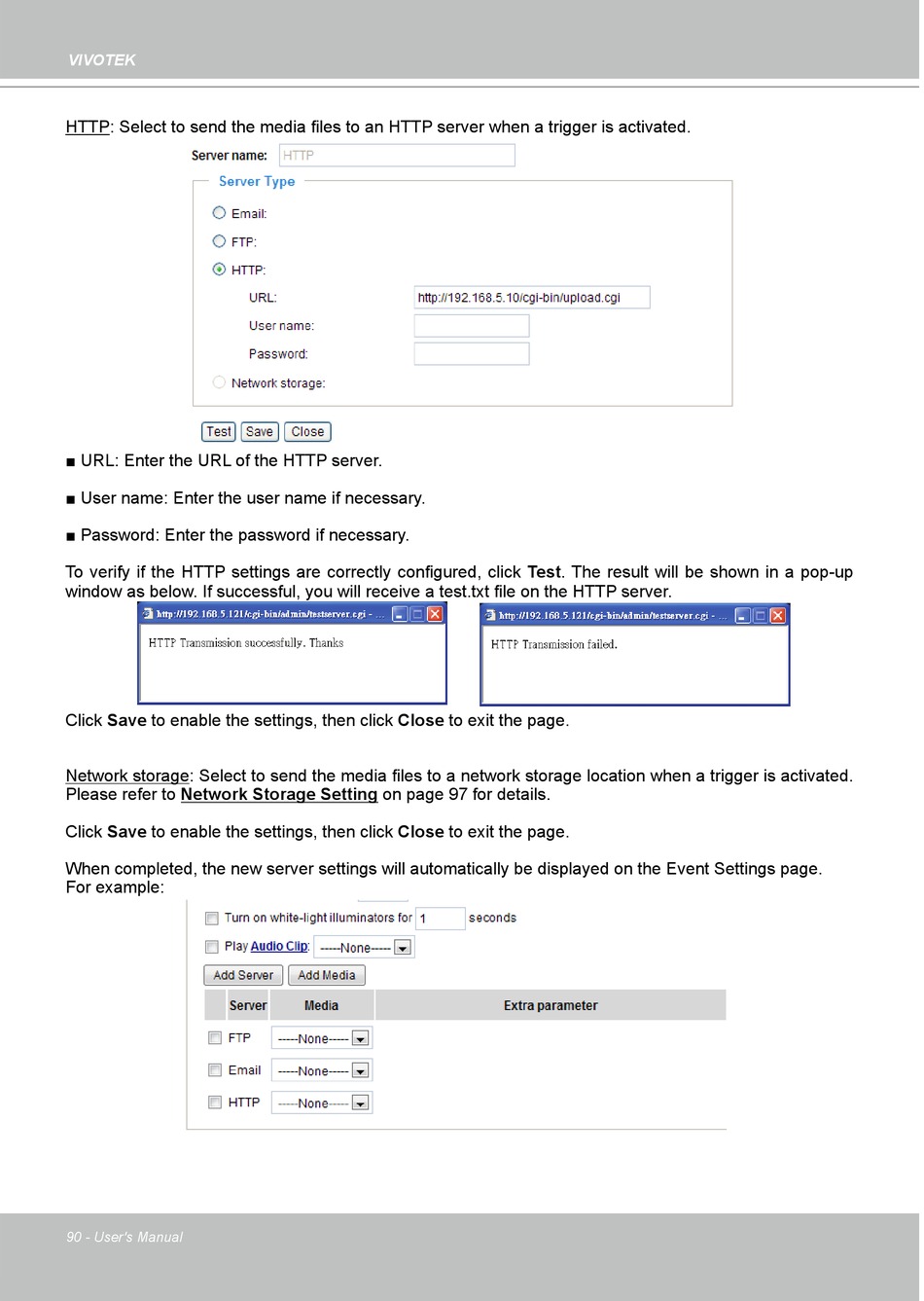

HTTP: Select to send the media files to an HTTP server when a trigger is activated�
■ URL: Enter the URL of the HTTP server.
■ User name: Enter the user name if necessary.
■ Password: Enter the password if necessary.
To verify if the HTTP settings are correctly configured, click Test� The result will be shown in a pop-up
window as below. If successful, you will receive a test.txt file on the HTTP server.
Click Save to enable the settings, then click Close to exit the page�
Network storage: Select to send the media files to a network storage location when a trigger is activated�
Please refer to Network Storage Setting on page 97 for details�
Click Save to enable the settings, then click Close to exit the page�
When completed, the new server settings will automatically be displayed on the Event Settings page�
For example:
