| Introduction
C 1
HAPTER
Overview

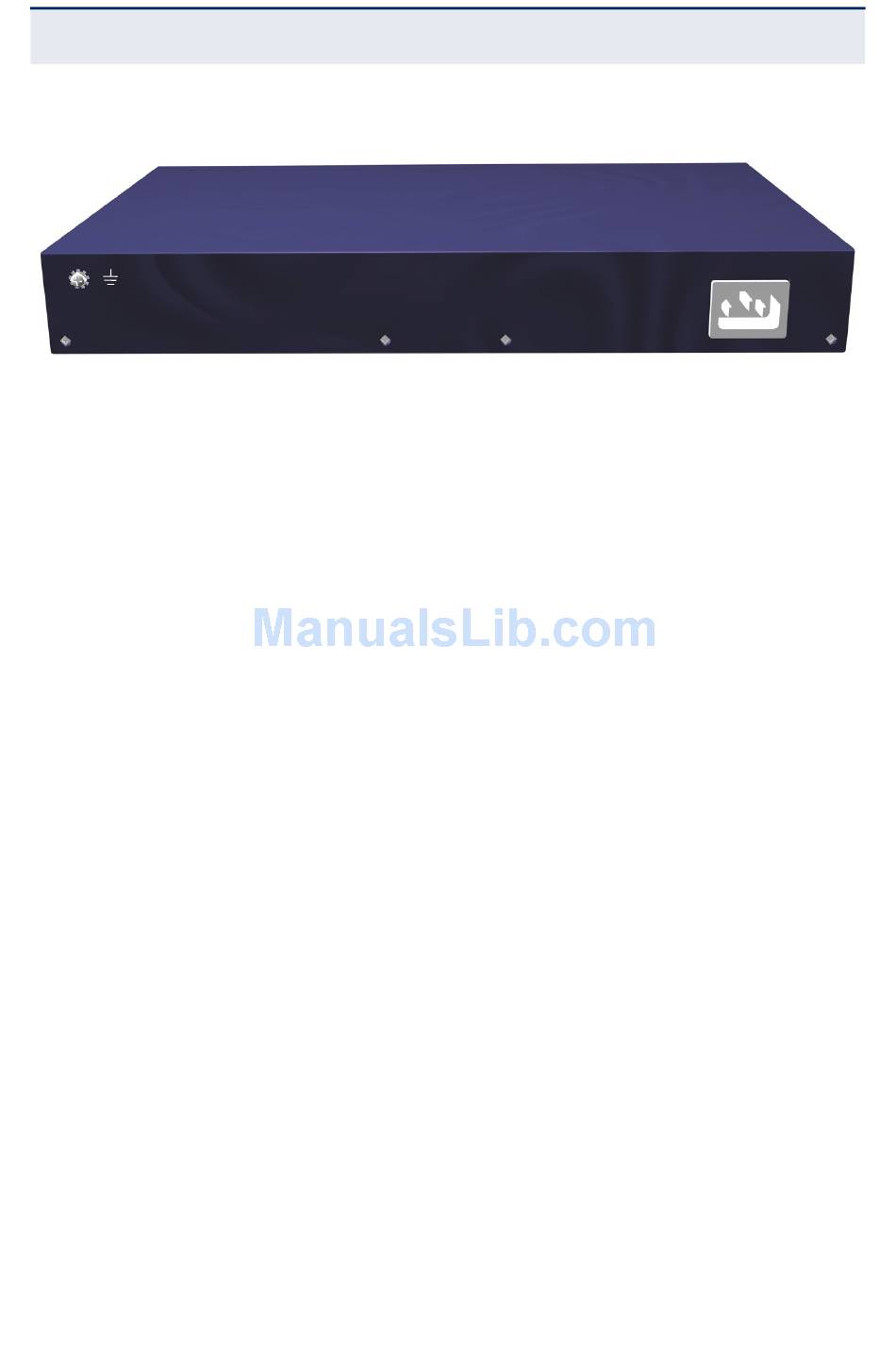

Figure 2: Rear Panel

S A
WITCH RCHITECTURE
This switch employs a wire-speed, non-blocking switching fabric. This permits
simultaneous wire-speed transport of multiple packets at low latency on all
ports. The switch also features full-duplex capability on all ports, which
effectively doubles the bandwidth of each connection.
This switch uses store-and-forward switching to ensure maximum data integrity.
With store-and-forward switching, the entire packet must be received into a
buffer and checked for validity before being forwarded. This prevents errors
from being propagated throughout the network.
N M
ETWORK ANAGEMENT
With a comprehensive array of LEDs, the switch provides "at a glance"
monitoring of network and port status. The switch can be managed over the
network with a web browser.
For a detailed description of the management features, refer to the Management
Guide.
P - -E
OWER OVER
All eight RJ-45 ports (1~8) of the SMCGS10P-Smart switch support the IEEE
802.3at standard that enables DC power to be supplied to attached devices
using wires in the connecting Ethernet cable. The total PoE power delivered by
all ports cannot exceed the 75 W power budget.
Any PoE-compliant device attached to a port can directly draw power from the
switch over the Ethernet cable without requiring its own separate power source.
This capability gives network administrators centralized power control for
O
PTIONS
THERNET
– 23 –
AC 100-240Vac, 50~60Hz, 1.7A AC 100-240Vac, 50~60Hz, 1.7A
