Page 1: Installation Guide

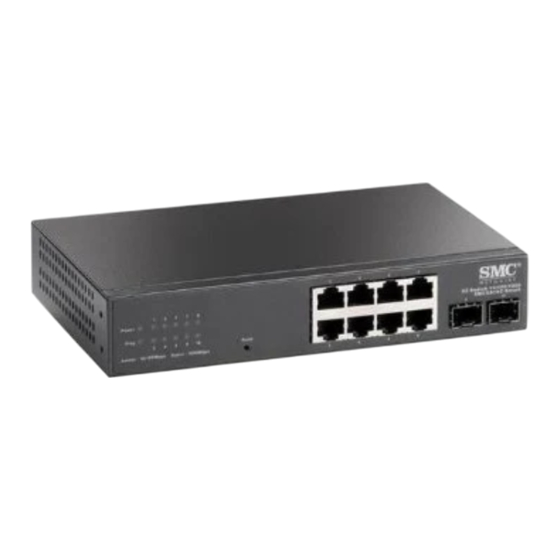

INSTALLATION GUIDE EZ Switch 10/100/1000 Web Smart 10-Port Gigabit Ethernet Switch SMCGS10C-Smart... - Page 2 EZ Switch 10/100/1000 Installation Guide From SMC’s EZ line of low-cost workgroup LAN solutions No. 1, Creation Road III, Hsinchu Science Park, December 2011 30077, Taiwan, R.O.C. 150200000312A TEL: +886 3 5770270 SMC-IG-1211-01 Fax: +886 3 5780764...
- Page 3 Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC.
-
Page 4: Warranty And Product Registration
ARRANTY AND RODUCT EGISTRATION To register SMC products and to review the detailed warranty statement, please refer to the Support Section of the SMC Website at http://www.smc.com. – –... -
Page 5: Compliances And Safety Statements
OMPLIANCES AND AFETY TATEMENTS FCC - C LASS This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 6 OMPLIANCES AND AFETY TATEMENTS CE M (EEC) ECLARATION OF ONFORMANCE FOR AFETY This information technology equipment complies with the requirements of the Council Directive 89/336/EEC on the Approximation of the laws of the Member States relating to Electromagnetic Compatibility and 73/23/EEC for electrical equipment used within certain voltage limits and the Amendment Directive 93/ 68/EEC.
- Page 7 OMPLIANCES AND AFETY TATEMENTS AFETY OMPLIANCE Warning: Fiber Optic Port Safety When using a fiber optic port, never look at the transmit laser while it is powered on. Also, never look directly at the CLASS I fiber TX port and fiber cable ends when they are powered LASER DEVICE Avertissment: Ports pour fibres optiques - sécurité...
- Page 8 OMPLIANCES AND AFETY TATEMENTS OWER AFETY Please read the following safety information carefully before installing the switch: Installation and removal of the unit must be carried out by qualified WARNING: personnel only. The unit must be connected to an earthed (grounded) outlet to comply with ◆...
- Page 9 OMPLIANCES AND AFETY TATEMENTS Power Cord Set U.S.A. and Canada The cord set must be UL-approved and CSA certified. The minimum specifications for the flexible cord are: - No. 18 AWG - not longer than 2 meters, or 16 AWG. - Type SV or SJ - 3-conductor The cord set must have a rated current capacity of at least 10 A...
- Page 10 OMPLIANCES AND AFETY TATEMENTS La prise secteur doit se trouver à proximité de l’appareil et son accès doit ◆ être facile. Vous ne pouvez mettre l’appareil hors circuit qu’en débranchant son cordon électrique au niveau de cette prise. L’appareil fonctionne à une tension extrêmement basse de sécurité qui est ◆...
- Page 11 OMPLIANCES AND AFETY TATEMENTS Bitte unbedingt vor dem Einbauen des Switches die folgenden Sicherheitsanweisungen durchlesen: Die Installation und der Ausbau des Geräts darf nur durch WARNUNG: Fachpersonal erfolgen. Das Gerät sollte nicht an eine ungeerdete Wechselstromsteckdose ◆ angeschlossen werden. Das Gerät muß an eine geerdete Steckdose angeschlossen werden, welche ◆...
- Page 12 OMPLIANCES AND AFETY TATEMENTS ARNINGS AND AUTIONARY ESSAGES This product does not contain any serviceable user parts. ARNING Installation and removal of the unit must be carried out by ARNING qualified personnel only. When connecting this device to a power outlet, connect the ARNING field ground lead on the tri-pole power plug to a valid earth ground line to prevent electrical hazards.
- Page 13 OMPLIANCES AND AFETY TATEMENTS ND OF RODUCT This product is manufactured in such a way as to allow for the recovery and disposal of all included electrical components once the product has reached the end of its life. ANUFACTURING ATERIALS There are no hazardous nor ozone-depleting materials in this product.
- Page 14 OMPLIANCES AND AFETY TATEMENTS – 14 –...
-
Page 15: About This Guide
BOUT UIDE URPOSE This guide details the hardware features of the switch, including the physical and performance-related characteristics, and how to install the switch. UDIENCE The guide is intended for use by network administrators who are responsible for installing and setting up network equipment; consequently, it assumes a basic working knowledge of LANs (Local Area Networks). - Page 16 BOUT UIDE – 16 –...
-
Page 17: Table Of Contents
ONTENTS ARRANTY AND RODUCT EGISTRATION OMPLIANCES AND AFETY TATEMENTS BOUT UIDE ONTENTS ABLES IGURES NTRODUCTION Overview Switch Architecture Network Management Options Description of Hardware ETWORK LANNING Introduction to Switching Application Examples Collapsed Backbone Network Aggregation Plan Application Notes NSTALLING THE WITCH Selecting a Site Ethernet Cabling... - Page 18 ONTENTS Rack-Mounting Connecting to a Power Source Installing an Optional SFP Transceiver AKING ETWORK ONNECTIONS Connecting Network Devices Twisted-Pair Devices Cabling Guidelines Connecting to PCs, Servers, Hubs and Switches Network Wiring Connections Fiber Optic SFP Devices Connectivity Rules 1000BASE-T Cable Requirements 1000 Mbps Gigabit Ethernet Collision Domain 100 Mbps Fast Ethernet Collision Domain 10 Mbps Ethernet Collision Domain...
-
Page 19: Tables
ABLES Table 1: Supported SFP Transceivers Table 2: Port Status LEDs Table 3: System Status LEDs Table 4: Maximum 1000BASE-T Gigabit Ethernet Cable Length Table 5: Maximum 1000BASE-SX Gigabit Ethernet Cable Lengths Table 6: Maximum 1000BASE-LX Gigabit Ethernet Cable Length Table 7: Maximum 1000BASE-LH Gigabit Ethernet Cable Length Table 8:... - Page 20 ABLES – 20 –...
-
Page 21: Figures
IGURES Figure 1: Front Panel Figure 2: Rear Panel Figure 3: Port and System LEDs Figure 4: Power Supply Inlet Figure 5: Grounding Point Figure 6: Reset Button Figure 7: Collapsed Backbone Figure 8: Network Aggregation Plan Figure 9: Remote Connections with Fiber Cable Figure 10: Making VLAN Connections Figure 11:... -
Page 22: Introduction
NTRODUCTION VERVIEW The SMCGS10C-Smart is a Gigabit Ethernet Layer 2 switch with 8 10/100/ 1000BASE-T ports, and 2 Small Form Factor Pluggable (SFP) transceiver slots, (see "Front Panel" on page 22, Ports 9-10). The switch also includes an SNMP-based management agent, which provides in- band access for managing the switch. -
Page 23: Switch Architecture
| Introduction HAPTER Overview Figure 2: Rear Panel 115-240Vac, 50-60Hz, 0.5A WITCH RCHITECTURE The switch employs a wire-speed, non-blocking switching fabric. This permits simultaneous wire-speed transport of multiple packets at low latency on all ports. The switch also features full-duplex capability on all ports, which effectively doubles the bandwidth of each connection. -
Page 24: Table 1: Supported Sfp Transceivers
| Introduction HAPTER Overview network connections to PCs or servers, or to other switches or hubs. (See "1000BASE-T Cable Requirements" on page 47.) Each of these ports support auto-negotiation, so the optimum transmission mode (half or full duplex), and data rate (10, 100, or 1000 Mbps) can be selected automatically. -
Page 25: Table 2: Port Status Leds
| Introduction HAPTER Overview ORT AND YSTEM The switch includes a display panel for key system and port indications that simplify installation and network troubleshooting. The LEDs, which are located on the front panel for easy viewing, are shown below and described in the following tables. -
Page 26: Table 3: System Status Leds
| Introduction HAPTER Overview Table 3: System Status LEDs Condition Status Power On Green The unit’s internal power supply is operating normally. The unit has no power connected. Diag On Green The system diagnostic test has completed successfully. Flashing The system boot up is in progress. Green On Amber / The system diagnostic test is in progress. -
Page 27: Figure 5: Grounding Point
| Introduction HAPTER Overview Figure 5: Grounding Point 115-240Vac, 50-60Hz, 0.5A Grounding Point ESET UTTON If you encounter any switch malfunctions, such as a hang or non-recoverable error, you might want to reset the switch to its default configuration by pressing and holding the reset button for six seconds. -
Page 28: Network Planning
ETWORK LANNING NTRODUCTION TO WITCHING A network switch allows simultaneous transmission of multiple packets via non- crossbar switching. This means that it can partition a network more efficiently than bridges or routers. The switch has, therefore, been recognized as one of the most important building blocks for today’s networking technology. -
Page 29: Network Aggregation Plan
| Network Planning HAPTER Application Examples in the near future. In a basic stand-alone configuration, it can provide direct full- duplex connections for up to 10 workstations or servers. You can easily build on this basic configuration, adding direct full-duplex connections to workstations or servers. -
Page 30: Figure 8: Network Aggregation Plan
| Network Planning HAPTER Application Examples Figure 8: Network Aggregation Plan 1000 Mbps Segments 10/100/1000 Mbps Segments Server Farm EMOTE ONNECTIONS WITH IBER ABLE Fiber optic technology allows for longer cabling than any other media type. A 1000BASE-SX (MMF) link can connect to a site up to 550 meters away, a 1000BASE-LX (SMF) link up to 10 km, a 1000BASE-LH link up to 80 km, and a 100BASE-FX (SMF) link up to 20 km. -
Page 31: Figure 9: Remote Connections With Fiber Cable
| Network Planning HAPTER Application Examples Figure 9: Remote Connections with Fiber Cable Headquarters 1000BASE-SX MMF 1000BASE-LX SMF (550 meters) (10 kilometers) Server Farm Remote Switch Remote Switch 10/100/1000 Mbps Segments VLAN C AKING ONNECTIONS This switch supports VLANs which can be used to organize any group of network nodes into separate broadcast domains. -
Page 32: Application Notes
| Network Planning HAPTER Application Notes Figure 10: Making VLAN Connections R&D VLAN 1 Tagged Tagged Port Ports VLAN Untagged Ports unaware VLAN switch aware switch Finance VLAN 2 Testing R&D Marketing Finance Testing VLAN 3 VLAN 1 VLAN 4 VLAN 2 VLAN 3 When connecting to a switch that does not support IEEE 802.1Q... - Page 33 | Network Planning HAPTER Application Notes 1000BASE-LH: 80 km (50 miles) for single-mode fiber. ■ 100BASE-FX: 20 km (12 miles) for single-mode fiber. ■ However, power budget constraints must also be considered when calculating the maximum cable length for your specific environment. –...
-
Page 34: Installing The Switch
NSTALLING THE WITCH This chapter describes how to install the switch. ELECTING A The site should: ◆ be at the center of all the devices you want to link and near a power ■ outlet. be able to maintain its temperature within 0 to 50 °C (32 to 122 °F) ■... -
Page 35: Ethernet Cabling
| Installing the Switch HAPTER Ethernet Cabling THERNET ABLING To ensure proper operation when installing the switch into a network, make sure that the current cables are suitable for 10BASE-T, 100BASE-TX, or 1000BASE-T operation. Check the following criteria against the current installation of your network: Cable type: Unshielded twisted pair (UTP) or shielded twisted pair (STP) ◆... -
Page 36: Equipment Checklist
| Installing the Switch HAPTER Equipment Checklist QUIPMENT HECKLIST After unpacking this switch, check the contents to be sure you have received all the components. Then, before beginning the installation, be sure you have all other necessary installation equipment. Web Smart 10-Port GE Switch ◆... -
Page 37: Mounting
| Installing the Switch HAPTER Mounting OUNTING The switch can be mounted in a standard 19-inch equipment rack or on a desktop or shelf. Mounting instructions for each type of site follow. OUNTING Before rack mounting the switch, pay particular attention to the following factors: Temperature: Since the temperature within a rack assembly may be higher ◆... -
Page 38: Figure 13: Attaching The Brackets
| Installing the Switch HAPTER Mounting To rack-mount devices: Attach the brackets to the device using the screws provided in the Bracket Mounting Kit. Figure 13: Attaching the Brackets Mount the device in the rack, using four rack-mounting screws (not provided). -
Page 39: Figure 15: Attaching The Adhesive Feet
| Installing the Switch HAPTER Mounting ESKTOP OR HELF OUNTING Attach the four adhesive feet to the bottom of the first switch. Figure 15: Attaching the Adhesive Feet Set the device on a flat surface near an AC power source, making sure there are at least two inches of space on all sides for proper air flow. -
Page 40: Connecting To A Power Source
| Installing the Switch HAPTER Mounting ONNECTING TO A OWER OURCE To connect a switch to a power source: Insert the power cable plug directly into the AC inlet located at the back of the switch. Figure 16: Power Inlet 115-240Vac, 50-60Hz, 0.5A Plug the other end of the cable into a grounded, 3-pin, AC power source. -
Page 41: Installing An Optional Sfp Transceiver
| Installing the Switch HAPTER Mounting SFP T NSTALLING AN PTIONAL RANSCEIVER Figure 17: Installing an Optional SFP Transceiver into a Slot This switch supports 1000BASE-SX, 1000BASE-LX, 1000BASE-LH, and 100BASE-FX SFP-compatible transceivers. To install an SFP transceiver, do the following: Consider network and cabling requirements to select an appropriate SFP transceiver type. -
Page 42: Making Network Connections
AKING ETWORK ONNECTIONS ONNECTING ETWORK EVICES This switch is designed to be connected to 10, 100, or 1000 Mbps network cards in PCs and servers, as well as to other switches and hubs. It may also be connected to remote devices using optional 1000BASE-SX, 1000BASE-LX, 1000BASE-LH, or 100BASE-FX SFP transceivers. -
Page 43: Connecting To Pcs, Servers, Hubs And Switches
| Making Network Connections HAPTER Twisted-Pair Devices ONNECTING TO ERVERS UBS AND WITCHES Attach one end of a twisted-pair cable segment to the device’s RJ-45 connector. Figure 18: Making Twisted-Pair Connections If the device is a network card and the switch is in the wiring closet, attach the other end of the cable segment to a modular wall outlet that is connected to the wiring closet. -
Page 44: Network Wiring Connections
| Making Network Connections HAPTER Twisted-Pair Devices ETWORK IRING ONNECTIONS Today, the punch-down block is an integral part of many of the newer equipment racks. It is actually part of the patch panel. Instructions for making connections in the wiring closet with this type of equipment follows. Attach one end of a patch cable to an available port on the switch, and the other end to the patch panel. -
Page 45: Fiber Optic Sfp Devices
| Making Network Connections HAPTER Fiber Optic SFP Devices SFP D IBER PTIC EVICES An optional SFP transceiver (1000BASE-SX, 1000BASE-LX, 1000BASE-LH, or 100BASE-FX) can be used for a backbone connection between switches, or for connecting to a high-speed server. Each single-mode fiber port requires 9/125 micron single-mode fiber optic cable with an LC connector at both ends. -
Page 46: Figure 20: Making Fiber Port Connections
| Making Network Connections HAPTER Fiber Optic SFP Devices Figure 20: Making Fiber Port Connections As a connection is made, check the Link LED on the switch corresponding to the port to be sure that the connection is valid. The 1000BASE-SX/LX/LH fiber optic ports operate at 1 Gbps full duplex. The 100BASE-FX fiber optic ports operate at 100 Mbps full duplex. -
Page 47: Connectivity Rules
| Making Network Connections HAPTER Connectivity Rules ONNECTIVITY ULES When adding hubs (repeaters) to your network, please follow the connectivity rules listed in the manuals for these products. However, note that because switches break up the path for connected devices into separate collision domains, you should not include the switch or connected cabling in your calculations for cascade length involving other devices. -
Page 48: 100 Mbps Fast Ethernet Collision Domain
| Making Network Connections HAPTER Connectivity Rules Table 6: Maximum 1000BASE-LX Gigabit Ethernet Cable Length Fiber Size Fiber Bandwidth Maximum Cable Length Connector 9/125 micron single- 2 m - 10 km (7 ft - 6.4 miles) LC mode fiber Table 7: Maximum 1000BASE-LH Gigabit Ethernet Cable Length Fiber Size Fiber Bandwidth Maximum Cable Length... -
Page 49: Cable Labeling And Connection Records
| Making Network Connections HAPTER Cable Labeling and Connection Records ABLE ABELING AND ONNECTION ECORDS When planning a network installation, it is essential to label the opposing ends of cables and to record where each cable is connected. Doing so will enable you to easily locate inter-connected devices, isolate faults and change your topology without need for unnecessary time consumption. -
Page 50: A T Roubleshooting
ROUBLESHOOTING LED I IAGNOSING NDICATORS Table 11: LED Indicators LED Status Action Power LED is Off ◆ Check connections between the switch, the power cord, and the wall outlet. ◆ Contact your dealer for assistance. Diag LED is ◆ Power cycle the switch to try and clear the condition. Flashing Amber ◆... -
Page 51: Troubleshooting
| Troubleshooting PPENDIX Installation NSTALLATION Verify that all system components have been properly installed. If one or more components appear to be malfunctioning (such as the power cord or network cabling), test them in an alternate environment where you are sure that all the other components are functioning properly. -
Page 52: Specifications
PECIFICATIONS HYSICAL HARACTERISTICS ORTS 8 10/100/1000BASE-T, with auto-negotiation 2 10/100/1000BASE-SFP transceiver slots ETWORK NTERFACE Ports 1-8: RJ-45 connector, auto MDI/MDI-X 10BASE-T: RJ-45 (100-ohm, UTP cable; Category 3 or better) 100BASE-TX: RJ-45 (100-ohm, UTP cable; Category 5 or better) 1000BASE-T: RJ-45 (100-ohm, UTP cable; Category 5, 5e or better) *Maximum Cable Length - 100 m (328 ft) Ports 9-10: SFP transceiver slots 100BASE-FX, 1000BASE-SX,1000BASE-LX, 1000BASE-LH, 1000BASE-T... - Page 53 | Specifications PPENDIX Physical Characteristics System: Power, Diag Port: Status (link, speed, activity) EIGHT 0.74 kg (1.63 lbs) (W x D x H) 19.6 x 11.6 x 3.7 cm (7.71 x 4.57 x 1.46 in.) EMPERATURE Operating: 0°C to 50°C (32°F to 122°F) Storage: -40°C to 70°C (-40°F to 158°F) UMIDITY Operating: 10% to 90% (non-condensing)
-
Page 54: Switch Features
| Specifications PPENDIX Switch Features WITCH EATURES ORWARDING Store-and-forward HROUGHPUT Wire speed ONTROL Full Duplex: IEEE 802.3x Half Duplex: Back pressure ANAGEMENT EATURES ANAGEMENT Web, or SNMP manager TANDARDS IEEE 802.3-2005 Ethernet, Fast Ethernet, Gigabit Ethernet Full-duplex flow control Link Aggregation Control Protocol IEEE 802.1Q IEEE 802.1P ISO/IEC 8802-3... -
Page 55: Compliances
| Specifications PPENDIX Compliances OMPLIANCES CE M MISSIONS FCC Class A IEC 55022 (CISPR 22) Class A IEC 61000-3-2/3 VCCI Class A MMUNITY EN 61000-4-2/3/4/5/6/8/11 AFETY CSA (CSA 22.2 No 60950-1 & UL60950-1) CB (IEC 60950-1/ EN60950-1) – 55 –... -
Page 56: Glossary
LOSSARY 10BASE-T IEEE 802.3 specification for 10 Mbps Ethernet over two pairs of Category 3, 4, or 5 UTP cable. 100BASE-TX IEEE 802.3u specification for 100 Mbps Ethernet over two pairs of Category 5 UTP cable. 1000BASE-LH Specification for long-haul Gigabit Ethernet over two strands of 9/125 micron core fiber cable. - Page 57 LOSSARY ANDWIDTH The difference between the highest and lowest frequencies available for network signals. Also synonymous with wire speed, the actual speed of the data transmission along the cable. OLLISION OMAIN Single CSMA/CD LAN segment. CSMA/CD CSMA/CD (Carrier Sense Multiple Access/Collision Detect) is the communication method employed by Ethernet, Fast Ethernet, and Gigabit Ethernet.
- Page 58 LOSSARY IEEE Institute of Electrical and Electronic Engineers. IEEE 802.3 Defines carrier sense multiple access with collision detection (CSMA/CD) access method and physical layer specifications. IEEE 802.3 Defines CSMA/CD access method and physical layer specifications for 1000BASE-T Gigabit Ethernet. (Now incorporated in IEEE 802.3-2005.) IEEE 802.3 Defines CSMA/CD access method and physical layer specifications for 100BASE- TX Fast Ethernet.
- Page 59 LOSSARY (MAC) EDIA CCESS ONTROL A portion of the networking protocol that governs access to the transmission medium, facilitating the exchange of data between network nodes. An acronym for Management Information Base. It is a set of database objects that contains information about the device. ODAL ANDWIDTH Bandwidth for multimode fiber is referred to as modal bandwidth because it...
- Page 60 LOSSARY UDP packets are delivered just like IP packets – connection-less datagrams that may be discarded before reaching their targets. UDP is useful when TCP would be too complex, too slow, or just unnecessary. Unshielded twisted-pair cable. LAN (VLAN) IRTUAL A Virtual LAN is a collection of network nodes that share the same collision domain regardless of their physical location or connection point in the network.
- Page 61 LOSSARY – 61 –...
-
Page 62: Index
NDEX LED indicators UMERICS Diag 10 Mbps connectivity rules Power 100 Mbps connectivity rules location requirements 1000 Mbps connectivity rules 1000BASE-LH fiber cable Lengths 1000BASE-LX fiber cable Lengths 1000BASE-SX fiber cable Lengths multimode fiber optic cables 100BASE-TX, cable lengths 10BASE-T, cable lengths network connections cable... - Page 63 NDEX – 63 –...
- Page 65 From U.S.A. and Canada (24 hours a day, 7 days a week) Tel: +1 (800) SMC-4-YOU/+1 (949) 679-8000 Fax: +1 (949) 679-1481 su www.smc.com www.smc-asis.com www.smcnetworks.co.kr SMCGS10C-Smart www.edge-core.com/ www.smc.com 150200062800A R02 20 Mason • Irvine, CA 92618 • Phn: 949-679-8000 • www.smc.com...
