Speaker; Figure 4-60. Removing The Pci Retainer Clip; Figure 4-61. Fan And Speaker Cables Connected To The I/O Board - HP Visualize J7000 Supplementary Manual

Field Replaceable Units (FRUs)
FRU Removal and Replacement

Speaker

This section describes how to remove and replace the speaker, which is located in the
fan/speaker mounting bracket in the bottom of the front, right side of the workstation.
Removing the Speaker
To remove the speaker, do the following:
1. Remove the top panel and the right side panel.
2. Remove the PCI retainer clip by pressing down on the thumb tab and pulling the clip
forward to rotate it out of the chassis floor hole, as shown in Figure 4-60.

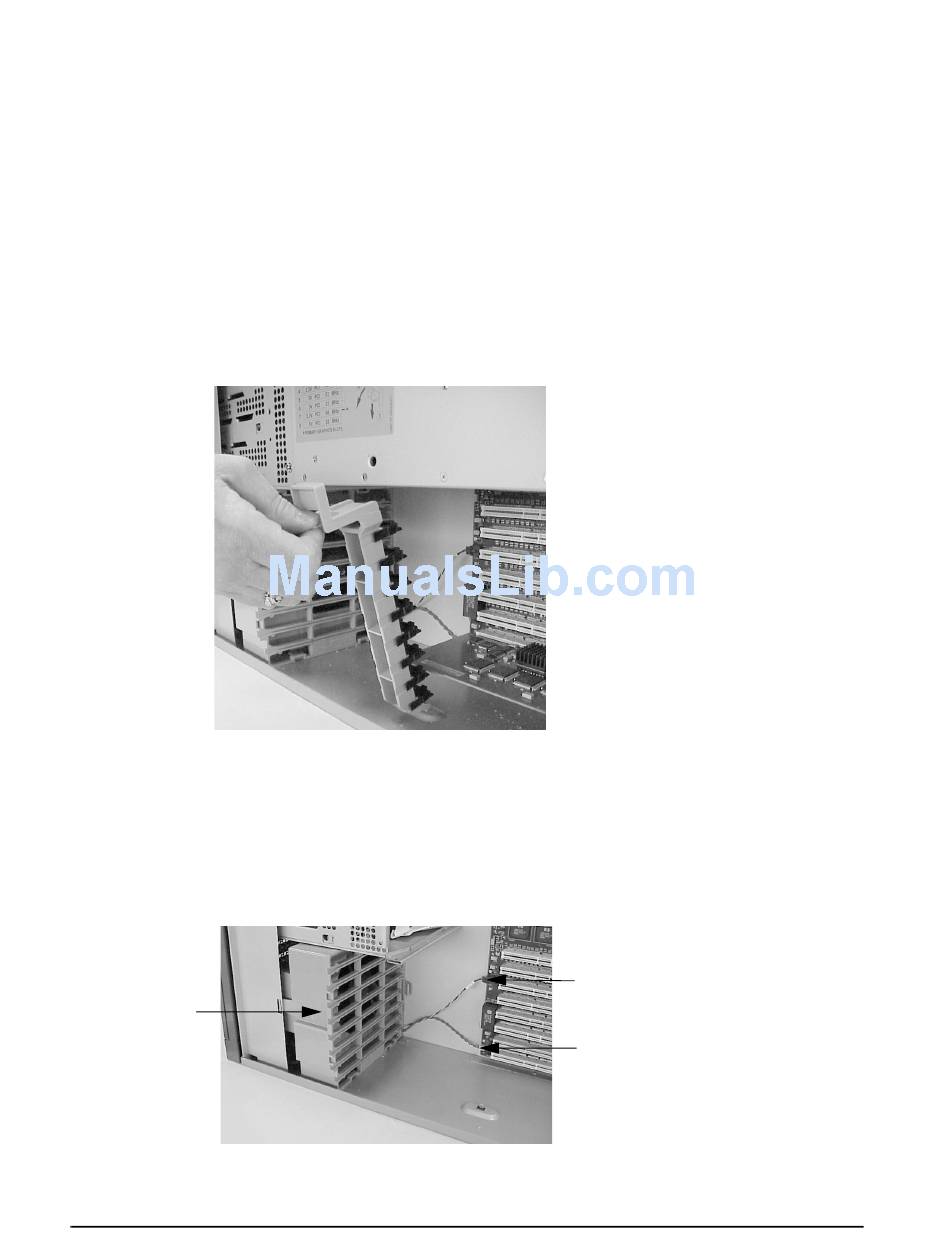

Figure 4-60. Removing the PCI Retainer Clip

3. Remove all I/O cards from the I/O board and note their locations for reinstallation later.
See the removal procedures in the section "I/O Cards" on page 121 for details.
4. Remove the power supply by following the removal procedures in "Power Supply" on
page 128.
5. Disconnect the fan and speaker cables from the I/O board, as shown in Figure 4-61.

Figure 4-61. Fan and Speaker Cables Connected to the I/O Board

Fan/speaker
mounting bracket
142
Fan cable
Speaker cable
Chapter 4
