Front Bezel and Outer Panels

This section describes how to remove and replace the J5000 and J7000 workstation's front
bezel, as well as the top and the two side outer panels.
Note that you can perform certain operations, like removing and replacing hard disk
drives, simply by opening the door on the front bezel of the workstation; the disk drives are
accessible through the open door. Other operations require more access to the interior of
the workstation, so you will need to remove the front bezel or outer panels to perform those
procedures.
CAUTION Do not attempt to operate the workstation with the front bezel, top panel, or
side panels removed. In addition to maintaining FCC/EMI compliance, the
front bezel, top panel, and side panels are needed to ensure proper air flow
and, hence, sufficient system cooling.
Removing the Front Bezel
To remove the front bezel, do the following:
1. Open the right-hand door of the front bezel. If the door does not easily release, you may
need the bezel lock's key to unlock the door.

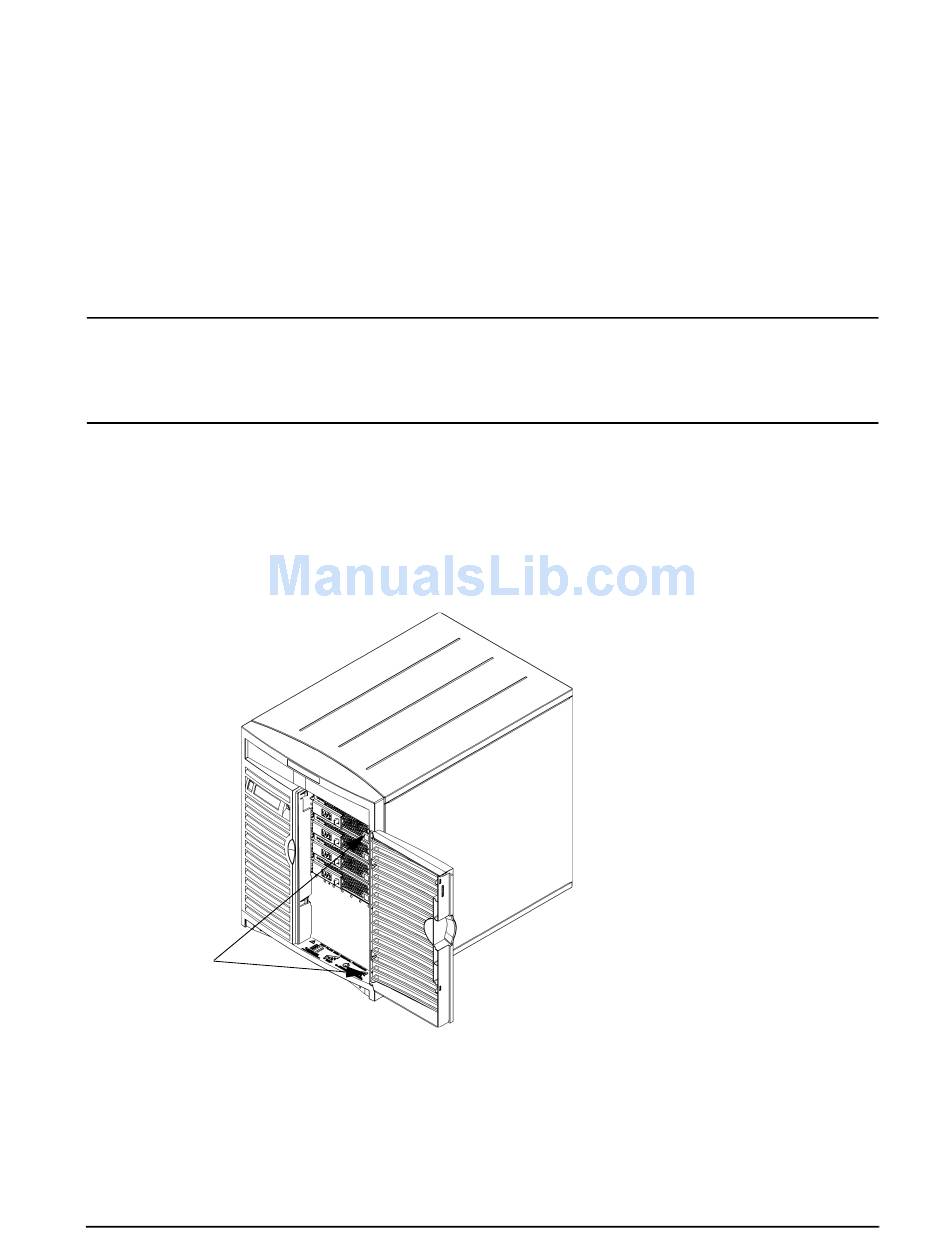

Figure 4-2. Front Bezel with Door Opened

Bezel-detach
screw holes
2. Remove the two T-15 Torx bezel-detach screws on the top and bottom, right inside
corners of the front bezel.
3. Grasp and pull out on the outer right edge of the front bezel, rotating the front bezel
clockwise and pulling it away from the front panel.
Chapter 4
Field Replaceable Units (FRUs)
FRU Removal and Replacement
91
