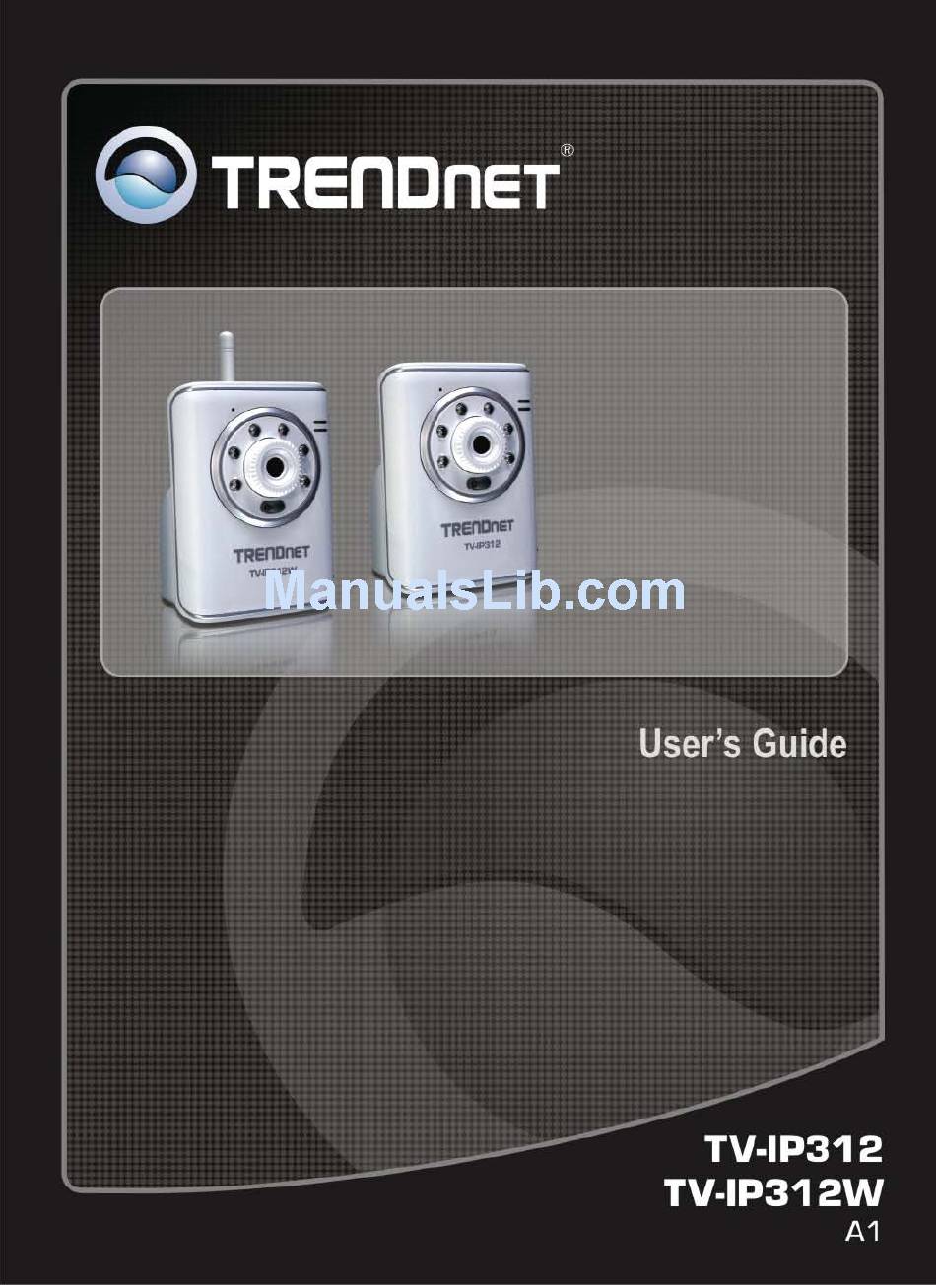

TRENDnet TV-IP312 User Manual

Hide thumbs Also See for TV-IP312:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for TRENDnet TV-IP312

Summary of Contents for TRENDnet TV-IP312

  • Page 2: Preface

    REFACE Thank you for purchasing the TV-IP312/TV-IP312W SecurView Wire/Wireless Internet Camera Server or Day/Night Internet Camera Server, a powerful dual-codec wireless network camera with the 2- way audio function that provides the high-quality image and on-the- spot audio via the Internet connection. The Infrared LEDs and light sensor enable the camera to capture images even in the dark environment.
  • Page 3 Chapter 6 Appendix provides the specification of the camera and some useful information for using your camera. NOTE The illustrations and configuration values in this guide are for reference only. The actual settings depend on your practical application of the camera. - 2 -...

  • Page 4: Table Of Contents

    Contents PREFACE ................1 CHAPTER 1................ 5 INTRODUCTION .............. 5 1.1 C HECKING THE ACKAGE ONTENTS ........... 5 1.2 G ETTING TO AMERA ..........6 1.3 F EATURES AND ENEFITS ............10 1.4 S YSTEM EQUIREMENT ............12 CHAPTER 2..............13 HARDWARE INSTALLATION ........
  • Page 5 4.10 USB ..................64 4.11 I NFORMATION ................ 66 CHAPTER 5..............68 SECURVIEW™ SOFTWARE ......... 68 5.1 INSTALLATION ..............68 5.2 USING INSTALLATION ............74 TEM FEATURES ................75 O ADD A CAMERA ................81 O REMOVE A CAMERA ..............84 O LINK TO THE EB PAGE OF THE CAMERA .........

  • Page 6: Chapter 1

    HAPTER NTRODUCTION 1.1 Checking the Package Contents Please check the packaging contents. The packaging should include the following:  TV-IP312/TV-IP312W  Multi-Language Quick Installation Guide  CD-ROM (Utility & User’s Guide)  Detachable External Antenna (for TV-IP312W only)  Camera Stand.

  • Page 7: Getting To Know Your Camera

    1.2 Getting to Know Your Camera TV-IP312 (Front/Back View) - 6 -...
  • Page 8 TV-IP312W (Front/Back View) - 7 -...
  • Page 9 Internal Microphone: It allows the camera to receive the sound or voice. Infrared LEDs: It allows your camera to capture clear image in a dark environment. Light Sensor: It is used to trigger on and off the Infrared LEDs according the environmental light level. Power LED: A steady orange light indicates the camera is powered on.
  • Page 10 Speaker Connector: Connects a external active speaker to the camera. Power Connector: Connects the AC power adapter to supply power to the camera. LAN Port: It is used to connect the network RJ-45 cable, which supports the NWay protocol so that the camera can detect the network speed automatically.

  • Page 11: Features And Benefits

    1.3 Features and Benefits MPEG4/MJPEG Dual-codec Supported  The camera provides you with excellent images by the MPEG4/MJPEG dual-codec selectable technology, allowing you to adjust image size and quality, and bit rate according to the networking environment. 2-way Audio Capability ...
  • Page 12 Remote Control Supported  By using a standard Web browser or the bundled SecurView™ software application, the administrator can easily change the configuration of the camera via Intranet or Internet. In addition, the camera can be upgraded remotely when a new firmware is available.

  • Page 13: System Requirement

    1.4 System Requirement Networking  LAN: 10Base-T Ethernet or 100Base-TX Fast Ethernet. WLAN: IEEE 802.11b/g. Accessing the Camera using Web Browser  Platform: Microsoft® Windows® 7/Vista/XP/2000 CPU: Intel Pentium III 350MHz or above RAM: 128MB Resolution: 800x600 or above Browser: Microsoft®...

  • Page 14: Chapter 2

    HAPTER ARDWARE NSTALLATION 2.1 Installing the Camera Stand The camera comes with a camera stand, which uses a swivel ball screw head to lock the camera. When the camera stand is attached, you can place the camera anywhere by mounting the camera through the three screw holes located in the base of the camera stand.

  • Page 15: Connecting The Camera To Lan/Wlan

    2.2 Connecting the Camera to LAN/WLAN Connects an Ethernet cable to the LAN port located on the Camera’s real panel, and then attaches it to the network. Connects an antenna to the antenna connector. (TV-IP312W only) Attach the external power supply to the DC power input connector located on Camera’s real Panel, and then connect it to your local power...

  • Page 16: Applications Of The Camera

    2.3 Applications of the Camera The camera can be applied in multiple applications, including: Monitor local and remote places and objects via Internet or  Intranet. Capture still images and video clips remotely.  Upload images or send email messages with the still images ...

  • Page 17: Chapter 3

    HAPTER CCESSING THE AMERA 3.1 Using IP Setup The camera comes with a conveniently utility, IP Setup, which is included in the Installation CD-ROM, allowing you to search the camera on your network easily. 1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate the Auto-Run program.
  • Page 18 3. Click “Browse” to choose the desired destination location. By default, the destination location is C:\Program Files\TRENDnet\IPSetup. Then Click “Next”. 4. Click “Next” to confirm the IPSetup software to be installed to the computer. - 17 -...
  • Page 19 5. When the Installation Complete window appears, click “Finish”. - 18 -...
  • Page 20 6. After installing the IPSetup utility, the application is automatically installed to your computer, and creates a folder in “ Start \Program\TRENDnet\IPSetup”. 7. Click Start > Programs > TRENDnet > IPSetup, and then click IPSetup 8. The IPSetup window will appear. It will search the Camera within the same network.
  • Page 21 Camera Display Area: It shows the connected camera(s) within the same network Double click the IP address, it will link to Camera’s Web Configuration page. Change IP: Click this button to bring up the following window. It allows you to change the IP Address. You can select either Static IP or click DHCP.

  • Page 22: Accessing To The Camera

    3.2 Accessing to the Camera 1. Open the Web browser on your computer (example showed in the User’s Guide is based on the Internet Explorer) Type the default IP address (192.168.10.30) and then press [Enter]. 3. When the login window appears, enter the default User name (admin) and password (admin) and press OK to access to the main screen of the camera’s Web Configuration.
  • Page 23 NOTE If you are initially access to the camera, you will be ask to install a new plug-in for the camera. Permission request depends on the Internet security settings of your computer. Click Yes to proceed. After you login into the Web Configuration of the camera, the main page will appear as below: Camera Information Zoom In...
  • Page 24 Click the button to enable the “nightshot mode” to  – deliver clearer images in the dark environment. However, this will reduce the frame rate of video setting. (TV-IP312/TV-IP312W only) Live View Image Displays the real-time image of the connected ...

  • Page 25: Configuring The Ip Address Of The Pc

    3.3 Configuring the IP Address of the PC If you are failed to access to the camera, please check the IP address of your computer. When you connect the camera to your computer directly to proceed with configuration of the camera, you need to set up the IP addresses to be in the same segment for the two devices to communicate.

  • Page 26: Chapter 4

    HAPTER ONFIGURING THE AMERA 4.1 Using the Web Configuration You can access and manage the camera through the Web browser or from the SecurView™ software (see chapter 5 in more detail). This chapter describes the Web Configuration, and guides you through the configuration of the camera by using the web browser.

  • Page 27: Using Smart Wizard

    The Web Configuration contains the settings that are required for the camera in the left menu bar, including Smart Wizard, Basic, Network, Video/Audio, Event Server, Motion detect, Event Config, Tools, USB, and Information. 4.2 Using Smart Wizard The camera’s Smart Wizard lets you configure your camera easily and quickly.
  • Page 28 Step 1. Camera Settings Enter Camera name, Location, New Admin password and enter again to confirm Admin password Step 2. IP Settings Select the IP setting according to your network: DHCP, Static IP, or PPPoE. - 27 -...
  • Page 29 Step 3. Email Settings Enter the required information to be able to send email with image. - 28 -...
  • Page 30 Step 4. Wireless Networking (for TV-IP212W/TV-IP312W only) Select Enable to enable the wireless function of the camera, and then complete the required settings. - 29 -...
  • Page 31 Step 5. Confirm Settings This step shows all the setting information. This step shows the configuration of your camera. When you confirm the settings, click Apply to finish the wizard and reboot the camera. Otherwise, click Prev to go back to the previous step(s) and change the settings;...

  • Page 32: Basic Setup

    4.3 Basic Setup The Basic menu contains three sub-menus that provide the system settings for the camera, such as the Camera Name, Location, Date & Time, and User management. - 31 -...
  • Page 33 Basic >> System Basic  - Camera Name: Enter a descriptive name for the camera. - Location: Enter a descriptive name for the location used by the camera. Indication LED  This item allows you to set the LED illumination as desired. There are two options: Normal and OFF.
  • Page 34 Basic >> Date & Time Date & Time  - TimeZone: Select the proper time zone for the region from the pull-down menu. - Synchronize with PC: Select this option and the date & time settings of the camera will be synchronized with the connected computer.
  • Page 35 Basic >> User Administrator  To prevent unauthorized access to the camera’s Web Configuration, you are strongly recommend to change the default administrator password. Type the administrator password twice to set and confirm the password. General User  - User Name: Enter the user’s name you want to add to use the camera.
  • Page 36 Guest  - User Name: Enter the guest’s name you want to add to use the camera. - Password: Enter the password for the new guest. - User List: Display the existing guests of the camera. To delete a user, select the one you want to delete and click Delete. ...

  • Page 37: Network Settings

    4.4 Network Settings The Network menu contains three sub-menus that provide the network settings for the camera, such as the IP Setting, DDNS Setting, IP Filter, and Wireless network. - 36 -...
  • Page 38 Network >> Network IP Setting  This item allows you to select the IP address mode and set up the related configuration. - DHCP: Select this option when your network uses the DHCP server. When the camera starts up, it will be assigned an IP address from the DHCP server automatically.
  • Page 39 - Static IP: Select this option to assign the IP address for the camera directly. You can use IPSetup to obtain the related setting values. Enter the IP address of the camera. The default setting is 192.168.10.30. Subnet Mask Enter the Subnet Mask of the camera. The default setting is 255.255.255.0.
  • Page 40 The camera supports UPnP (Universal Plug and Play), which is a set of computer network protocols that enable the device-to- device interoperability. In addition, it supports port auto mapping function so that you can access the camera if it is behind an NAT router or firewall.
  • Page 41 Network >> IP Filter The IP Filter setting allows the administrator of the camera to limit the users within a certain range of IP addresses to access the camera. Start/End IP Address  Assign a range of IP addresses that are not allowed to access the camera by entering the Start IP address and End IP address.
  • Page 42 The camera supports WLAN while you use the wireless network. Select the Enable option to enable this feature. - Network ID (SSID}: The default SSID setting is “TRENDnet”. To connect the camera to a specified access point, set a SSID for the camera to correspond with the access point’s ESS-ID.
  • Page 43 List of searching results - Wireless Mode: Select the type of wireless communication for the camera: Infrastructure or Ad-Hoc. - Channel: Select the appropriate channel from the list. - Authentication: Select the authentication method to secure the camera from being used by unauthorized user: Open, Shared-key, WPA-PSK, and WPA2-PSK.
  • Page 44 Encryption: Select the WEP option to enable the data encryption feature to secure the camera within the wireless network. Format: Once you enable the Encryption feature, you need to determine the encryption format by selecting ASCII or HEX. ASCII format causes each character you type to be interpreted as an eight-bit value.

  • Page 45: Setting Up Video & Audio

    4.5 Setting up Video & Audio The Video & Audio menu contains three sub-menus that provide the video and audio settings for the camera. Video & Audio >> Camera - 44 -...
  • Page 46 Image Setting  - Brightness: Adjust the brightness level from 0 ~ 100. - Contrast: Adjust the contrast level from 0 ~ 100. - Saturation: Adjust the colors level from 0 ~ 100 Click Default to restore the default settings of the three options above.
  • Page 47 Video & Audio >> Video MPEG4  - Video Resolution: Select the desired video resolution from the three formats: VGA, QVGA and QQVGA. The higher setting (VGA) obtains better video quality while it uses more resource within your network. - Video Quality: Select the desired image quality from five levels: Lowest, Low, Medium, High, and Highest.
  • Page 48 (VGA) obtains better video quality while it uses more resource within your network. - Video Quality: Select the desired image quality from five levels: Lowest, Low, Medium, High, and Highest. - Frame Rate: Select a proper setting depending on your network status.
  • Page 49 Video & Audio >> Audio Camera Microphone In  Select the Enable option to enable the camera’s audio function, so that you can receive the on-site sound and voice from the camera. Camera Speaker Out  Select the Enable option to enable the camera’s external speaker function, so that the connected speaker can play the sound and voice through the camera.

  • Page 50: Event Server Configuration

    4.6 Event Server Configuration The Event Server menu contains three sub-menus that allow you to upload images to FTP, send emails that include still images, and store the images to a NAS system. When you complete the required settings for FTP, Email, or Network Storage, click Test to test the related configuration is correct or not.
  • Page 51 Event Server Setting>> FTP  - Host Address: Enter the IP address of the target FTP server. - Port Number: Enter the port number used for the FTP server. - User Name: Enter the user name to login into the FTP server. - Password: Enter the password to login into the FTP server.
  • Page 52 Event Server Setting >> Email Email  - SMTP Server Address: Enter the mail server address. For example, mymail.com. - Sender Email Address: Enter the email address of the user who will send the email. For example, John@mymail.com. - Sender User Name: Enter the user name to login the mail server.
  • Page 53 Event Server Setting >> Network Storage Net Storage  - Samba Server Address: Enter the IP address of the Network Storage server. For example: 192.168.10.51. - Share: Assign the folder on the Network Storage server to share the files to users. For example, SAC7001-e1. - Path: Assign the path for uploading the files on the Network Storage server.
  • Page 54 - When Disk Full: Select Stop Recording or Recycle – Delete Oldest Folder of File when the storage space on the Network Storage server is full. - 53 -...

  • Page 55: Motion Detect

    4.7 Motion Detect The Motion Detect menu contains the command and option that allow you to enable and set up the motion detection feature of the camera. The camera provides two detecting areas. To enable the detecting area, select Window 1 or 2 from the pull- down list, and then select Enable.
  • Page 56 - Name: Assign a name to the detecting area. - Threshold: Move the slide bar to adjust the level for detecting motion to record video. - 55 -...

  • Page 57: Event Config

    4.8 Event Config The Event Config menu contains four sub-menus that provide the commands to configure event profiles. - 56 -...
  • Page 58 Event Configuration >> General Setting - Snapshot/Recording Filename Prefix: You can assign a given prefix to each new captured file. Otherwise, leave this option blank to use the default setting. - Network Storage Recording Time Per Even: Limit the recording time while you are using the Network Storage solution.
  • Page 59 After entering the profile name, click OK and the profile is added to the Schedule Profiles list. To delete the profile, select the profile in the list and click Delete. - Profile Name: Display the profile name that you select in the Schedule Profiles list.
  • Page 60 - Time List: Display the time period that you have assigned within the selected weekday. To assign the same time period to every weekday, click Add this to all weekdays; click Delete this from all weekdays to remove the selected time period from every weekday.
  • Page 61 - Action: Select the destination that the captured images will be sent to: Send Email, FTP Upload, Record to Network Storage, or Save Image to USB. Event Configuration >> Schedule Trigger You can separately configure the schedule for trigger function of the camera by Email, FTP, or Network Storage.
  • Page 62 recorded file becomes a non-stop video clip because the camera will record a 10-second video clip every 5 seconds. - 61 -...

  • Page 63: Tools

    4.9 Tools The Tools menu provides the commands that allow you to restart or reset the camera. You can also backup and restore your configuration, and upgrade the firmware for the camera. - 62 -...
  • Page 64 Factory Reset  Click Reset to restore all factory default settings for the camera. System Reboot  Click Reboot to restart the camera just like turning the device off and on. The camera configuration will be retained after rebooting. Configuration ...

  • Page 65: Usb

    4.10 USB The USB menu provides the information and controls of the connected USB device. USB Dismount  To safely remove the connected USB device, you can press the Unmount button for four seconds on the camera or click Dismount from this item. USB Information ...
  • Page 66 USB Setting  - When Disk Full: Select Stop Recording or Recycle – Delete Oldest Folder of File when the storage space on the USB device is full. NOTE The connected USB storage device can be only used to store still images.

  • Page 67: Information

    4.11 Information The Information menu displays the current configuration and events log of the camera. Device Info  Display the Basic, Video & Audio, Network, and Wireless settings of the camera. - 66 -...
  • Page 68 System Log  The Logs table displays the events log recorded by the system. - 67 -...

  • Page 69: Chapter 5

    HAPTER ™ S ECUR OFTWARE This Chapter describes detail instructions on operating SecurView™ software, a useful friendly application for ease of control and navigation requirement. INSTALLATION 1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate the Auto-Run program. 2.
  • Page 70 NOTE To use SecurView™, you must have Microsoft .NET Framework 2.0 installed in the computer. The setup wizard will detect it and, if the program is not installed yet, ask you to install it during the process of installing SecurView™. - 69 -...
  • Page 71 3. Then SecurView Setup Wizard will appear. Click “Next” when the Welcome to the SecurView Setup Wizard appears - 70 -...
  • Page 72 4. Click “Browse” to choose the desired destination location. By default, the destination location is C:\Program Files\TRENDnet\SecurView. Then Click “Next”. - 71 -...
  • Page 73 5. Click “Next” to confirm the SecurView software to be installed to the computer. - 72 -...
  • Page 74 6. Click t When the Installation Complete window appears, click “Close”. 7. After installing the IPSetup utility, the application is automatically installed to your computer, and creates a folder in “ Start \Program\TRENDnet\SecurView”. - 73 -...

  • Page 75: Using Installation

    USING INSTALLATION To launch the program, click Start > Program > TRENDnet > SecurView, and then click SecruView™. The main screen will appear as below. NOTE Please set the resolution to 1024x768 or above on your computer while using SecurView™; otherwise, the displayed main screen may be distorted.

  • Page 76: Item Features

    Item features The following describes the function of each item on the main screen: CONTROLS Panel  - SETTING: Click to enter the Setting screen of SecurView™. Click again to return to the main screen of SecurView™. - PLAY: Click to play the recorded video file using the media player on the computer (for example, Windows Media Player by default).
  • Page 77 information to unlock. - ALL RECORD: Click to start recording video clips using ALL connected cameras. To stop recording, please click Record button to stop the individual camera. Please note: stop recording only stop the manual recording camera. For schedule recording, please change the setting on configuration. By default, the ID and Password boxes are “blank.”...
  • Page 78 VIEW SELECTION Panel  - View mode buttons: SecurView™ provides multiple view modes, including 1/4/9/16 windows and Full screen mode. - SCAN: When multiple cameras connected, click this button to display the video views between cameras. Click the Scan button again to stop scanning. - PREV: When multiple cameras connected, click this button to switch the video view to the previous camera.
  • Page 79 CAMERA Panel  - TRIGGER OUT: Click to turn on the trigger out connector of the camera. This button is available only when the connected camera supports the trigger out connector, which is used to control the external device connected to the camera, such as a light.
  • Page 80 SYSTEM Panel  This panel displays the current date and time. PAN-TILT CONTROL Panel (optional)  When you connect a pan/tilt camera, the system will detect the camera’s function automatically and the PAN-TILT CONTROL buttons will become functional. Otherwise, these buttons are displayed as gray out buttons.
  • Page 81 Video View Window and Camera List  Video Viewing Window Camera List - Video Viewing Window: This window displays the video view of the selected camera, which can be divided into 4/9/16 windows according to your selection in VIEW SELECTION panel. - Camera List: This list displays the information of the connected camera(s).

  • Page 82: To Add A Camera

    To add a camera 1. Click SETTING in the CONTROLS panel to display the Setting screen. 2. Click Add New Camera. - 81 -...
  • Page 83 3. In the pop-up Add New Camera dialog window, you can:  Select the Search tab if you are not sure of the camera’s IP address. Click Search camera to search the available camera within the network. Once the camera is found and is shown in the list, select it and click Add Camera.
  • Page 84 4. Enter the User name and Password for the camera, and then click OK. The connected camera will be displayed in the Camera List. - 83 -...

  • Page 85: To Remove A Camera

    5. Click SETTING to return to the Video View Window. The video view of the selected camera will be displayed now. To remove a camera 1. Click SETTING in the CONTROLS panel to display the Setting screen. 2. Select a camera from the list and click Delete Camera. - 84 -...

  • Page 86: To Link To The Web Page Of The Camera

    Select a camera Delete the camera To link to the Web page of the camera Click SETTING > Camera List > Camera Configuration and then Link web page to launch the Web browser that displays live view image and Web Configuration of the selected camera. - 85 -...

  • Page 87: To Record Video

    To record video SecurView™ provides three methods to record video clips: one is to click the RECORD/All Record button to record manually; the second is to record by motion detection; the third is to set the recording schedule in Setting > Recording Configuration > Schedule Recording Configuration.
  • Page 88 Trigger recording by motion detection  When the motion detection function of the selected camera is enabled, you can configure the camera to start recording triggered by the motion detected. Click SETTING > Motion Configuration, and then select the Recording option to enable the selected camera to record by motion detection.
  • Page 89 Schedule recording Configuration  This recording method will work after you have completed the required settings in Schedule Recording Configuration. The recording schedule can be defined by Dates or Days. - Dates: Select the camera from the pull-down list.. - 88 -...
  • Page 90 Select a camera Add Schedule - Then, click Add to set the Start/Stop date and time and then click OK to add the recording schedule to the list. - Click Apply to save the settings - 89 -...
  • Page 91 - 90 -...
  • Page 92 Days: First, select the camera from the pull-down list and select Days tab. Then, select the weekday from the day buttons and then set the time period. Click Apply to save the settings. - 91 -...

  • Page 93: To Configure The Recording Settings

    To configure the recording settings To configure the recording settings, including the storage folder and storage options, click SETTING > Recording Configuration. Recording File Path: To change the destination folder to save  the recorded video file, click Browse under the Recording File Path box to assign a new folder.

  • Page 94: To Playback The Recorded Video

    Reserved HDD space for each camera: This option allows you  to set to reserve the storage space on the hard disk drive for the recording of each camera. Before setting the reserve space on the hard disk drive, you can check the available storage space that is displayed in the HDD Free space field.

  • Page 95: To Set Up Motion Detection Options

    NOTE If your player on the computer don’t have video codec to playback the recorded video. You can download video codec from http://www.xvid.org/downloads.15.0.html to support. To set up motion detection options When the motion detection function of the selected camera is enabled, you can set the Motion Options by selecting Alarm, Recording, Send e-Mail, and Trigger Out under SETTING >...
  • Page 96 Alarm: Select Beep or Music to alert you for the motion  detected. When you select Music, you can customize the sound by clicking Browse and then selecting your favorite music (*.wav or *.mp3 file) in the computer. Recording: Select this option to enable the camera to record ...

  • Page 97: Account

    - Mail From: Enter the email address of the user who will send the email. For example, John@mymail.com. - Mail To: Enter the email address of the user who will receive the email. - User Name: Enter the user name to login the mail server. - Password: Enter the password to login the mail server.
  • Page 98 - 97 -...

  • Page 99: Information

    Information Click SETTING > About to display the information of the software application. - 98 -...

  • Page 100: Chapter 6

    HAPTER PPENDIX A.1 Specification Image Sensor  Sensor 1/4” color CMOS Resolution 640x480 Video  Compression MPEG4/MJPEG Video resolution VGA/QVGA/QQVGA; 30fps max. System Hardware  Processor ARM9 base 32MB SDRAM 8MB NOR Flash Power DC 5V, 2.5AV Communication  10/100Mbps Fast Ethernet, auto-sensed, Auto-MDIX WLAN IEEE 802.11b/g...
  • Page 101 User Interface  One RJ-45 port Antenna One detachable antenna Reset One reset button USB 1.1 port, with one unmount button; Power distribution: 500mA Max. Support FAT,FAT32 file system LEDs Power LED (orange); Link LED (green) Audio  Input Built-in MIC Output Headphone 3.5mm output jack (Mono) Codec...

  • Page 102: Glossary Of Terms

    A.2 Glossary of Terms NUMBERS 10BASE-T 10BASE-T is Ethernet over UTP Category III, IV, or V unshielded twisted-pair media. 100BASE-TX The two-pair twisted-media implementation of 100BASE- T is called 100BASE-TX. ADPCM Adaptive Differential Pulse Code Modulation, a new technology improved from PCM, which encodes analog sounds to digital form.
  • Page 103 workstation to give its own IP address. Communication Communication has four components: sender, receiver, message, and medium. In networks, devices and application tasks and processes communicate messages to each other over media. They represent the sender and receivers. The data they send is the message. The cabling or transmission method they use is the medium.
  • Page 104 192.167.222.8. Enterprise An enterprise network consists of collections of networks network connected to each other over a geographically dispersed area. The enterprise network serves the needs of a widely distributed company and operates the company’s mission-critical applications. Ethernet The most popular LAN communication technology. There are a variety of types of Ethernet, including 10Mbps (traditional Ethernet), 100Mbps (Fast Ethernet), and 1,000Mbps (Gigabit Ethernet).
  • Page 105 Group Groups consist of several user machines that have similar characteristics such as being in the same department. Short for hexadecimal refers to the base-16 number system, which consists of 16 unique symbols: the numbers 0 to 9 and the letters A to F. For example, the decimal number 15 is represented as F in the hexadecimal numbering system.
  • Page 106 IP address IP address is a 32-binary digit number that identifies each sender or receiver of information that is sent in packets across the Internet. For example 80.80.80.69 is an IP address. When you “call” that number, using any connection methods, you get connected to the computer that “owns”...
  • Page 107 next-generation mobile telephones. Network Address Translator generally applied by a router that makes many different IP addresses on an internal network appear to the Internet as a single address. For routing messages properly within your network, each device requires a unique IP address. But the addresses may not be valid outside your network.
  • Page 108 reply. It is primarily used to troubleshoot Internet connections. PPPoE Point-to-Point Protocol over Ethernet. PPPoE is a specification for connecting the users on an Ethernet to the Internet through a common broadband medium, such as DSL or cable modem. All the users over the Ethernet share a common connection.
  • Page 109 protocol defined to deliver live media to the clients at the same time, which defines the transmission of video and audio files in real time for Internet applications. RTSP RTSP (Real-time Streaming Protocol) is the standard used to transmit stored media to the client(s) at the same time, which provides client controls for random access to the content stream.
  • Page 110 Transceiver A transceiver joins two network segments together. Transceivers can also be used to join a segment that uses one medium to a segment that uses a different medium. On a 10BASE-5 network, the transceiver connects the network adapter or other network device to the medium. Transceivers also can be used on 10BASE-2 or 10BASE-T networks to attach devices with AUI ports.
  • Page 111 that provides greater data protection and network access control for Wi-Fi networks. WPA2 uses the government- grade AES encryption algorithm and IEEE 802.1X-based authentication, which are required to secure large corporate networks. - 110 -...

  • Page 112: Limited Warranty

    All products that are replaced become the property of TRENDnet. Replacement products may be new or reconditioned. TRENDnet does not issue refunds or credit. Please contact the point-of-purchase for their return policies. TRENDnet shall not be responsible for any software,...
  • Page 113 TRENDnet products. Products that are sent to TRENDnet for RMA service must have the RMA number marked on the outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment.
  • Page 114 USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD. LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL,...
  • Page 115 Download section and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes.
  • Page 116 - 115 -...
