Chapter 2 Opening the chassis
Chapter 2 Opening the chassis
Chapter 2 Opening the chassis
Chapter 2 Opening the chassis
Chapter 2 Opening the chassis

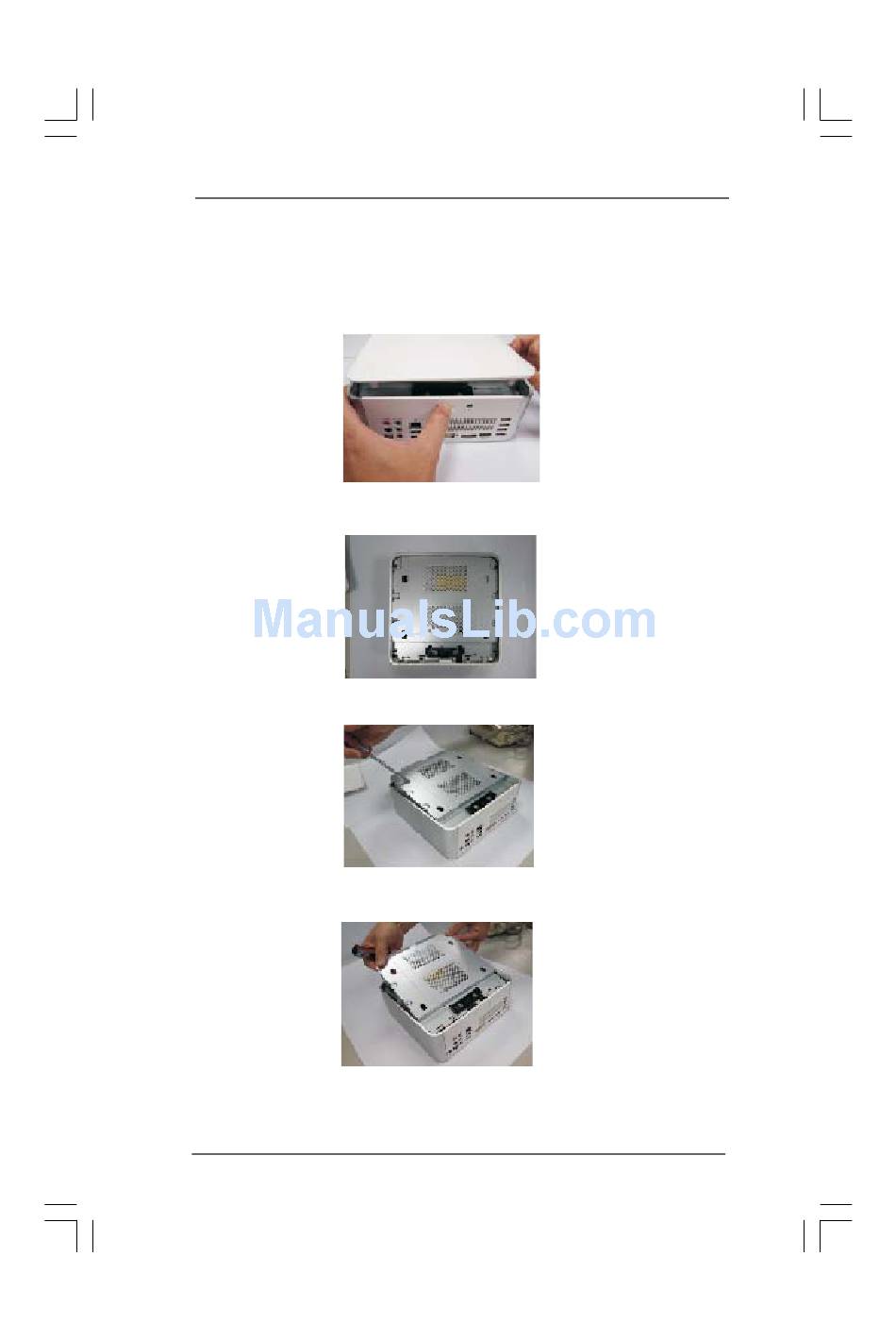

1. Press the button on the rear I/O to open the top side of the chassis.
2. After the chassis is opened, you will see the top shield inside the
chassis.
3. Unscrew the screws on the corner of the top shield.
4. Carefully take the top shield out.
1 4
1 4
1 4
1 4
1 4
