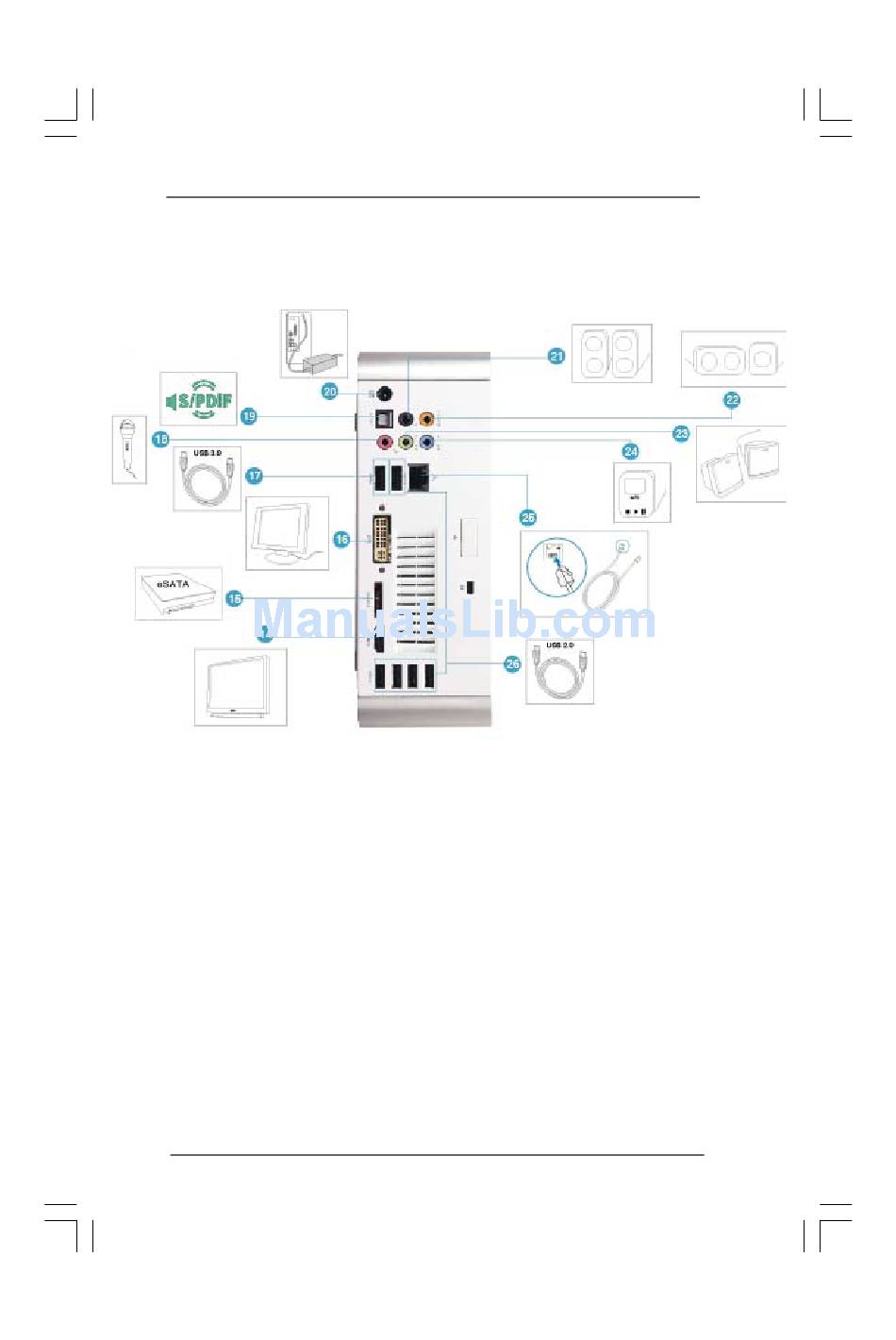

1.4 Rear Panel Connectinos 1.4 Rear Panel Connectinos 1.4 Rear Panel Connectinos 1.4 Rear Panel Connectinos 1.4 Rear Panel Connectinos
14. HDMI connector
15. eSATAII connector
16. DVI-I port (Dual-Link)
17. USB3.0 ports: USB devices
18. Mic In (Pink): Microphone
19. Optical S/PDIF Out port
20. DC-In jack
21. Side port for side speakers
22. Center/LFE (Orange): Center / subwoofer speakers
23. Front L/R Out (Lime): Stereo speakers or headphones
24. Line In (Blue) for 2/4/6 channel; Rear (Blue) for 8 channel
25. LAN (RJ-45) port: Local Area Network
26. USB2.0 ports: USB devices
