Basic Concepts

2-1-11 Program Capacity

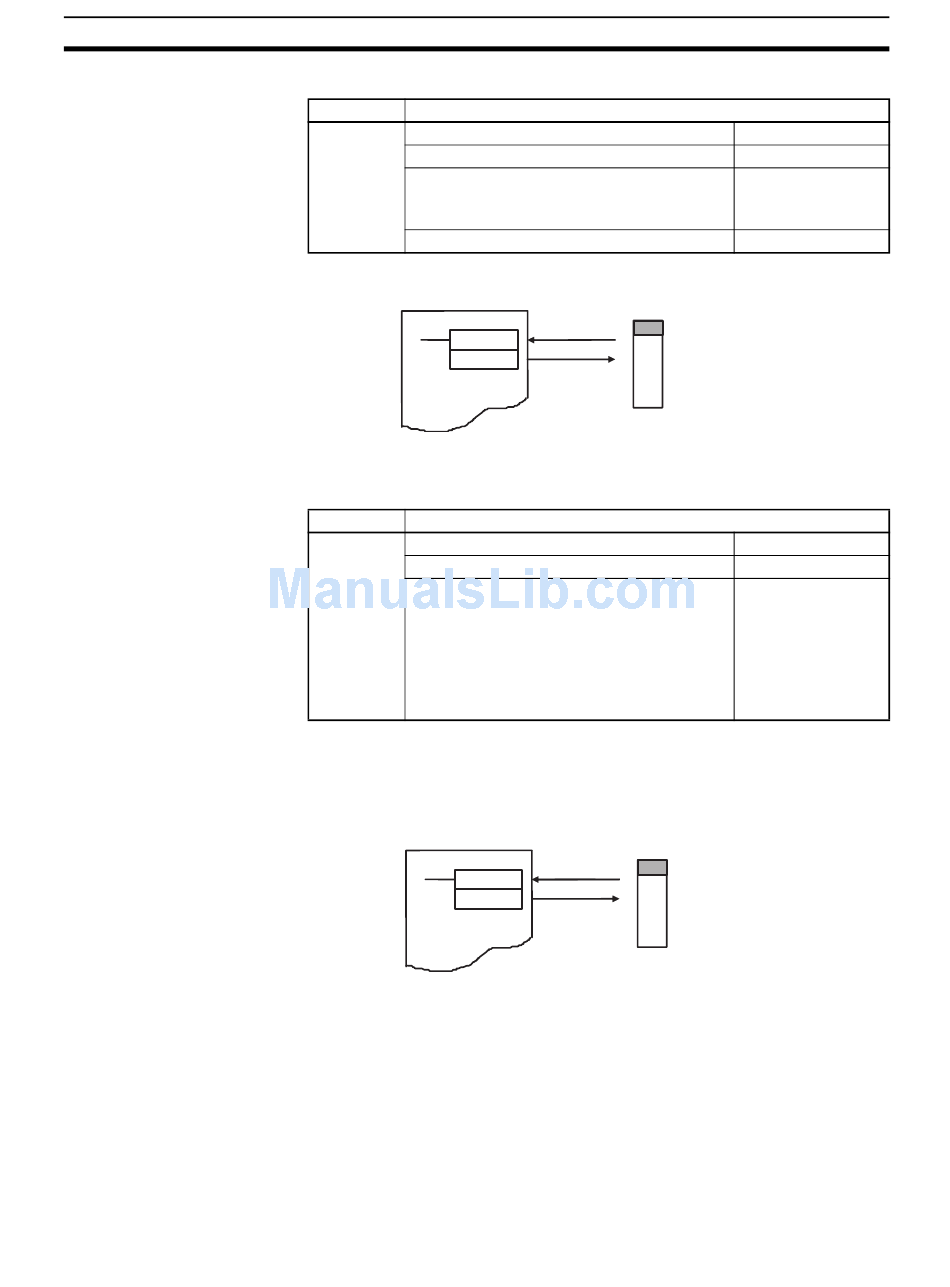

Units Refreshed by FIORF(225)
Location CPU or Expansion I/O Rack (but not SYSMAC BUS Slave Racks)
Units Basic I/O Units
Special I/O Units
CPU Bus Units
Refreshes words allocated to the Unit in both
the CIO Area and DM Area.
CPU Bus Units
Note FIORF(225) is supported by the CJ1-H-R CPU Units only.
Units Refreshed by DLNK(226)
Location CPU or Expansion I/O Rack (but not SYSMAC BUS Slave Racks)
Units Basic I/O Units
Special I/O Units
CPU Bus Units
Refreshes the following data:
• Words allocated to the Unit in CIO Area
• Words allocated to the Unit in DM Area
• Data specific to the CPU Bus Unit, such
as data link data or DeviceNet Remote I/O
Communications data
Note DLNK(226) is not supported by the CS1G/H-CPU@@(-V1) and CJ1@-
CPU@@ CPU Units.
The maximum program capacities of the CS/CJ-series CPU Units for all user
programs (i.e., the total capacity of all tasks) are given in the following table.
All capacities are given as the maximum number of steps. The capacities
must not be exceeded, and writing the program will be disabled if an attempt
is made to exceed the capacity.
Each instruction is from 1 to 7 steps long. Refer to 10-5 Instruction Execution
Times and Number of Steps in the Operation Manual for the specific number
Refreshes all of the allocated
CIO and DM Area words.
FIORF
&13
Refreshes the allocated CIO
Area words, DM Area words,
and Unit-specific data.
DLNK
#F
Section 2-1
Not refreshed
Not refreshed
Refreshed
Not refreshed
Special I/O Unit
with unit number 13
Not refreshed
Not refreshed
Refreshed
CPU Bus Unit with
unit number F
43
