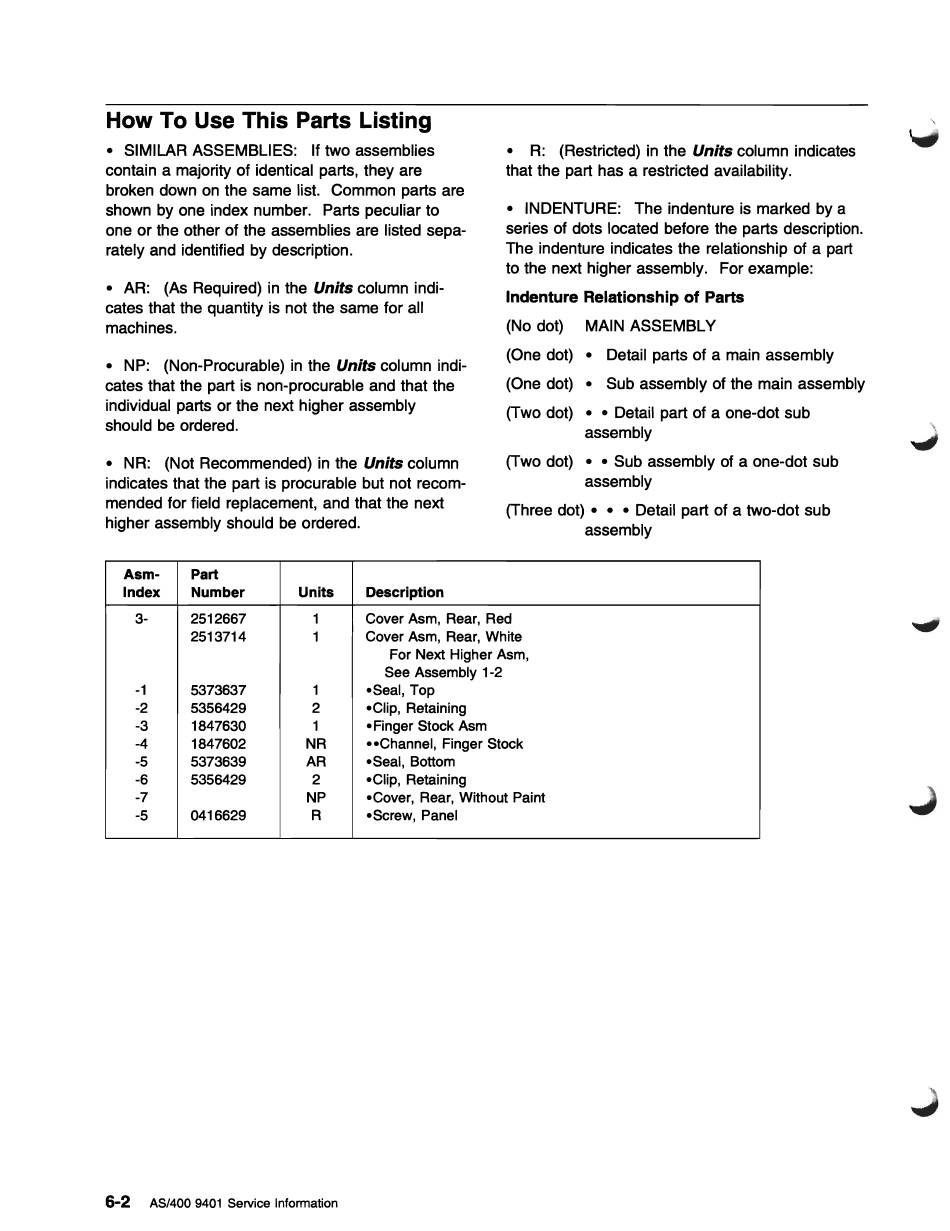

How To Use This Parts Listing
• SIMILAR ASSEMBLIES: If two assemblies
contain a majority of identical parts, they are
broken down on the same list. Common parts are
shown by one index number. Parts peculiar to
one or the other of the assemblies are listed sepa-
rately and identified by description.
• AR: (As Required) in the Units column indi-
cates that the quantity is not the same for all
machines.
• NP: (Non-Procurable) in the Units column indi-
cates that the part is non-procurable and that the
individual parts or the next higher assembly
should be ordered.
• NR: (Not Recommended) in the Units column
indicates that the part is procurable but not recom-
mended for field replacement, and that the next
higher assembly should be ordered.
Asm- Part
Index Number Units Description
• R: (Restricted) in the Units column indicates
that the part has a restricted availability.
• INDENTURE: The indenture is marked by a
series of dots located before the parts description.
The indenture indicates the relationship of a part
to the next higher assembly. For example:
Indenture Relationship of Parts
(No dot) MAIN ASSEMBLY
(One dot) • Detail parts of a main assembly
(One dot) • Sub assembly of the main assembly
(Two dot) • • Detail part of a one-dot sub
assembly
(Two dot) • • Sub assembly of a one-dot sub
assembly
(Three dot) • • • Detail part of a two-dot sub
assembly
3-
2512667 1
Cover Asm, Rear, Red
2513714 1 Cover Asm, Rear, White
For Next Higher Asm,
See Assembly 1-2
-1 5373637 1 ·Seal, Top
-2 5356429 2 .Clip, Retaining
-3 1847630 1 -Finger Stock Asm
-4
1847602 NR "Channel, Finger Stock
-5
5373639 AR -Seal, Bottom
-6 5356429 2 -Clip, Retaining
-7 NP -Cover, Rear, Without Paint
-5 0416629 R -Screw, Panel
6-2
