- Page 1 ANIUSB-Matrix Audio Network Interface Complete user guide for the ANIUSB-MATRIX. Includes system diagrams, specifications, installation instructions, command strings, and more. Version: 8.1 (2024-C)
-
Page 2: Table Of Contents
Change IP Settings Rack Ear Configuration Setting Latency Installing Underneath a Table IP Ports and Protocols Connections and Signal Flow Using Command Strings Connecting the ANIUSB-MATRIX to a Computer USB Device Type Settings Reset Software Reset Options Mute Sync Troubleshooting Audio Settings... -
Page 3: Aniusb-Matrix Audio Network Interface
Getting Started Videoconferencing Room Equipment Your ANIUSB-MATRIX is one part of a complete room system for videoconferencing. It's helpful to think about all the parts of your room system as you get started setting up the ANIUSB-MATRIX. Medium room equipment example A standard room includes some or all of this equipment: •... -
Page 4: Aniusb-Matrix Designer Setup Example
Shure Designer software (download at shure.com/designer) • MXA902 • Computer with videoconferencing software For best results, route 1 microphone to the ANIUSB-MATRIX. If using multiple microphones in a space, use a device with an ® automixer (such as a P300 IntelliMix Room... - Page 5 Select Auto route. Designer makes the following routes: ◦ MXA902 to ANIUSB-MATRIX ◦ ANIUSB-MATRIX USB output to computer with videoconferencing software ◦ ANIUSB-MATRIX Dante output to MXA902 Dante input (loudspeaker) You can also route audio manually in Designer or use Dante Controller.
-
Page 6: Aniusb-Matrix Parts

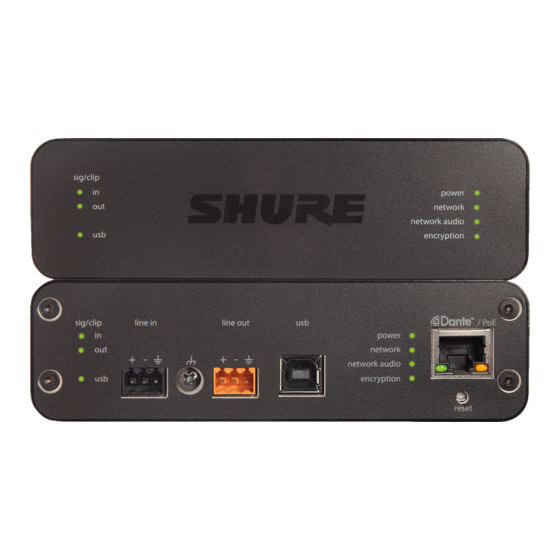

ANIUSB-MATRIX Parts The LEDs on the front of the ANIUSB-MATRIX behave the same as the ones on the back of the device. Sig/clip level indicators Tricolor LEDs indicate the audio signal level for the analog channels and connectivity status for the USB channel. Ad... - Page 7 Provides an optional connection for microphone shield wire to chassis ground. Audio output (block connector) Balanced audio output connects to an analog device. Set the output level in Shure Designer software to match the input sensitivity of the analog device.
-
Page 8: Power Over Ethernet (Poe)
To identify devices, select a device and click ID in the Properties menu. Double-click the device to open the settings. From here, you can add devices to designs or online rooms and route audio to other Shure devices. Learn more at shure.com/... -
Page 9: Installation And Rack Mounting
Shure Incorporated The settings are optimized for your particular combination of devices. You can adjust settings further, but auto route gives you a good starting point. Auto route works with any device in Designer. To use auto route: Place all relevant devices in a design. -
Page 10: Rack Ear Configuration
Shure Incorporated Align the holes as shown for securing up to 3 devices in the 19" rack tray. Rack Ear Configuration A combination of up to 3 Audio Network Interfaces can be mounted in a single 19-inch rack space. The adjustable rack ears support mounting in a standard equipment rack or underneath a table. -
Page 11: Installing Underneath A Table
Install with 4 screws to secure the tray underneath the table. Connections and Signal Flow The ANIUSB-MATRIX has 4 Dante inputs and 2 Dante outputs. You can route any input to any output and adjust crosspoint gain using the matrix mixer. - Page 12 4. Dante-enabled microphone A Dante microphone (such as a Shure Microflex Advance array) connects to the network switch. Route the microphone's signal to the ANIUSB-MATRIX, and then use the matrix mixer to route the signal to the USB output. 5. Control computer A computer connected to the network accesses Shure Designer to control the channel levels and processing.
-
Page 13: Connecting The Aniusb-Matrix To A Computer
Connect the ANIUSB-MATRIX to a computer with conferencing software using the USB port. When the ANIUSB-MATRIX is connected for the first time, the computer recognizes it as a USB audio device. You may need to select it as the input/output (recording/playback) device to pass audio. Assign the ANIUSBMATRIX as the default device to en... -
Page 14: Mute Sync
Shure devices use logic and mute sync to make this happen. • Logic: Aligns mute status across Shure devices in the room. The processor (such as a P300, IntelliMix Room software, or an ANIUSB-MATRIX) is the controller. -
Page 15: Audio Settings
Shure Incorporated ◦ MX395-LED ◦ MX396 ◦ MX405/410/415 For help with specific mute sync implementations, see our FAQs. Audio Settings Schematic View The schematic view in Designer provides an overview of the entire audio signal chain, with the ability to adjust settings and monitor signals. -
Page 16: Mute And Fader Groups
Adjusting Input levels Levels for analog and Dante channels are adjustable in the Input tab. To monitor input levels before they reach the ANIUSB-MATRIX, set the metering to Pre-gain in the Settings menu. When ad justing the faders, set metering to Post-gain. - Page 17 Shure Incorporated Common equalizer applications: • Improve speech intelligibility • Reduce noise from HVAC systems or video projectors • Reduce room irregularities • Adjust frequency response for reinforcement systems Setting Filter Parameters Adjust filter settings by manipulating the icons in the frequency response graph, or by entering numeric values. Disable a filter using the checkbox next to the filter.
- Page 18 Shure Incorporated Copy and Paste Equalizer Channel Settings Use to quickly apply the same PEQ setting across multiple channels. Select the PEQ of the desired channel. Click copy. Select the channel to apply the PEQ setting to and click paste.
-
Page 19: Custom Presets
Shure Incorporated EQ Application Suggested Settings Identify the specific frequency range that "excites" the room: Set a narrow Q value. Increase the gain to between +10 and +15 dB, and then experiment with frequencies between 1 kHz and Reduce flutter echoes and sibilance 6 kHz to pinpoint the range of flutter echoes or sibi... -
Page 20: Crosspoint Gain
Designer room. To use call status: Put all microphones and processors (ANIUSB-MATRIX, IntelliMix Room, or P300) in the same Designer room. Select Auto route to create audio and mute control routes. You can also route audio manually. -
Page 21: Encryption
Select Shure devices support the IEEE 802.1X port access protocol for network authentication. Important: To use the 802.1X security protocol with Shure devices, set the network switch to multiple host authentication. You must also make accommodations to allow the audio network interface to connect to the network. The audio network interface doesn't support the 802.1X protocol. -
Page 22: Turn Off Or Clear 802.1X Settings
Shure Incorporated Step 1: Configure Settings on Test Network Connect the device to your test network and discover it using Designer. Initialize the device if necessary. Open the device and go to Settings > Network > 802.1X. Choose your EAP method from the menu. -
Page 23: Networking And Dante
FAQ about switches to avoid. Dante Flows for Shure Devices Dante flows get created any time you route audio from one Dante device to another. One Dante flow can contain up to 4 audio channels. For example: sending all 5 available channels from an MXA310 to another device uses 2 Dante flows, because 1 flow can contain up to 4 channels. -
Page 24: Pushing Names To The Dante Network
Change IP Settings You can change IP configurations in Shure Designer. By default, they are set to Automatic (DHCP). DHCP enables a device to accept IP settings from a DHCP server, or automatically fall back to linklocal settings when no DHCP is available. IP address... -
Page 25: Ip Ports And Protocols
Required for inter-device communication Open 64000 Telnet Required for Shure firmware update Open *These ports must be open on the PC or control system to access the device through a firewall. † These protocols require multicast. Ensure multicast has been correctly configured for your network. -
Page 26: Using Command Strings
There are two hardware reset functions: Network reset (press button for 4-8 seconds) Resets all Shure control and audio network IP settings to factory defaults Full factory reset (press button for longer than 8 seconds) Restores all network and Designer settings to the factory defaults. -
Page 27: Event Log
The export feature creates a CSV (comma separated values) file to save and sort the log data. Refer to the log file for details when troubleshooting or when working with Shure support. To view the event log: Open the device's web application. -
Page 28: Specifications
Shure Incorporated Warning An action cannot be complete, but overall functionality is stable Error A problem has occurred that could inhibit functionality. Log Details Description Provides details on events and errors, including IP address and subnet mask. Time Stamp Power cycles:days:hours:minutes:seconds since most recent boot-up. - Page 29 Shure Incorporated Dimensions H x W x D 4 x 14 x 12.8 cm ( 1.6 x 5.5 x 5.0 in.) Control Software Shure Designer Operating Temperature Range −6.7°C (20°F) to 40°C (104°F) Storage Temperature Range −29°C (20°F) to 74°C (165°F)
-
Page 30: Optional Accessories And Replacement Parts
Shure Incorporated Line 86 dBV 98 dBV Total Harmonic Distortion @ 1 kHz, 0 dBV Input, 0 dB analog gain <0.05% Common Mode Rejection Ratio 150Ω balanced source @ 1 kHz >70 dB Impedance 10.6 kΩ Input Clipping Level Line... -
Page 31: Important Product Information
Shure Incorporated HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer’s instructions. -
Page 32: Information To The User
This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking. The CE Declaration of Conformity can be obtained from Shure Incorporated or any of its European representatives. For contact information please visit www.shure.com...
