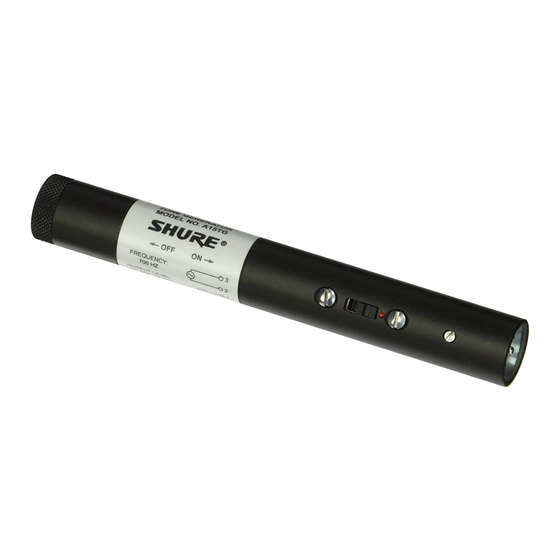

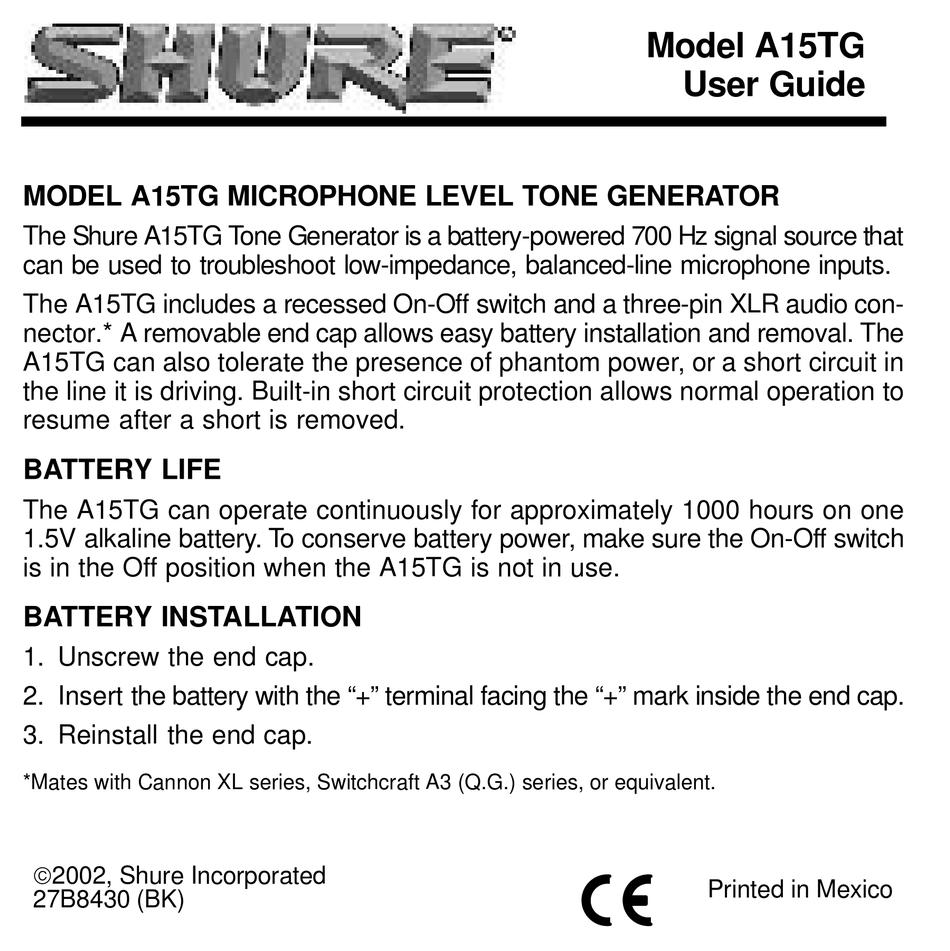

MODEL A15TG MICROPHONE LEVEL TONE GENERATOR
The Shure A15TG Tone Generator is a battery-powered 700 Hz signal source that
can be used to troubleshoot low-impedance, balanced-line microphone inputs.
The A15TG includes a recessed On-Off switch and a three-pin XLR audio con-
nector.* A removable end cap allows easy battery installation and removal. The
A15TG can also tolerate the presence of phantom power, or a short circuit in
the line it is driving. Built-in short circuit protection allows normal operation to
resume after a short is removed.
BATTERY LIFE
The A15TG can operate continuously for approximately 1000 hours on one
1.5V alkaline battery. To conserve battery power, make sure the On-Off switch
is in the Off position when the A15TG is not in use.
BATTERY INSTALLATION
1. Unscrew the end cap.
2. Insert the battery with the "+" terminal facing the "+" mark inside the end cap.
3. Reinstall the end cap.
*Mates with Cannon XL series, Switchcraft A3 (Q.G.) series, or equivalent.
2002, Shure Incorporated
27B8430 (BK)
Model A15TG
User Guide
Printed in Mexico
Advertisement
Related Manuals for Shure Microphone Level Tone Generator A15TG
Summary of Contents for Shure Microphone Level Tone Generator A15TG
- Page 1 MODEL A15TG MICROPHONE LEVEL TONE GENERATOR The Shure A15TG Tone Generator is a battery-powered 700 Hz signal source that can be used to troubleshoot low-impedance, balanced-line microphone inputs. The A15TG includes a recessed On-Off switch and a three-pin XLR audio con- nector.* A removable end cap allows easy battery installation and removal.
- Page 2 SPECIFICATIONS Output Frequency 700 Hz ±20%, when terminated with 150 Ω Output Level –41.5 ±4.5 dBV (8.4 mV typical) when terminated with 150 Ω Total Harmonic Distortion 5% typical for any output termination greater than or equal to 150 Ω Output Impedance <15 Ω...
- Page 3 FULL TWO YEAR WARRANTY Shure warrants this product to be free in normal use of any defects in workman- ship and materials for two (2) years from the date of purchase. If your Shure product fails within this period, call 1–800–516–2525 in the United States for details on repair, replacement, or refund.
- Page 4 SHURE Incorporated Web Address: http://www.shure.com 5800 W. Touhy Avenue, Niles, IL 60714–4608, U.S.A. Phone: 800-257–4873 Fax: 847-866-2279 In Europe, Phone: 49-7131-72140 Fax: 49-7131-721414 In Asia, Phone: 852-2893-4290 Fax: 852-2893-4055 Elsewhere, Phone: 847-866–2200 Fax: 847-866-2585...
