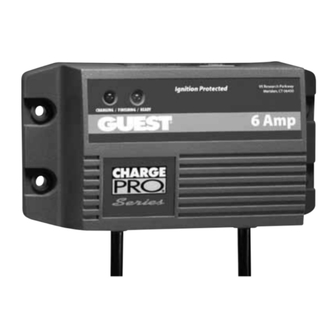

6 AMP AUTOMOTIVE BATTERY CHARGERS
E227501
Connections at a glance:
The 2608A-B-01 is designed to be used as a charger for lead acid batteries (flooded
cell or AGM types) and gel cell batteries. We recommend that you set up the charger
near the battery you wish to charge, and make connections in the following order:
1. Charger POS (Red / White wire with fuse) to battery "+".
2. Charger NEG (black wire) to battery "-"
3. Plug AC line cord into a GFCI protected wall socket.
4. Remove connections in the reverse order.
Model 2608A-B-01
OWNER'S MANUAL
SAVE THESE INSTRUCTIONS
R
Advertisement
Related Manuals for Guest 2608A-B-01
Summary of Contents for Guest 2608A-B-01
- Page 1 E227501 Connections at a glance: The 2608A-B-01 is designed to be used as a charger for lead acid batteries (flooded cell or AGM types) and gel cell batteries. We recommend that you set up the charger near the battery you wish to charge, and make connections in the following order: 1.
- Page 2 Read the entire manual before using. Also read all instructions and cautions for and on the charger, batteries and equipment in the vicinity of the batteries. 2. Use of an attachment not recommended or sold by Guest may result in a risk of fire, electric shock, or injury to persons.
- Page 3 WARNINGS THIS CHARGER SHOULD BE USED TO CHARGE ONLY 12 VOLT DC LEAD ACID OR GEL CELL TYPE BATTERIES. USE ON OTHER BATTERY TYPES MAY EXPLODE AND CAUSE PERSONAL INJURY. RISK OF EXPLOSIVE GASES! WORKING IN THE VICINITY OF LEAD ACID BATTERIES IS DANGEROUS.
- Page 4 Preparing to Charge Precautions Before charging a battery with the charger, read the following precautions: Do NOT operate the charger if the cables or an LED is damaged. If the battery or batteries must be removed from the product, always remove the grounded terminal from the battery first.
- Page 5 3. INSTALLING THE CHARGER Choosing Charging Location The charger should have at least eight inches of unobstructed area on all sides of the unit for effective cooling. The case of this charger will become warm during operation. Do not install the charger on carpeted, upholstered, varnished surfaces, directly above or below the battery.
- Page 6 If the red LED stays on for more than 24 hours, refer to Problem 1 in the troubleshooting section in this manual. When both the green and the red LED’s are on, the 2608A-B-01 is charging at a "Midrange" rate and the current is between 2 to 5.5amp. This mode of charging gradually “tops off “...
- Page 7 AC breaker on the main panel when the AC 2. Component failure 2. Return charger to the Guest power is applied. Service Dept. 6. MAINTAINING THE CHARGER Periodically clean both battery terminals with baking soda and tighten all connections.
- Page 8 LIMITED WARRANTY For two (2) years from the date of original purchase, The Guest Co. will, at its discretion, repair or replace for the original consumer, free of charge, any parts found defective in material or workmanship. All transportation charges under this warranty must be borne by the consumer.
