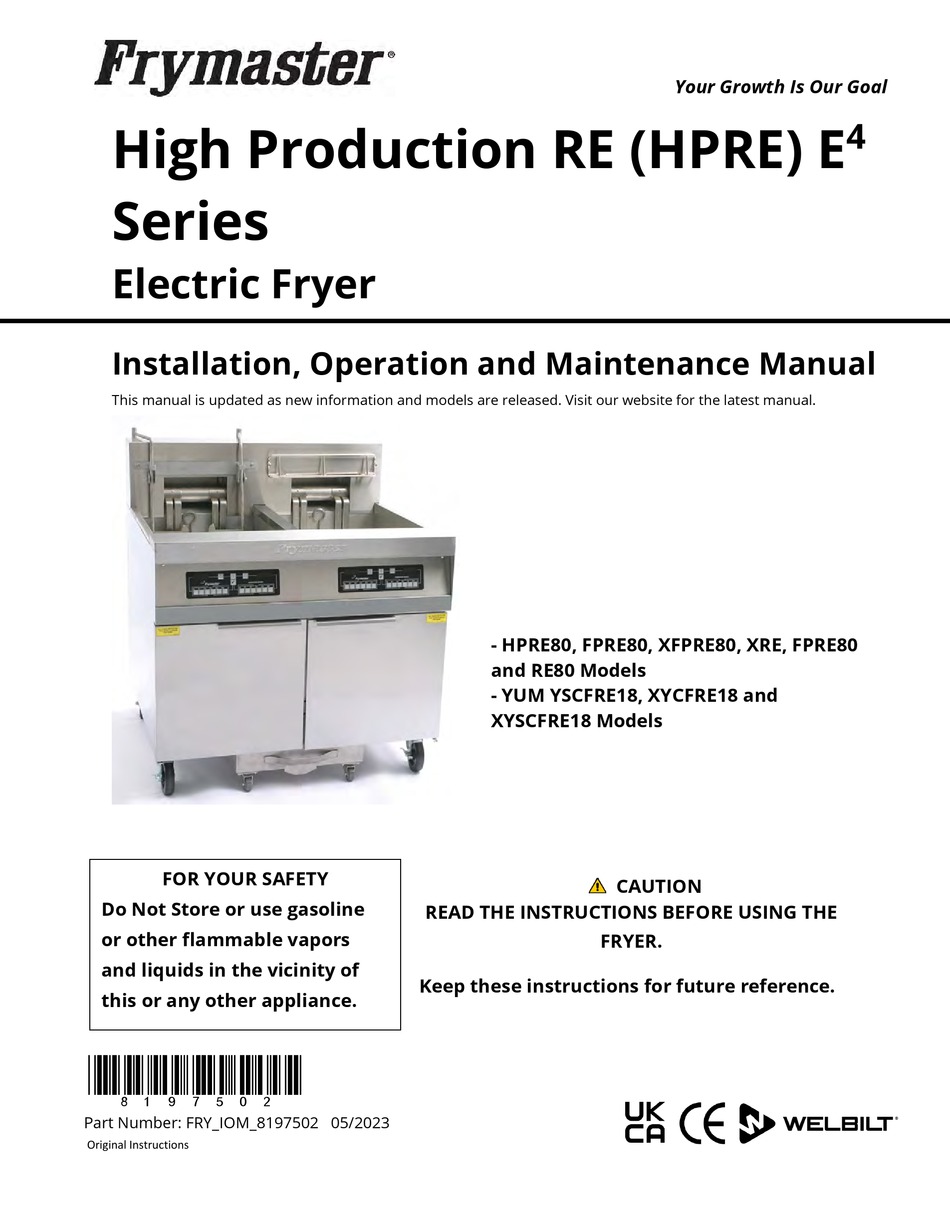

High Production RE (HPRE) E
Series
Electric Fryer
Installation, Operation and Maintenance Manual
This manual is updated as new information and models are released. Visit our website for the latest manual.
FOR YOUR SAFETY
Do Not Store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.
*8197502*
Part Number: FRY_IOM_8197502 05/2023
Original Instructions

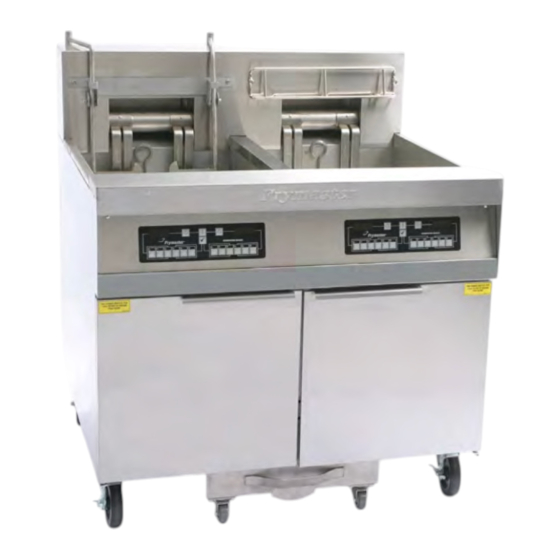

- HPRE80, FPRE80, XFPRE80, XRE, FPRE80
and RE80 Models
- YUM YSCFRE18, XYCFRE18 and
XYSCFRE18 Models
READ THE INSTRUCTIONS BEFORE USING THE
Keep these instructions for future reference.
Your Growth Is Our Goal
CAUTION
FRYER.
4
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Frymaster HPRE80
Summary of Contents for Frymaster HPRE80
- Page 1 Electric Fryer Installation, Operation and Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. - HPRE80, FPRE80, XFPRE80, XRE, FPRE80 and RE80 Models - YUM YSCFRE18, XYCFRE18 and XYSCFRE18 Models...
- Page 2 NOTICE IF, DURING THE WARRANTY PERIOD, THE CUSTOMER USES A PART FOR THIS FRYMASTER DEAN EQUIPMENT OTHER THAN AN UNMODIFIED NEW OR RECYCLED PART PURCHASED DIRECTLY FROM FRYMASTER DEAN OR ANY OF ITS FACTORY AUTHORIZED SERVICERS, AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS WARRANTY WILL BE VOID.
- Page 3 DANGER This fryer has a power cord (three-phase) for each frypot. Prior to movement, testing, maintenance and any repair on your Frymaster fryer; disconnect ALL electrical power cords from the electrical power supply. WARNING This appliance is not intended for use by children under the age of 16 or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision concerning use of the appliance by a person responsible for their safety.
- Page 4 Do not use water jets to clean this equipment. WARNING If the electrical power supply cord is damaged, it must be replaced by a Frymaster Factory Authorized Servicer or a similarly qualified person in order to avoid a hazard. WARNING...
- Page 5 WARNING Use caution when dropping large amounts of food into the hot oil. It may cause large amounts of foaming, which can overflow and may cause burns. WARNING Opening the drain valve will lead to the outflow of the hot contents of the fryer that can cause injury.
-
Page 6: Table Of Contents
TABLE OF CONTENTS Page # INTRODUCTION General Safety Information Computer Information Shipping Damage Claim Procedure Service Information After Purchase Service Personnel INSTALLATION INSTRUCTIONS General Fryer Installation Electrical Connections Power Requirements Frypot Boil-Out Equipment Setup and Shutdown Procedures PREVENTATIVE MAINTENANCE Cleaning Fryer Periodic/Annual Maintenance Stainless Steel Care UNDER-FRYER-FILTER (UFF) FILTRATION... -
Page 7: Introduction
HIGH PRODUCTION RE (HPRE) E SERIES ELECTRIC FRYERS CHAPTER 1: INTRODUCTION 1.1 General Read the instructions in this manual thoroughly before attempting to operate this equipment. This manual covers all High Production RE (HPRE) E Series electric fryers. High Production RE (HPRE) E Series electric fryers feature easy to clean, open frypots with rotating elements. -
Page 8: Computer Information
HIGH PRODUCTION RE (HPRE) E SERIES ELECTRIC FRYERS CHAPTER 1: INTRODUCTION 1.3 Computer Information This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. While this device is a verified Class A device, it has been shown to meet the Class B limits. -
Page 9: Service Information
Serial Number _________________________ Voltage _______________________________ Nature of the Problem ___________________ _____________________________________ _____________________________________ 1.6 After Purchase In order to improve service, have the following chart filled in by the Frymaster Dean Authorized Servicer who installed this equipment. Authorized Servicer Technician/FAS Address Telephone/Fax... -
Page 10: Service Personnel
Frymaster equipment. A list of Frymaster Factory Authorized Servicers (FAS’s) is located on the Frymaster website at www.frymaster.com. -
Page 11: Installation Instructions
HIGH PRODUCTION RE (HPRE) E SERIES ELECTRIC FRYERS CHAPTER 2: INSTALLATION INSTRUCTIONS FINDING YOUR WAY AROUND THE HIGH PRODUCTION RE (HPRE) E SERIES ELECTRIC FRYER Basket Lift Basket Hanger Tilt Housing Element Lift Rod Top Cap Computer Panel (CM3.5 Computer shown) Power Switch Fuses... -
Page 12: General
Section 1.7 of this manual) to install or otherwise service this equipment will void the Frymaster warranty and may result in damage to the equipment or injury to personnel. Where conflicts exist between instructions and information in this manual and local or national codes or regulations, installation and operation shall comply with the codes or regulations in force in the country in which the equipment is installed. - Page 13 SERIES ELECTRIC FRYERS CHAPTER 2: INSTALLATION INSTRUCTIONS NOTICE If the electrical power supply cord is damaged, it must be replaced by a Frymaster Factory Authorized Servicer technician or a similarly qualified person in order to avoid a hazard. DANGER This appliance must be connected to a power supply having the same voltage and phase as specified on the rating plate located on the inside of the appliance door.
-
Page 14: Fryer Installation
2.2 Fryer Installation WARNING Frymaster fryers equipped with legs are for permanent installations. Fryers fitted with legs must be lifted during movement to avoid damage and possible bodily injury. For a moveable or portable installation, Frymaster optional equipment casters must be used. Questions? - Page 15 HIGH PRODUCTION RE (HPRE) E SERIES ELECTRIC FRYERS CHAPTER 2: INSTALLATION INSTRUCTIONS The fryer arrives on separate pallets. Remove the units from the pallets and align the cabinets, which must be attached or connected at the positions shown above and on the adjoining page. 1.
-
Page 16: Electrical Connections
Adequate means must be provided to limit the movement of this appliance without depending on or transmitting stress to the electrical conduit. A restraint kit (part number 826-0900) is provided with the fryer. If the restraint kit is missing contact your local Frymaster Factory Authorized Servicer (FAS). -
Page 17: Power Requirements
HIGH PRODUCTION RE (HPRE) E SERIES ELECTRIC FRYERS CHAPTER 2: INSTALLATION INSTRUCTIONS FRONT OF FRYER Anchor Strap or Chain Restraint Secure Strap or Restraint to floor with appropriate fastener. NOTE: Bent link on Chain Retstraint goes to floor. Leg or Caster Mounting Bolt 2. -
Page 18: Frypot Boil-Out
HIGH PRODUCTION RE (HPRE) E SERIES ELECTRIC FRYERS CHAPTER 2: INSTALLATION INSTRUCTIONS 2.5 Frypot Boil Out Before the fryer is first used for cooking, it should be boiled out to ensure that residue from the manufacturing process is eliminated. Also, after the fryer has been in use for a period of time, a hard film of caramelized oil will form inside the frypot. -
Page 19: Equipment Setup And Shutdown Procedures
HIGH PRODUCTION RE (HPRE) E SERIES ELECTRIC FRYERS CHAPTER 2: INSTALLATION INSTRUCTIONS 2.6 Equipment Setup and Shutdown Procedures WARNING Fill the frypot to the bottom OIL LEVEL line with oil before pressing the ON/OFF switch to the "ON" position. Failure to do so could damage the frypot and elements. -
Page 20: Preventative Maintenance
HIGH PRODUCTION RE (HPRE) E SERIES ELECTRIC FRYERS CHAPTER 3: PREVENTATIVE MAINTENANCE 3.1 Cleaning Fryer 3.1.1 Clean Inside and Outside of Fryer Cabinet— Daily 1. Clean inside the fryer cabinet with a dry, clean cloth. Wipe all accessible metal surfaces and components to remove accumulated oil and dust. - Page 21 2. Position a metal container under the drainpipe. The metal container must be able to withstand the heat of the oil and have a sealing lid. If you intend to reuse the oil, Frymaster recommends that a Frymaster filter cone holder and filter cone be used when a filter machine is not available.
- Page 22 HIGH PRODUCITON RE (HPRE) E SERIES ELECTRIC FRYERS CHAPTER 3: PREVENTATIVE MAINTENANCE DANGER DO NOT insert anything into the drain from the front to unclog the valve. Hot oil will rush out, creating an extreme hazard. WARNING DO NOT hammer on the drain valve with the Fryer’s Friend. This will damage the drain valve ball and prevent the valve from sealing securely, resulting in a leaky valve.
-
Page 23: Periodic/Annual Maintenance
CHAPTER 3: PREVENTATIVE MAINTENANCE 3.2 Periodic/Annual Maintenance Frymaster recommends that the fryer be inspected annually by a Factory Authorized Servicer for the following checks and adjustments: • Inspect the cabinet inside and out, front and rear for excessive oil build-up. -
Page 24: Stainless Steel Care
HIGH PRODUCITON RE (HPRE) E SERIES ELECTRIC FRYERS CHAPTER 3: PREVENTATIVE MAINTENANCE • Check filtration system integrity as follows: − With the filter pan empty, place each oil return handle, one at a time, in the ON position. Verify that the pump activates and that bubbles appear in the oil of the associated frypot. −... - Page 25 HIGH PRODUCTION RE (HPRE) E SERIES ELECTRIC FRYERS CHAPTER 4: BUILT-IN FILTRATION 4.1 Filtration Preparation On initial installation and before each use, remove all loose parts from the filter, wash the filter pan and all accessories in hot, soapy water and dry thoroughly. 4.1.1 Assembling the Filter The filter pan uses filter paper held in place by a hold-down ring to filter impurities and debris from the cooking medium.
-
Page 26: Daily Filtration Operation
HIGH PRODUCTION RE (HPRE) E SERIES ELECTRIC FRYERS CHAPTER 4: BUILT-IN FILTRATION 4.2 Daily Filtration Operation 4.2.1 General Overview WARNING Use caution and wear proper The filter pump is turned on only after the oil is brought protective clothing. The oil to to operating temperature and drained into the prepared be filtered is at or near 350°F filter pan. -
Page 27: Operating The Filter
HIGH PRODUCTION RE (HPRE) E SERIES ELECTRIC FRYERS CHAPTER 4: BUILT-IN FILTRATION 4.3 Operating the Filter Pull the filter pan outward until the slip fitting disconnects. Allow any residual oil left in the fittings to drip into the pan. Remove the filter pan from fryer cabinet. - Page 28 HIGH PRODUCTION RE (HPRE) E SERIES ELECTRIC FRYERS CHAPTER 4: BUILT-IN FILTRATION Filter valve Drain valve Filtration Ensure the filter pan is Note: Always wear prepared for filtration. oil-resistant, insu- Ensure the fryer is at lated gloves and/or operating temperature protective gear when and turn it off and fol- working with hot oil.
- Page 29 HIGH PRODUCTION RE (HPRE) E SERIES ELECTRIC FRYERS CHAPTER 4: BUILT-IN FILTRATION Using the Wand/Disposal System Larger systems can be optionally equipped with a disposal hose. Follow these steps to use the hose. Connect the disposal wand hose With oil in the filter pan and the filter pump off, connect the to the quick disconnect on front hose to the quick disconnect on the front of the fryer.
-
Page 30: Operator Troubleshooting
Although the chapter covers the most common problems reported, you may encounter problems that are not covered. In such instances, the Frymaster Technical Services staff will make every effort to help you identify and resolve the problem. -
Page 31: Troubleshooting
HIGH PRODUCTION RE (HPRE) E SERIES ELECTRIC FRYERS CHAPTER 5: OPERATOR TROUBLESHOOTING 5.2 Troubleshooting 5.2.1 Control and Heating Problems Problem Probable Causes Corrective Action A. Power cord is not plugged in or circuit A. Plug power cord in and verify that breaker is tripped. - Page 32 HIGH PRODUCTION RE (HPRE) E SERIES ELECTRIC FRYERS CHAPTER 5: OPERATOR TROUBLESHOOTING 5.2.2 Error Messages and Display Problems Problem Probable Causes Corrective Action Display is in wrong Refer to the coontroller manual that temperature scale shipped with the fryer for instructions Incorrect display option programmed.
- Page 33 Problem with the temperature measuring displays circuitry including the probe. CM4-S, K3000 and KFC-1 display shows PROBE FAILURE. Refer to the separate Frymaster Fryer CM III.5 frypot Computer is programmed for constant Controllers User's Manual for temperature is temperature display.
-
Page 34: Recommended Spare Parts
HIGH PRODUCTION RE (HPRE) E SERIES ELECTRIC FRYERS CHAPTER 5: OPERATOR TROUBLESHOOTING Recommended Spare Parts Below is a list of recommended spare parts for the HPRE E Series Electric Fryers. ELEMENTS: Determine what elements are required and order from the list below. Part Number Description 807-4656... - Page 35 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 36 , kitchen systems; and KitchenConnect , cloud-based open ® ® platform. Bringing innovation to the table · welbilt.com ©2023 Frymaster LLC. except where explicitly stated otherwise. All rights reserved. Continuing product improvement may necessitate change of specifications without notice. Part Number FRY_IOM_8197502F 05/2023...
