Back Panel In Depth

This section covers all the features on your Scarlett 2i2's back panel, what they do, how you
might use them and how they work in Focusrite Control 2.

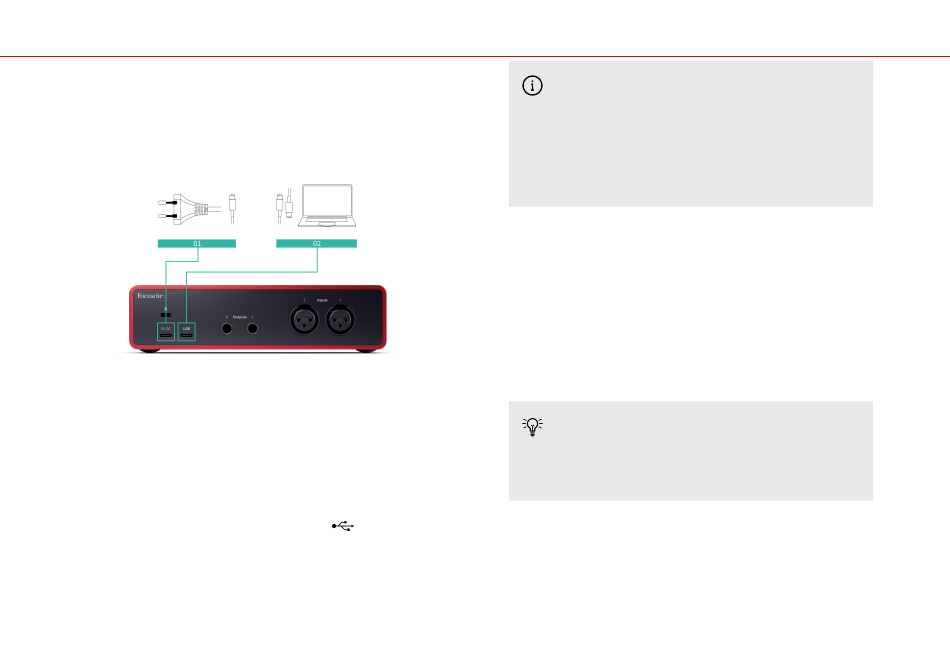

USB Connections

USB Port
The USB Type-C port labelled USB is to connect your Scarlett to your computer.U
The connection to your computer provides USB power, two-way audio communication, and a
connection to Focusrite Control 2.
5V DC Port
With most computers, you won't need to use the 5V DC port. However, if your computer's USB
ports can't provide 900mA, we've included a 5V DC port so your Scarlett can be powered from the
mains using a USB PSU.
The Scarlett 2i2 consumes a large amount of power. In some high-power situations, such as
playing headphones at a high volume, some computers' USB ports may not be able to provide
enough power and your Scarlett 2i2 may disconnect or the USB icon
If you experience this behaviour, we recommend you use a mains PSU to power your Scarlett via
the 5V DC port.
Scarlett 2i2 4th Gen Studio Pack User Guide

Speaker Outputs

Outputs L and R are line-level outputs to connect your Scarlett 2i2 to an amplifier or active
monitors. The outputs are balanced 1/4" TRS jack outputs, you can use them with either
unbalanced TS or balanced TRS jack cables.
Your Scarlett 2i2's front panel Output dial controls the level sent to Outputs L and R.

Microphone Inputs

The 3-pin XLR connector Input is at microphone level and designed for you to connect your
microphones.
You can control your microphone level using the corresponding input gain control on the front
panel. 48V phantom power is also available if you are using a condenser mic, you can enable
phantom power using the front panel 48V button.
flashes red.
22
The USB Icon Flashes Red
If the USB icon flashes red this means your Scarlett 2i2 isn't getting enough power.
To resolve this issue:
• Make sure you are using the original USB cable provided with your Scarlett.
• Test a different USB port on your computer, make sure you're connecting
directly to your computer and not via a USB hub.
• If needed use the second 5V DC port on the back of the Scarlett 2i2. Connect a
second USB cable from a separate USB PSU. Make sure you don't connect the
power adaptor while you're playing audio.
Tip
The Scarlett 2i2 has XLR inputs at the back for microphones and 6.35mm (1/4") jack
inputs on the front for instruments or line-level devices.
Using the front panel jack input(s) disables the XLR mic input. If you're not getting
sound from your XLR input(s), ensure nothing is connected to the front panel jack
inputs.
