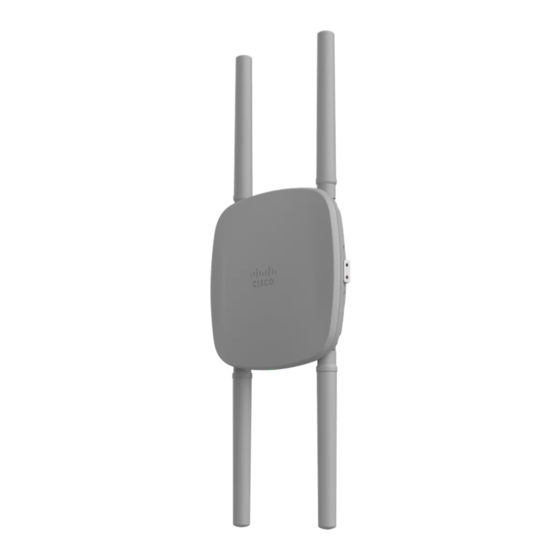

Cisco Catalyst Wireless 9163E Access Point Hardware Installation and
Deployment Guide
First Published: 2024-01-19
Americas Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: 408 526-4000
800 553-NETS (6387)
Fax: 408 527-0883

Advertisement

Table of Contents
loading

Related Manuals for Cisco Catalyst Wireless 9163E

Summary of Contents for Cisco Catalyst Wireless 9163E

  • Page 1 Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide First Published: 2024-01-19 Americas Headquarters Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 http://www.cisco.com Tel: 408 526-4000 800 553-NETS (6387) Fax: 408 527-0883...
  • Page 2 Cisco has more than 200 offices worldwide. Addresses and phone numbers are listed on the Cisco website at www.cisco.com/go/offices. Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: https://www.cisco.com/c/en/us/about/legal/trademarks.html.

  • Page 3: Table Of Contents

    Supported External Antennas Power Sources Power Injectors Ethernet (PoE) Ports C H A P T E R 3 Installing the Access Point Unpacking the Package Package Contents Unpacking the Access Point Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...
  • Page 4 Checking the Access Point LEDs Management Mode Migration C H A P T E R 5 Network Deployment Cisco On-Premises Deployment Initializing an Access Point Associating an Access Point with a Controller Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...
  • Page 5 Operation of Cisco Catalyst Access Points in México VCCI Statement for Japan Guidelines for Operating Cisco Catalyst Access Points in Japan Statement 371—Power Cable and AC Adapter Compliance Statement for Canada Industry Canada Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...
  • Page 6 This Device Meets the Industry Canada Guidelines for Exposure to Radio Waves Cet appareil est conforme aux directives internationales en matière d'exposition aux fréquences radioélectriques Additional Information on RF Exposure Declaration of Conformity Statements Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 7: Preface

    Communications, Services, and Additional Information, on page viii About this Guide This guide provides instructions to install your Cisco Access Point and provides links to resources that can help you configure it. This guide also provides mounting instructions and troubleshooting information.

  • Page 8: Related Documentation

    Preface Related Documentation Related Documentation All user documentation for the Cisco Catalyst 9163E Series Access Points is available at the following URL: https://www.cisco.com/c/en/us/support/wireless/catalyst-9163e-access-point/model.html For detailed information and guidelines for configuring and deploying your access point in a wireless network, see the following documentation: •...

  • Page 9: About Cisco Catalyst Wireless 9163E Access Point

    The AP hardware is supported on the following platforms: • Cisco Catalyst Center (formerly Cisco DNA Center) on-premises • Cisco Catalyst stack • Meraki cloud-based stack The Cisco Catalyst Wireless 9163E Access Point data sheet provides a full listing of the AP's features and specifications at: https://www.cisco.com/c/en/us/products/collateral/wireless/catalyst-9163e-access-point/ nb-06-cat-9163e-series-access-ds-cte-en.html Supported Wireless Controller Platforms The following Cisco Catalyst 9800 Wireless Controllers with Cisco IOS XE 17.13.1 or a later release software...

  • Page 10: Cisco Catalyst Wireless 9163E Access Point Features

    Cisco Catalyst Wireless 9163E Access Point Features Note This AP model does not support the Cisco Embedded Wireless Controller as an active EWC or a subordinate Cisco Catalyst Wireless 9163E Access Point Features Cisco Catalyst 9800 wireless controller-based products support Cisco Catalyst Wireless 9163E Access Points.
  • Page 11 • Spatial Reuse (also known as Basic Service Set [BSS] coloring) allows the AP and their clients to differentiate between BSS, thus permitting simultaneous transmissions. • Intelligent Capture probes the network and gives Cisco Catalyst Center in-depth analysis. The AP supports the following operational modes:...

  • Page 12: Ap Model Numbers And Regulatory Domains

    • CW-ANT-GPS2-S-00: An L1/L5 band GNSS optimizing antenna to enhance location precision for Standard Power AFC requirements. For more information about the supported antennas and the radio bands they operate at, see the Supported External Antennas section. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 13: Hardware Features

    Access Point Views, Ports, and Connectors Cisco Catalyst Wireless 9163E Series Outdoor AP has various externally accessible ports and connectors that you can use to install antennas on the AP. For information about connectors and ports for this AP, see...
  • Page 14 Figure 2: CW9163E Base Connectors and Ports Console Port If the port is not used, do not remove the covering plug. Otherwise, it might lead to water leaking into the AP. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 15: Supported External Antennas

    Supported External Antennas The CW9163E AP supports a combination of 2.4-GHz, 5-GHz, and 6-GHz SIA and non-SIA antennas, depending on the port they are installed on. The supported Cisco Antennas are: Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...
  • Page 16 Port C Supports 6-GHz band Supports 2.4-GHz and 5-GHz bands, Non-SIA Port A Port 5 Supports 6-GHz band, SIA L1/L5 Band Port D Supports 2.4-GHz and 5-GHz bands, SIA Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 17: Power Sources

    RF connectivity and compliance of third-party antennas is the user’s responsibility. Cisco does not recommend any third-party antennas, and the Cisco Technical Assistance Center will not be able to provide any support for third-party antennas. Cisco’s FCC Part 15 compliance is only guaranteed with Cisco antennas or antennas that are of the same design and gain as Cisco antennas.

  • Page 18: Power Injectors

    The Ethernet cable must be a shielded, outdoor rated, Category 5e (CAT 5e) or better cable. The AP senses the Ethernet and power signals and automatically switches internal circuitry to match the cable connections. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 19: Installing The Access Point

    CAT 6/6A cable, you need to use the AIR-ACC-CAT6= kit, which is an orderable accessory from Cisco. • Weatherization tape and anticorrosion sealant • Mounting straps • Cisco product documentation and pointer card Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 20: Unpacking The Access Point

    • MA-MNT-MR-16 Mounting bracket AIR-MNT-VERT1= mounting bracket, only if you have ordered this optional bracket along with the If any item is missing or damaged, contact your Cisco representative or reseller for instructions. Optional Tools and Hardware from Cisco Depending on what you ordered, the following optional equipment may be part of your shipment: •...

  • Page 21: Cisco Orderable Accessories

    37 W rated power injector MA-INJ-4 30 W rated single-port PoE injector This power injector is in End of Life (EoL) Note stage. MA-INJ-6 60 W rated PoE injector (802.3bt), mGig Ethernet Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 22: Preinstallation Checks And Installation Guidelines

    • Become familiar with the AP installation components. See Typical Access Point Installation Components, on page • Familiarize yourself with the best practices video series to install the Cisco outdoor wireless access points. https://www.cisco.com/c/en/us/td/docs/wireless/access_point/outdoor/video/ap-best-practices.html Typical Access Point Installation Components The Cisco Catalyst Wireless 9163E Series Outdoor is designed to be installed in an outdoor environment, such as the exterior roof overhang of a tall building or a streetlight pole.

  • Page 23: Preparing The Ap For Installation

    Before you mount and deploy the AP, we recommend that you perform a site survey (or use the site planning tool) to determine the best location to install your AP. You should have the following information about your wireless network on hand: • AP locations Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 24: Performing A Preinstallation Configuration (Optional)

    For additional information, see Deploying the Access Point in a Wireless Network, on page The preinstallation configuration setup is illustrated in Figure 5: Preinstallation Configuration Setup, on page Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...
  • Page 25 To perform preinstallation configuration, follow these steps: Procedure Step 1 Ensure that the Cisco Controller Distribution System port is connected to the network. Use the procedure for the CLI or the GUI interface, as described in the release-appropriate Cisco Catalyst 9800 Series Wireless Controller Software Configuration Guide.

  • Page 26: Mounting The Access Point

    While this is happening, the status LED blinks blue. d) If the software image download is successful, the AP reboots. Step 3 Configure the AP 802.11AX network settings using the controller CLI, controller GUI, or Cisco Catalyst Center. Step 4 If the preinstallation configuration is successful, the status LED is green, indicating normal operation.

  • Page 27: Choosing A Mounting Kit

    • Align the AP’s omnidirectional antennas vertical to the ground. Wall Mounting the AP using the Meraki Kit The MA-MNT-MR-16 mounting kit contains a mounting bracket for wall mounting or pole mounting. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...
  • Page 28 One of four slots for steel band clamps, used for pole mounting (horizontal) One of four slots for steel band clamps, used AP release tab for pole mounting (vertical) Figure 7: Mounting Bracket Dimensions Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...
  • Page 29 AP slot are inserted into the keyhole slots on the mounting bracket. Step 5 Slide the AP down to sit securely in the keyhole slots on the mounting bracket. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 30: Pole Mounting The Ap Using The Meraki Kit

    Two stainless steel band clamps (adjustable 2 to 5 inch (51 to 127 mm) 10–mm box-end wrench A flathead screwdriver Outdoor-rated shielded Ethernet cable Ground lug (provided with the access point) Ground block and rod Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 31: Wall Mounting The Ap Using The Cisco Kit

    You can use the mounting bracket as a template to mark the mounting holes' positions for your installation, install the mounting bracket, and then attach the AP to the bracket. Caution The mounting wall, attaching screws, and wall anchors must support a 50-lb (22.7–kg) static weight. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...
  • Page 32 Ground lug and screws (provided with the access point) Wall Mount Bracket Optional, Cisco orderable accessory Four M6 x 12–mm Hex-head Bolts Crimping tool for ground lug, Panduit CT-720 with CD-720-1 die Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...
  • Page 33 Using a 10–mm wrench, tighten the four bolts that connect the AP to the bracket to 40 lbf-in (4.5 Nm) of torque. Step 7 Proceed with installing antennas, connecting the data cables, grounding the AP, powering, and configuring the AP. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 34: Pole Mounting The Ap Using The Cisco Kit

    Supplied in the Kit? One wall mount bracket Optional Cisco orderable accessory Four M6 x12 mm hex head bolts Two stainless steel band clamps (adjustable 2 to 3.9 inch (51 to 99.06 Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 35: Grounding The Access Point

    In all outdoor installations, you must follow these steps to ground the case properly: Procedure Step 1 If using insulated 6-AWG copper ground wire, strip the insulation required for the grounding lug. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 36: Powering The Access Point

    The AP supports Power-over-Ethernet (PoE) based power sources. The AP is powered via the PoE input from an inline power injector. Depending on the configuration and regulatory domain, the required power for full operation is 802.3at. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 37: Connecting A Power Injector

    Installing the Access Point Connecting a Power Injector Table 9: Cisco Catalyst Wireless 9163E AP Reduced Power Feature Matrix PoE-in/DC Radio Radio Radio Scan Ethernet GNSS Input Radio mGig Path Path Path 2.4-GHz 5-GHz 6-GHz Primary radio Primary radio radio disabled —...

  • Page 38: Connecting An Ethernet Cable To The Access Point

    • Shielded outdoor-rated CAT 5e Ethernet cable with a diameter of 0.14 to 0.26 inch (3.5 to 6.5mm) • CAT 5e RJ45 connector and installation tool • Adjustable wrench or 18–mm box wrench • CAT 5e gland kit is supplied standard with AP Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...
  • Page 39 Pass the Ethernet cable through the cable seal and pull several inches of cable through the adapted components. Step 7 Install an RJ45 connector on the Ethernet cable's unterminated end using your Ethernet cable installation tool. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...
  • Page 40 Install an RJ45 connector on the unterminated cable end and insert it into the power injector or device PoE port. Step 13 Turn on the power to the power injector. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 41: Installing A Cat 6/6A Ethernet Cable And Gland Assembly To The Access Point

    • Shielded outdoor-rated Ethernet (CAT 6 or CAT 6A) cable with a diameter of 0.2 to 0.35 inch (5 to 9 • CAT 6 RJ45 connector installation tool • Adjustable wrench or 18–mm box wrench • CAT 6 / CAT 6A gland ordered separately with AIR-ACC-CAT6= kit Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...
  • Page 42 Tighten the cable seal nut around the cable. Using a 18mm or adjustable wrench, tighten the nut to 7-9 lbf-in (8 – 10 kgf-cm). Step 10 Install the RJ45 cable gland assembly into the AP port. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 43: Mounting Antennas

    Wall Mounting the GNSS Antenna The CW-ANT-GPS2-S-00 is a mounting bracket with the GNSS antenna for mounting the antenna to a wall or a pole. Figure 16: Wall Mounting a GNSS antenna Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 44: Pole Mounting The Gnss Antenna

    Connectors and Ports on the AP, on page Pole Mounting the GNSS Antenna The CW-ANT-GPS2-S-00 is a mounting bracket with the GNSS antenna for mounting the antenna to a wall or a pole. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...
  • Page 45 Remove the protective cap and connect the antenna to the GNSS port. The GNSS port is located at the top of the AP. See Connectors and Ports on the AP, on page Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...
  • Page 46 Installing the Access Point Pole Mounting the GNSS Antenna Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 47: Deploying The Access Point

    Management Mode Migration, on page 42 Controller Discovery Process The Cisco AP must join a controller to function as an AP and start serving clients. Cisco uses a process called the controller discovery process to join a controller. The devices use Lightweight Access Point Protocol (LWAPP) to communicate with each other.

  • Page 48: Deploying The Access Point In A Wireless Network

    When an AP receives an IP address and DNS information from a DHCP server, it contacts the DNS to resolve CISCO-CAPWAP-CONTROLLER.localdomain. When the DNS sends a list of controller IP addresses, the AP sends discovery requests to the controllers.
  • Page 49 This status indicates that an Ethernet link is not operational Solid Red Ethernet failure Blinking Blue Configuration recovery is in progress (the Reset button has been pushed for 2 to 3 seconds) Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 50: Management Mode Migration

    Insufficient inline power Management Mode Migration CW9163E AP supports both Cisco Controller and Meraki cloud architecture. You can switch between on-prem controller and cloud deployments, depending on your requirements. You can configure the management mode migration with the help of CLI commands in the privileged EXEC mode, at the AP level, and from the controller GUI.

  • Page 51: Network Deployment

    Meraki Cloud Based Deployment, on page 48 Cisco On-Premises Deployment You can associate the CW9163E AP to a Cisco On-premises deployed network. Initializing an Access Point Perform the following procedure for an out-of-the-box (OOB) AP. This procedure prepares the AP to associate with a network.

  • Page 52: Associating An Access Point With A Controller

    • Use DHCP Option 43 to initiate the discovery process. • Use DNS discovery to claim the AP for a controller. Add a DNS server entry pnpserver in the private DNS server pointing to your Cisco Catalyst Center IP address.

  • Page 53: Configuring Wireless Controller

    Check the check boxes for the desired MCS/(data rate), or to select all of them, check the Select All check box. Step 7 Click Update & Apply to Device. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 54: Configuring Wpa3 Security

    Select the PMF state from Required or Optional from the drop-down list. • Configuring WPA2 + WPA3 security protocol. a. Choose Security > Layer2 tab. b. Select the WPA2 + WPA3 tab. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 55: Configuring Policy Tag

    When selecting an existing WLAN, the Edit WLAN window is displayed. Alternatively, you may create a new WLAN if required. Step 4 Select the Advanced tab. Step 5 Check the 6 GHz Client Steering check box. Step 6 Click Update & Apply to Device. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 56: Meraki Cloud Based Deployment

    The onboarding APs need to connect with the Cloud management to ensure that the outgoing connections on specific IP addresses and ports are open for this connection to be established. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 57: Associating Ap With Cloud Management

    We recommend you run the latest stable release on the APs. When there is an upgrade in progress, the LED blinks blue and turn solid blue or green after the upgrade is complete. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 58: License Management

    The Wi-Fi 6E radio protocol requires WPA3 security for the 6-GHz band. WPA3 is not backward compatible, even when the WPA3 Transition mode is enabled. You have three options when creating a WLAN. • All-In: You must reconfigure all the WLANs to WPA3 only. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...
  • Page 59 The Band steering check box is grayed out if either the 2.4 GHz or 5 GHz operation check Note box is unchecked. e) Save the settings. Step 7 Antenna Configuration. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...
  • Page 60 Choose Wireless > Monitor > Access Points > Access Point Details for a selected AP. b. Click the pencil icon to edit the antenna type. Note Ensure that the antenna type physically installed on the AP matches the Dashboard-selected antenna model. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 61: Troubleshooting

    3. Press the Mode button for more than 20 seconds, but less than 60 seconds to clear the AP internal storage, including all the configuration files. This resets all the configuration settings to factory defaults, including passwords, the IP address, and the SSID. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 62: Troubleshooting The Access Point To Controller Join Process

    When the ordered AP is a CW9163E-MR model, or the AP is in Meraki Management mode, it will not attempt to join the Cisco 9800 Wireless Controller. Contact the Meraki support team to perform the migration procedure on the AP.

  • Page 63: Important Information For Controller-Based Deployments

    The following is a DHCP Option 43 configuration example on a Microsoft Windows 2003 Enterprise DHCP server for Cisco Catalyst lightweight APs. For other DHCP server implementations, consult the product documentation to configure DHCP Option 43. In Option 43, use the IP address of the controller management interface.
  • Page 64 DHCP Option 43 is limited to one AP type per DHCP pool. You must configure a separate DHCP pool for each AP type. The Cisco Catalyst Wireless 9163E Series Outdoor AP uses the type-length-value (TLV) format for DHCP Option 43. DHCP servers must be programmed to return the option based on the AP DHCP Vendor Class Identifier (VCI) string (DHCP Option 43).
  • Page 65 Troubleshooting Configuring DHCP Option 43 and 0a7f7f02. Assembling the string then yields f1080a7e7e020a7f7f02. The resulting Cisco IOS command is added to the DHCP scope is option 43 hex f1080a7e7e020a7f7f02. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...
  • Page 66 Troubleshooting Configuring DHCP Option 43 Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 67: Safety Guidelines And Warnings

    Safety Guidelines and Warnings Translated versions of the following safety warnings are provided in the translated safety warnings document shipped with your AP. The translated warnings are also in the Translated Safety Warnings for Cisco Catalyst Access Points, available on Cisco.com.

  • Page 68: Avoiding Damage To Radios In A Testing Environment

    Every network application is a unique installation. Before installing multiple APs, you should perform a site survey to determine the optimum use of networking components and maximize range, coverage, and network performance. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...
  • Page 69 • Have you configured the APs before you go onsite? It is always easier to resolve configurations or device problems first. • Do you have the proper tools and equipment to complete your survey? Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...
  • Page 70 Safety Guidelines and Warnings Performing Site Surveys Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 71: Declarations Of Conformity And Regulatory Information

    C H A P T E R Declarations of Conformity and Regulatory Information This section provides declarations of conformity and regulatory information for the Cisco Catalyst Wireless 9163E Series OutdoorAPs. You can find additional information at this URL: http://www.cisco.com/go/aironet/ compliance.

  • Page 72: Operation Of Cisco Catalyst Access Points In México

    Interference from Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it may cause radio interference. Install and use the equipment according to the instruction manual. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 73: Guidelines For Operating Cisco Catalyst Access Points In Japan

    Guidelines for Operating Cisco Catalyst Access Points in Japan Danger Guidelines for Operating Cisco Catalyst Access Points in Japan This section provides guidelines for avoiding interference when operating Cisco Catalyst access points in Japan. These guidelines are provided in both Japanese and English. English Translation...

  • Page 74: Statement 371-Power Cable And Ac Adapter

    Safety Law prohibits the use of UL-certified cables (that have the “UL” shown on the code) for any other electrical devices than products designated by CISCO. The use of cables that are certified by Electrical Appliance and Material Safety Law (that have “PSE” shown on the code) is not limited to CISCO-designated products.

  • Page 75: Industry Canada

    The product carries the CE Mark: Administrative Rules for Cisco Catalyst Access Points in Taiwan This section provides administrative rules for operating Cisco Catalyst APs in Taiwan. The rules for all access points are provided in both Chinese and English.
  • Page 76 The operation of the low-power radio-frequency devices is subject to the interference caused by the operation of an authorized radio station, by another intentional or unintentional radiator, by industrial, scientific and medical (ISM) equipment, or by an incidental radiator. Cisco Catalyst Wireless 9163E Access Point Hardware Installation and Deployment Guide...

  • Page 77: Operation Of Cisco Catalyst Access Points In Brazil

    Operation of Cisco Catalyst Access Points in Brazil This section contains special information for operation of Cisco Catalyst APs in Brazil. Access Point Models Certification Number...

  • Page 78: Declaration Of Conformity For Rf Exposure

    This Device Meets International Guidelines for Exposure to Radio Waves The Cisco Catalyst Wireless 9163E Series Outdoor AP device includes a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves (radio frequency electromagnetic fields) recommended by international guidelines.

  • Page 79: This Device Meets Fcc Guidelines For Exposure To Radio Waves

    This Device Meets FCC Guidelines for Exposure to Radio Waves The Cisco Catalyst Wireless 9163E Series Outdoor AP device includes a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves (radio frequency electromagnetic fields) as referenced in FCC Part 1.1310.

  • Page 80: Additional Information On Rf Exposure

    Additional Information on RF Exposure You can find additional information on the subject at the following links: • Cisco Systems Spread Spectrum Radios and RF Safety white paper at this URL: http://www.cisco.com/warp/public/cc/pd/witc/ao340ap/prodlit/rfhr_wi.htm • FCC Bulletin 56: Questions and Answers about Biological Effects and Potential Hazards of Radio Frequency Electromagnetic Fields •...
