Operation
™

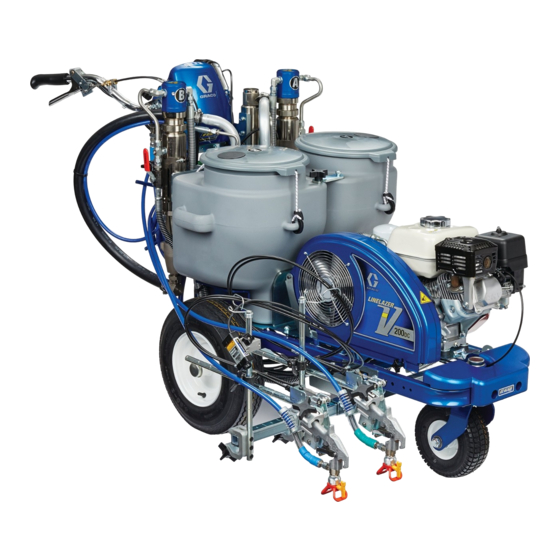

LineLazer
V 200
Standard Series and High Production (HP) Series
For the application of line striping materials.
For professional use only.
For outdoor use only.
Not for use in explosive atmospheres or hazardous locations.
Maximum Operating Pressure: 3300 psi (22.8 MPa, 228 bar)
Important Safety Instructions
Read all warnings and instructions in this manual and in related manuals before using the equipment.
Be familiar with the controls and the proper usage of the equipment.
Save these instructions.
Related Manuals:
3A3390
Parts
311254
Gun
LineLazer V 200
Standard Series
Use only genuine Graco replacement parts.
The use of non-Graco replacement parts may void warranty.
& 200
HS
DC
309277
Pump
3A3428
Auto-Layout Applications Methods
HS
Airless Line Stripers
LineLazer V 200
High Production Series
3A3426H
LineLazer V 200
HS
EN
DC
Advertisement
Table of Contents
Related Manuals for Graco LineLazer V 200HS
Summary of Contents for Graco LineLazer V 200HS
- Page 1 Related Manuals: 3A3390 Parts 309277 Pump 311254 3A3428 Auto-Layout Applications Methods LineLazer V 200 Standard Series LineLazer V 200 LineLazer V 200 High Production Series Use only genuine Graco replacement parts. The use of non-Graco replacement parts may void warranty.
-
Page 2: Standard Series
Cleanup Standard Series 3A3426HOperation... -
Page 3: Linelazer V Livelook Display
LineLazer V LiveLook Display LineLazer V LiveLook Display Standard Series 9-10 9-10 3A3426HOperation... - Page 4 LineLazer V LiveLook Display Initial Setup (Standard Series) US Units Pressure = psi The initial setup prepares the striper for operation based Volume = gallons on a number of user entered parameters. Language Distance = feet selections and the units of measure selections can be Line Thickness = mil set before you start or changed later.
- Page 5 LineLazer V LiveLook Display 3. Press to select Setup/Information. 6. Push to start calibration. ti27826a 7. Move striper forward. Keep unit aligned with steel tape. 8. Stop when chosen part of unit aligns with 26-ft (8m), or distance entered, on steel tape (25-ft./ 7.6m ti27827a distance).
- Page 6 LineLazer V LiveLook Display Striping Mode (Standard Series) 200DC 200H ti27889a Operating in Striping Mode Ref. Description 1. Make sure engine is running. Resets Distance, Gallons, Mils Job logging 2. Set pump switch to ON. Scroll between menu screens Line width adjustment buttons Auto gun buttons MIL thickness.
- Page 7 LineLazer V LiveLook Display Measure Mode (Standard Series) 2. Press and release . Move striper forwards or backwards. (Moving backwards is a negative Measure Mode replaces a tape measure to measure distance.) distances when laying out an area to be striped. 1.
- Page 8 LineLazer V LiveLook Display Setup/Information to select Setup/Information. Press to select Language. See Language, page 27. See Calibration, page 27. See Settings, page 32. See Information, page 33. 3A3426HOperation...
- Page 9 LineLazer V LiveLook Display Settings to select Setup/Information. Press open Settings Menu. Chooses the machine type. Necessary for accurate gallon counting. to set time and date. Set units with to adjust screen contrast to the desired value. ti27839b 3A3426HOperation...
- Page 10 LineLazer V LiveLook Display Information to select Setup/Information. Press open Information Menu. Displays and logs life data and striper information. View and test functionality of components. Stroke Counter Touch Pad Buttons Pressure Transducer Engine Voltage Distance Sensor Battery Voltage Logs last four error codes that occurred. Code Description 02 = Over pressure 03 = No transducer detected...
- Page 11 HP Auto Series and HP Reflective Series HP Auto Series and HP Reflective Series 3A3426HOperation...
- Page 12 LineLazer V LiveLook Display LineLazer V LiveLook Display HP Auto Series STRIPING SCREEN MEASURE MODE LAYOUT MODE SETTING/INFO 200DC 9.00 10.00 11.00 MEASURE MODE 0. 00 ¹ 0. 00 ¹ 0. 00 ¹ 0. 00 ¹ 0. 00 ¹ 0. 00 ¹...
- Page 13 LineLazer V LiveLook Display Initial Setup (HP Auto Series) US Units Pressure = psi Volume = gallons The initial setup prepares the striper for operation based Distance = feet on a number of user entered parameters. Language Line Thickness = mil selections and the units of measure selections can be SI Units set before you start or changed later.
- Page 14 LineLazer V LiveLook Display 6. Press and release auto gun trigger control to start 3. Press to select Setup/Information. calibration. ti27912a 7. Move striper forward. Keep laser dot on steel tape. 8. Stop when laser aligns with 26-ft (8m) or distance entered on steel tape (25-ft./7.6m distance).
- Page 15 LineLazer V LiveLook Display Striping Mode (HP Auto Series) Operating in Striping Mode Ref. Description Striper must be running before activating gun trigger Select a “Favorite”, press for less than one second. control. Save a “Favorite”, press and hold for more than three seconds.
- Page 16 LineLazer V LiveLook Display Measure Mode (HP Auto Series) 2. Press and release auto gun trigger control. Move striper forwards or backwards. (Moving backwards is a negative distance.) Measure Mode replaces a tape measure to measure distances when laying out an area to be striped. 1.
-
Page 17: Layout Mode
LineLazer V LiveLook Display Layout Mode 2. Use gun activation buttons to select guns. Layout Mode is used to calculate and mark parking lot stalls. 1. Use to select Layout Mode. ti27918a 3. Press and release auto gun trigger control and move striper forward. -
Page 18: Stall Calculator
LineLazer V LiveLook Display Stall Calculator to start a new measurement. Press again to stop measuring. Stall Calculator is used to set the stall size. The striper When measuring between curbs, the distance from divides the measured length by the stall size to the back tire/curb to the gun/laser dot, can be determine the number of stalls that will fit in the length accounted for by setting the Offset (x) value. -
Page 19: Angle Calculator
LineLazer V LiveLook Display Angle Calculator 2. Dot spacing (B) and offset (C) are calculated based on the parameters entered: Angle Calculator is used to determine the offset value Stall angle and dot spacing value for a layout. Stall depth Stall size (width) 1. - Page 20 LineLazer V LiveLook Display 5. Press and release auto gun trigger control to start 4. Press to transfer calculated dot spacing marking stall size dots. Press and release gun distance to Layout Mode. Save this value in trigger control to stop marking. favorites if desired.
- Page 21 LineLazer V LiveLook Display Setup/Information to select Setup/Information. Press to select Language. See Language, page 36. See Calibration, page 36. See Settings, page 45. See Information, page 46. See Marker Layout Mode, page 47. 3A3426HOperation...
- Page 22 LineLazer V LiveLook Display Settings to select Setup/Information. Press open Settings Menu. Chooses the machine type. Necessary for accurate gallon counting. to set time and date. Needed for accurate Data Logging. Set units with to adjust screen contrast to the desired value. For programmed skip lines, press to choose: Paint first...
- Page 23 LineLazer V LiveLook Display Information to select Setup/Information. Press open Information Menu. Displays and logs life data and striper information. View and test functionality of component Stroke Counter Touch Pad Buttons Pressure Transducer Engine Voltage Distance Sensor Battery Voltage Clutch Solenoid 1 Solenoid 2 Battery charger state...
- Page 24 LineLazer V LiveLook Display Marker Layout Mode 4. Set gun switch to skip line or solid line. The Marker Layout Mode feature sprays a dot or a series of dots to mark an area. 1. Use to select Setup/Information. Press ti27918a to open Marker Layout Mode.
-
Page 25: Data Logging
LineLazer V LiveLook Display Data Logging The LLV control is equipped with Data Logging, which 1. Press the to open the Data Logging pop up allows the user to recall job data and export the data window. from the machine to a USB drive. 2.
