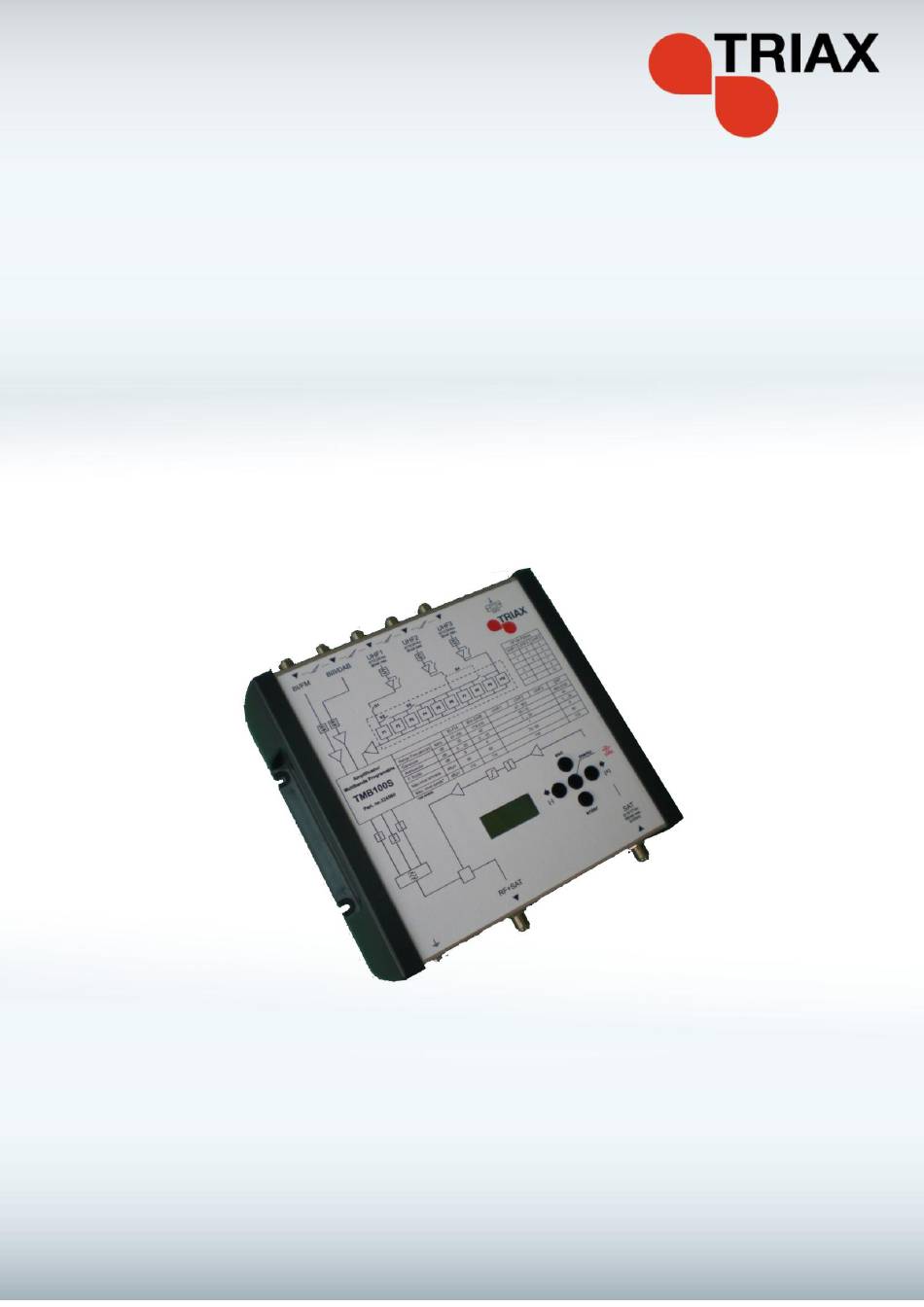

- Page 1 Programmable Multiband Amplifier TMB 100 ¤ TMB 100S Programmable Multiband Amplifier & TMB 100 TMB 100S Mounting instruction July 2014 – V1.0...
-
Page 2: Table Of Contents
Programmable Multiband Amplifier TMB 100 ¤ TMB 100S General information ........................3 Safety instructions ........................3 Installing the unit ........................... 4 Programming the unit ........................5 Configuring the unit ........................6 Operating principle ........................6 Menus : ........................... 6 Flow chart ............................7 Menus ............................ -
Page 3: General Information
Programmable Multiband Amplifier TMB 100 ¤ TMB 100S The processing units in the TMB100 range are used to selectively filter digital and analogue UHF channels. These units also couple and amplify VHF programmes according to the satellite band model (IF). -
Page 4: Installing The Unit
Programmable Multiband Amplifier TMB 100 ¤ TMB 100S We recommend you install the unit in a sufficiently ventilated place. Natural ventilation must be able to occur through the ventilation grids; leave a minimum space of 15 cm around the unit to ensure maximum ventilation. -
Page 5: Programming The Unit
Programmable Multiband Amplifier TMB 100 ¤ TMB 100S A 4-digit display and a keypad are all you need to programme the unit. Follow the procedure below for configuring the various parameters. Back to previous menu ( - Running through the menus ,... -
Page 6: Configuring The Unit
Programmable Multiband Amplifier TMB 100 ¤ TMB 100S On powering on, the unit is in standby mode, a light segments flashes across the display. Operating principle To access the configuration menus, press a button To summarize: To scroll through the menus, use the + / - buttons. -
Page 7: Flow Chart
Programmable Multiband Amplifier TMB 100 ¤ TMB 100S... -
Page 8: Menus
Programmable Multiband Amplifier TMB 100 ¤ TMB 100S Config menu. This menu allows: Configuration of filter distribution on UHF1, 2 and 3 inputs. Comb 0010 Switch on/off the input amplifiers Ampx on/off Selection of remote power supply (12 or 24 VDC). -
Page 9: Input Amplifiers Setting
Programmable Multiband Amplifier TMB 100 ¤ TMB 100S Input amplifier setting. <CONFIG> Enter CONFIG CONFIG CONFIG CONFIG Comb 0010 Amp1 Amp2 Amp3 Enter Enter Enter Enter CONFIG CONFIG CONFIG CONFIG Comb 0010 Amp1 on/off Amp2 on/off Amp3 on/off Enter Enter... -
Page 10: Remote Power Supply Setup
Programmable Multiband Amplifier TMB 100 ¤ TMB 100S Remote power supply setup. <CONFIG> Enter CONFIG CONFIG CONFIG CONFIG CONFIG CONFIG Comb 0010 Amp1 VDC1 VDC2 VDC3 CONFIG Amp2 CONFIG Enter Enter Enter Enter Enter Amp3 CONFIG CONFIG CONFIG CONFIG CONFIG... -
Page 11: Import And Export Menu
Programmable Multiband Amplifier TMB 100 ¤ TMB 100S Import and export menu <CONFIG> Enter X times CONFIG CONFIG CONFIG Comb 0010 Import Export Enter Enter Enter CONFIG CONFIG CONFIG Comb 0010 SE 000 NoSD!/SE001 Enter Enter Enter CONFIG SE 000... -
Page 12: Pin Code
Programmable Multiband Amplifier TMB 100 ¤ TMB 100S PIN Code <CONFIG> Enter X times CONFIG CONFIG Comb 0010 PIN off Default PIN code: 2312 Enter Enter CONFIG CONFIG Comb 0010 on/off Enter Enter CONFIG PIN 2312 PIN 2312 Enter ... -
Page 13: Uhf Filters Setup
Programmable Multiband Amplifier TMB 100 ¤ TMB 100S UHF filters setup. Unit in standby mode, push a button to reach the CONFIG menu. Press the button to reach the CHAN menu. Press enter to activate the menu ... -
Page 14: Setting The Levels
Programmable Multiband Amplifier TMB 100 ¤ TMB 100S Setting the levels. There are three types of level setting: “Manual” setting of output levels (Gain menu) automatic alignment of UHF filter output levels to a value entered by the user. (Auto menu, sub-menu Level) ... -
Page 15: Agc
Programmable Multiband Amplifier TMB 100 ¤ TMB 100S Unit in standby mode, push a button to reach the CONFIG menu. Press the button several times to reach the Auto/AGC menu. Press enter to activate the AGC menu ... -
Page 16: Sat Menu
TMB 100 ¤ TMB 100S SAT Menu TMB 100S models have one IF amplification path. The Sat menu is used to configure the remote power supply of the LNB (OFF / 13 /17 V ), to activate the 22kHz generator and the 9dB equalizer. -
Page 17: Tmb 100 Diagram
Programmable Multiband Amplifier TMB 100 ¤ TMB 100S BI/FM UHF1 UHF2 UHF3 0/12/24V 0/12/24V 0/12/24V 0/13/17V 0/22kHz 0-20dB 0-20dB 0-20dB 0-20dB 0/9dB 0-20dB... -
Page 18: Technical Specifications
Programmable Multiband Amplifier TMB 100 ¤ TMB 100S TMB 100 TMB 100S Type Units 360223 324580 Part nr. Number of inputs AMPLIFICATION Max. BI_FM / BIII / UHF / SAT input level 90 / 80 / 95 / - 90 / 80 / 95 / 80... -
