60 Electrical installation

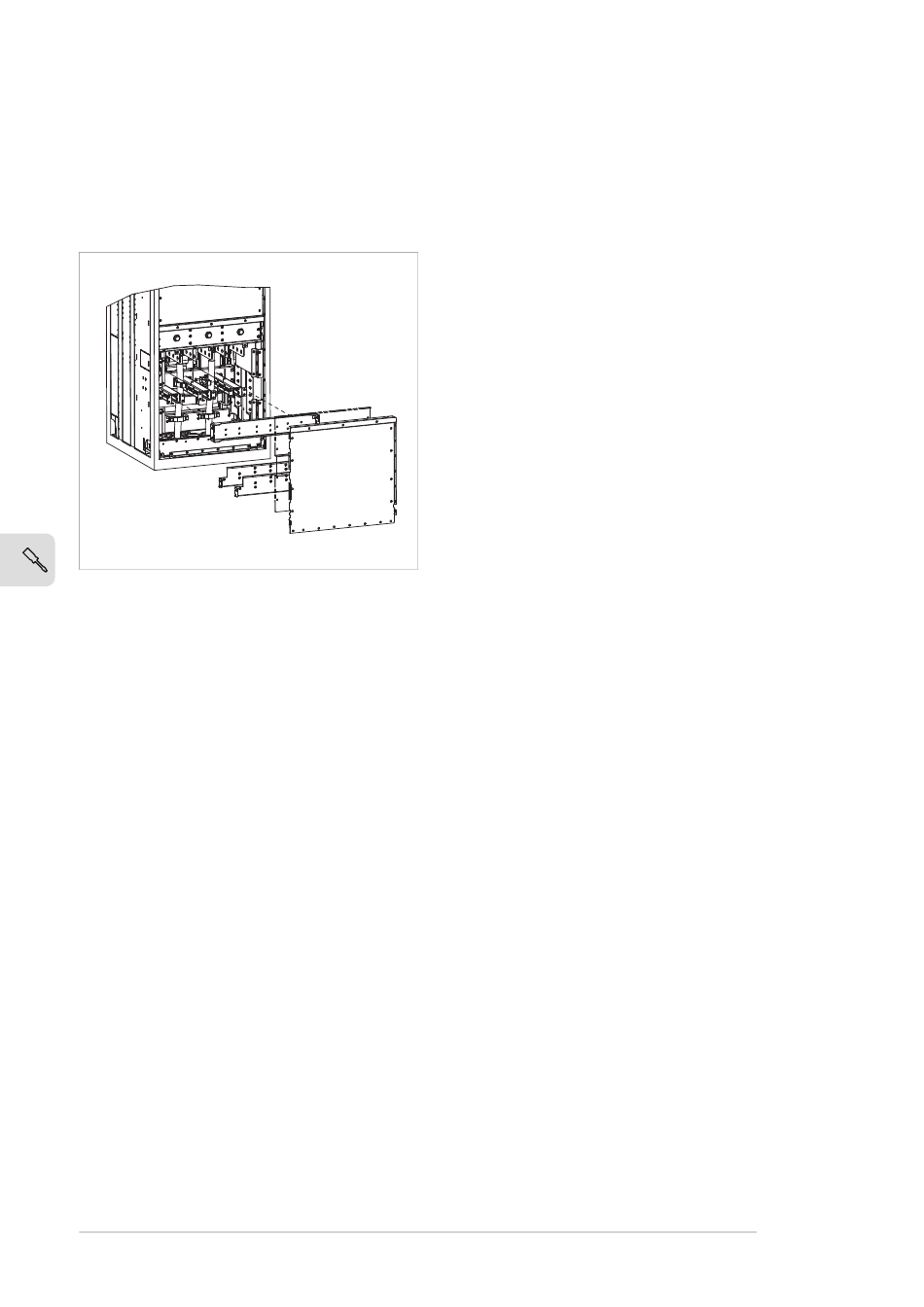

Replacing shrouds and beams in front of input power cable terminals
1.
Install the beams.
2.
Reinstall the shrouding and assembly plates.
3.
Close the cubicle door.
