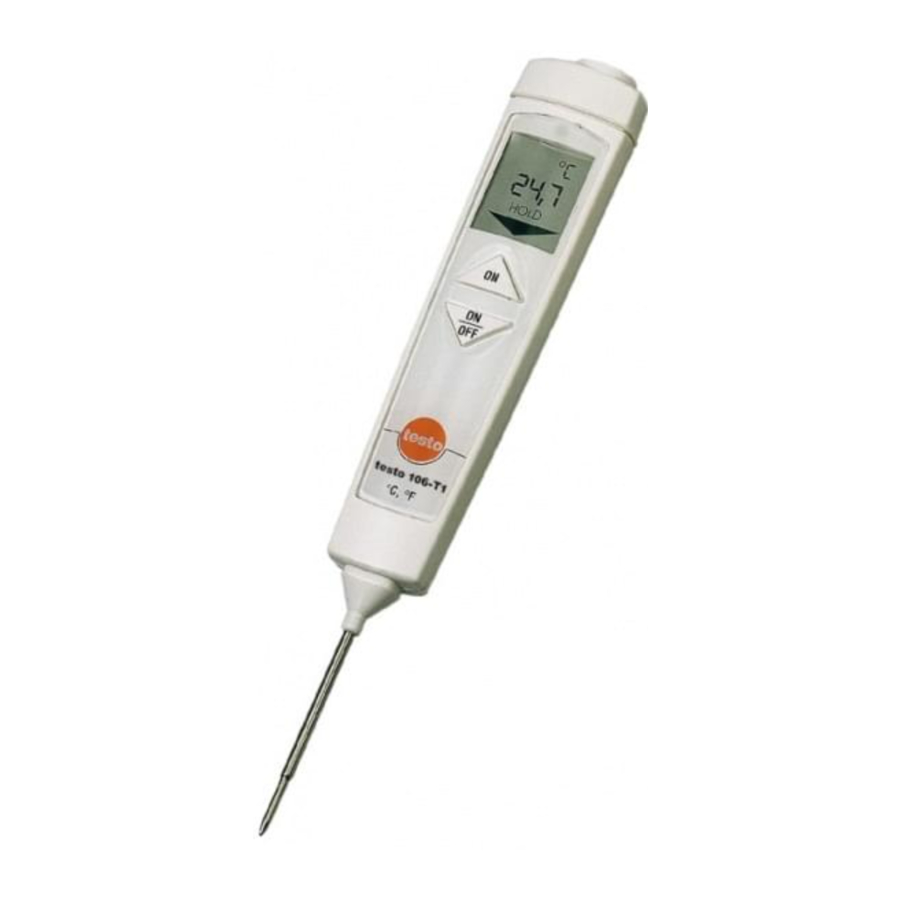

TESTO 106-T1, 106-T2 - Digital Thermometer Manual

Instructions

Please note:

Minimum penetration depth >10 mm to achieve accurate values (Fig.1).
Use the pre-borer when measuring the core temperature in frozen food. Then place the measuring tip in the object to be measured (Fig.2).
Risk of injury from measuring tip.
Maximum ambient and operating temperature (e.g.protect instrument from sunlight).

Avoid:

Use in corrosive acids or alkalines (Fig. 3).
Measurements on live parts (Fig. 4).

The warranty is invalid if instruments are inexpertly handled.

Accessories

Note: The IP 67 protection class is guaranteed only inside the closed TopSafe. If the instrument is kept immersed for a longer period of time, apply grease to inside openings of TopSafe (see arrows).

Changing the battery

Battery needs to be changed.
Observe correct polarisation of batteries/rechargeable batteries.

Operating temperature	-20°C...+50°C +4°F...+120°F
Storage temperature	-40°C...+70°C -40°F...+158°F
Including optical alarm
testo 106 - T 1
Battery type	2 x lithium 2032
Battery life	250 h
testo 106 - T 2
Battery type	2 x AAA round cells
Battery life	250 h
WARRANTY	1 year

Contact measurement

Measuring range	-50°C...+230°C
Resolution	-58°F...+446°F 0.1°C 0.1°F
Accuracy	± 0.5°C (-30 to +99,9°C) ± 1°C or ± 1% of m.v.(remaining range) the larger value applies ± 0.9°F (-22 to +212°F) ± 1.8°F or ± 1% of m.v.(remaining range) the larger value applies

Settings

Switch between °C / °F
Set alarm limit.
Decide if alarm is to flash when value is above or below limit

Contact measurement

ON: Press button briefly Segment test appears
HOLD: Press button
Measuring: Press button again
Measuring: Release button
OFF: Press button for 3 s
