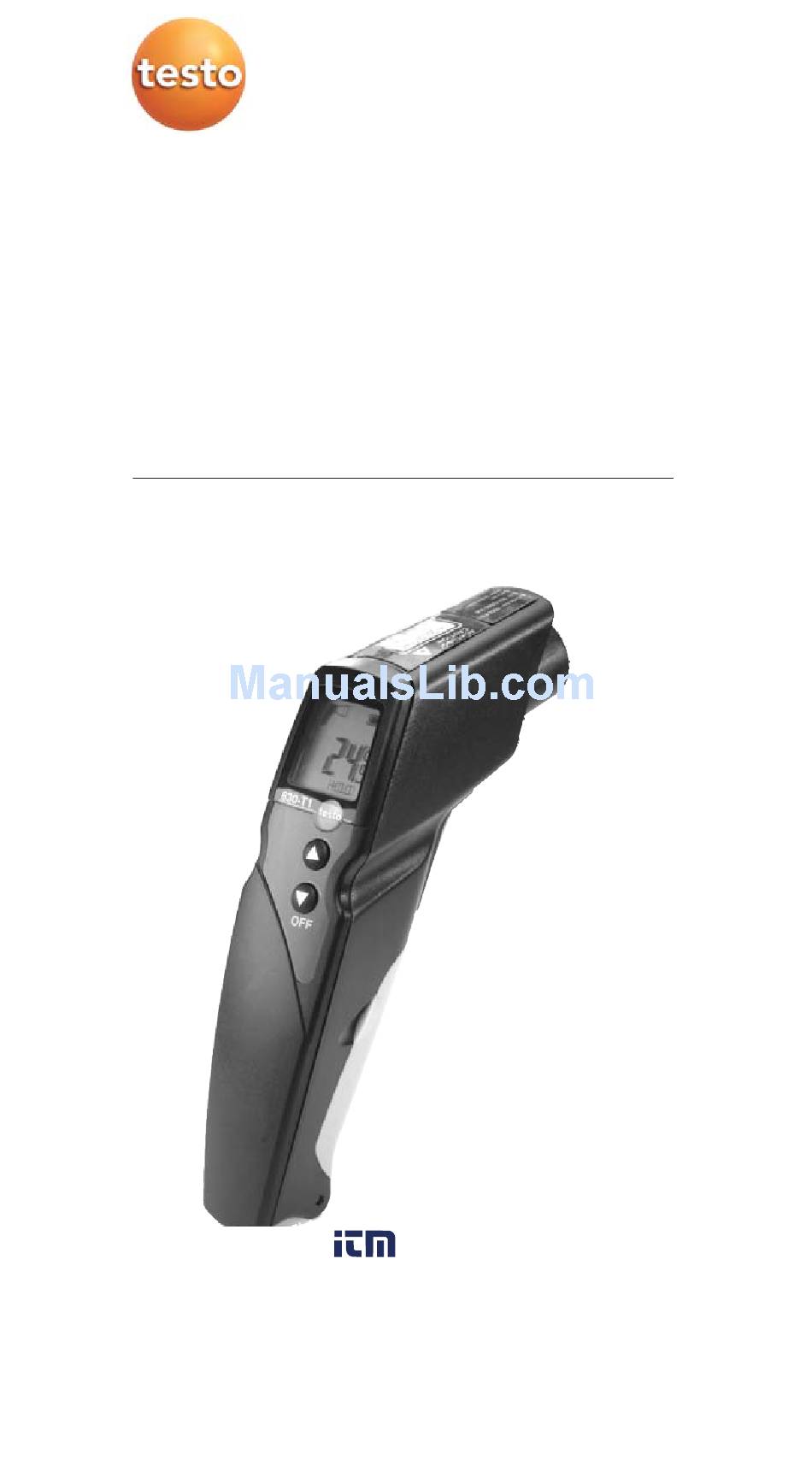

- Page 1 830-T1 (0560 8311) testo 830-T2 (0560 8312) Bedienungsanleitung Instruction manual Mode d’emploi Manual de instrucciones Manuale di istruzioni Manual de instruções Руководство пользователя Handleiding 1.800.561.8187 information@itm.com www. .com...
-
Page 2: General Information
0516 8302 Emissivity adhesive tape ε=0.95 0554 0051 Probe socket (testo 830-T2 only) 3. Safety Information Avoid electrical hazards: Contact measurement: Do not measure on or near live parts. Infrared measurement: Please adhere to the required safe distance when measuring on live parts. -
Page 3: Intended Use

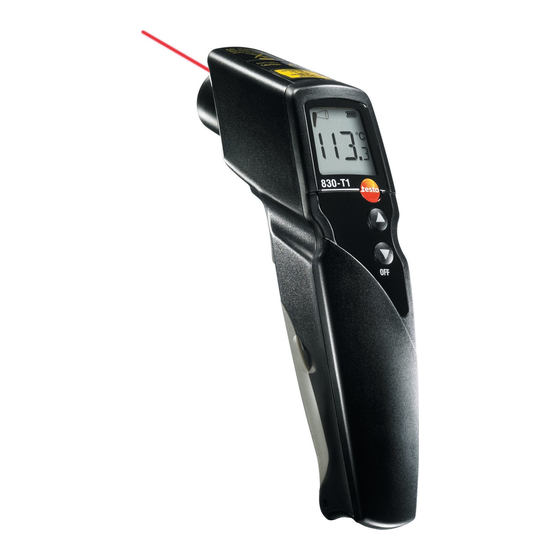

We will ensure that it is disposed of in an environmentally friendly manner. 4. Intended Use testo 830 is a compact infrared thermometer for the non-contact measurement of surface temperatures. Using testo 830-T2, it is possible to carry out additional contact measurements by attaching probes. -
Page 4: Operation
Infrared measurement 1 Start measurement: Hold down measurement button. 2 Locate object to be measured using laser point. testo 830-T1: laser marks the centre point of the measurement spot. testo 830-T2: Laser marks the upper and lower end of the measurement spot. -
Page 5: Service And Maintenance
2 End the measurement: Press - HOLD lights up. The last measured value and min./max. value are saved until the next measurement. Switch between min., max. and recorded value: Press Restart measurement: Press Back to infrared measurement view: Press measurement button. -
Page 6: Questions And Answers
Connect probe. - Probe damaged. Change probe. If we have not answered your question, please contact your local distributor or Testo´s Customer Service. 11. Information on infrared measurement 11.1 Measurement method Infrared measurement is an optical measurement Keep lens clean. - Page 7 11.2 Emissivity Materials have different emissivities, i.e. they emit different levels of electromagnetic radiation. The emissivity of testo 830 is set in the factory to 0.95. This is the ideal value for measuring non- metals (paper, ceramics, plaster, wood, paints and varnishes),...
- Page 8 Ø 433 mm testo 830-T2 laser Ø 183 mm Ø 100 mm Ø 16 mm Ø 58 mm 500 mm 1000 mm laser 2000 mm 5000 mm 12. Information on contact measurement Observe minimum penetration depth in immersion/penetration probes: 10 x probe diameter Avoid applications in corrosive acids or bases.
- Page 9 1.800.561.8187 information@itm.com www. .com 0973 8304 de en fr es it pt ru nl 01...
