TESTO 106-T1 Instruction Manual

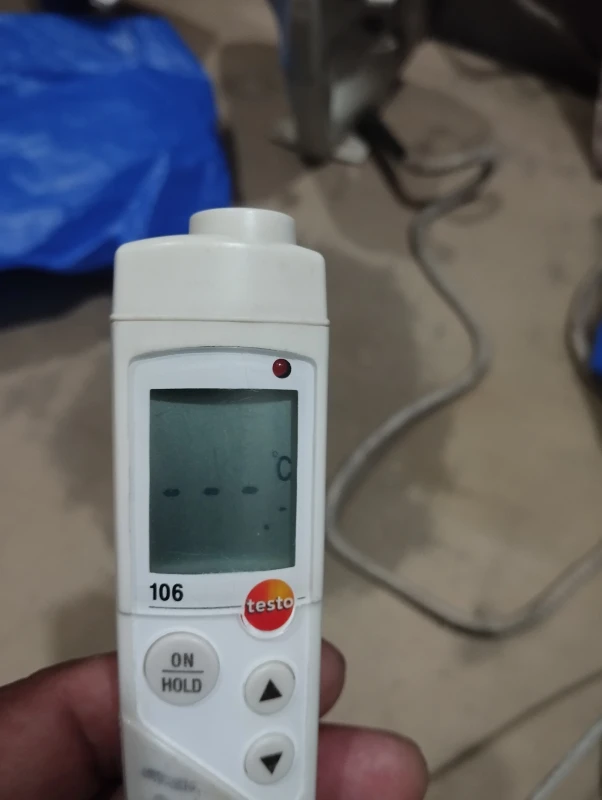

testo 106-T1
testo 106-T2
Instructions
1.)
> 10 mm
3.)
aggressive
Stoffe
Please note:
- Minimum penetration depth >10 mm to achieve accurate values (Fig. 1).
- Use the pre-borer when measuring the core temperature in frozen food. Then place
the measuring tip in the object to be measured (Fig. 2).
- Risk of injury from measuring tip.
- Maximum ambient and operating temperature (e.g. protect instrument from sunlight).
Avoid:
- Use in corrosive acids or alkalines (Fig. 3).
- Measurements on live parts (Fig. 4).
The warranty is invalid if instruments are inexpertly handled.
testo 106-T1/-T2
Instruction manual
The measuring instrument conforms with EN 50 081-1 +
EN 50 082-1; 1992. The instruments were tested in the
27-1000 MHz frequency range.
2.)
1.
2.
4.)
Accessories
0516.0826
0516.8265
IP 67
TopSafe Frozen food pre-borer
Note: The IP 67 protection class is guaranteed only inside the closed TopSafe.
If the instrument is kept immersed for a longer period of time, apply grease to
inside openings of TopSafe (see arrows).
Changing the battery
°c
36.5
Bat
Bat
Bat Battery needs to be changed.
Observe correct polarisation of batteries/rechargeable batteries.
Bat
Bat
Technical Data
General
Operating temperature
Storage temperature
Including optical alarm
testo 106 - T 1
Battery type
Battery life
testo 106 - T 2
Battery type
Battery life
Including audible alarm
WARRANTY
Contact measurement
Measuring range
Resolution
Accuracy
± 1°C or ± 1% of m.v.(remaining range) the larger value applies
± 1.8 °F or ± 1% of m.v.(remaining range) the larger value applies
0516.0825
Protective cap
Wall holder
testo 106-T1
testo 106-T2
-20 °C...+50 °C
+4 °F...+120 °F
-40 °C...+70 °C
-40 °F...+158 °F
2 x lithium 2032
250 h
2 x AAA round cells
250 h
1 year
-50 °C...+230 °C
-58 °F...+446 °F
0.1 °C
0.1 °F
± 0.5°C (-30 to +99,9 °C)
± 0.9 °F (-22 to +212 °F)
0973.1061/T/PC_qxdwh/12.99
