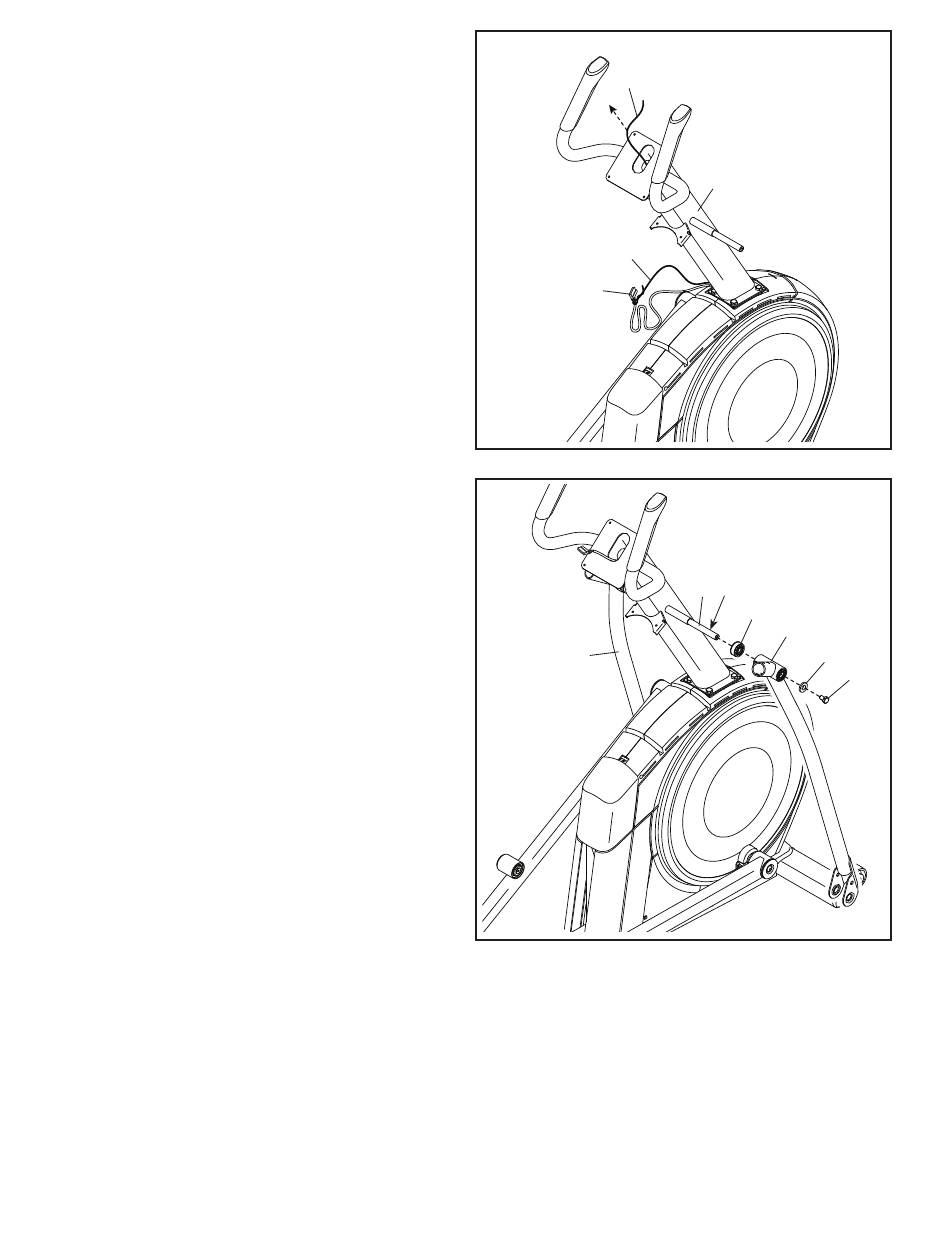

6. Locate the wire tie (A) in the lower end of the
Upright (4). Tie the wire tie to the Upper Wire
(110). Then, pull the upper end of the wire
tie until the Upper Wire is routed through the
Upright.
Tip: To prevent the Upper Wire (110) from
falling into the Upright (4), secure the Upper
Wire with the wire tie (A).
7. Apply grease to the axle on the right side of the
Upright (4).
Next, slide a Pivot Spacer (54) onto the right
side of the Upright (4).
Then, identify the Right Upper Body Leg (60),
orient it as shown, and slide it onto the right side
of the Upright (4).
Attach the Right Upper Body Leg (60) with an
M8 x 13mm Screw (82) and an M8 x 28mm
Washer (97).
Repeat this step for the Left Upper Body
Leg (46).
6
A
A
110
7
46
10
4
4 Grease
54
60
97
82
