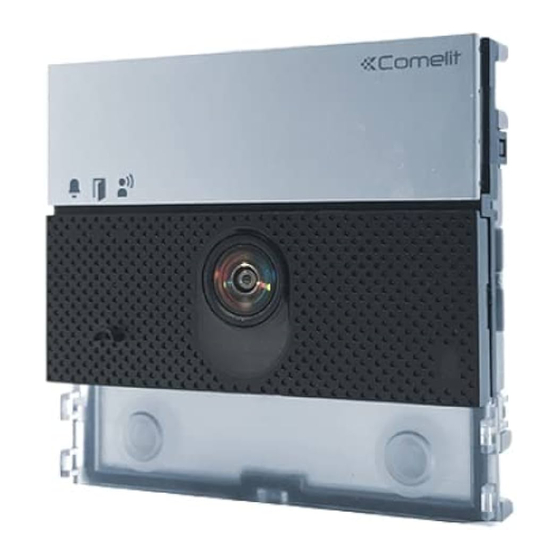

Ultra Simplebus2 audio/video module
art. UT2020, UT2020B, UT2020W
Ultra Simplebus2 remote camera audio module
art. UT2010VC, UT2010VCB, UT2010VCW
EN
TECHNICAL
MANUAL
FREE DOWNLOAD
FREE DOWNLOAD
Advertisement
Table of Contents
Related Manuals for Comelit UT2020
Summary of Contents for Comelit UT2020
- Page 1 MYCOMELIT: THE APP FOR PROFESSIONALS MYCOMELIT: THE APP FOR PROFESSIONALS MYCOMELIT, L'APP PER IL PROFESSIONISTA MYCOMELIT, L'APP PER IL PROFESSIONISTA FREE DOWNLOAD FREE DOWNLOAD Ultra Simplebus2 audio/video module art. UT2020, UT2020B, UT2020W Ultra Simplebus2 remote camera audio module art. UT2010VC, UT2010VCB, UT2010VCW...
-
Page 2: Warning
• any purpose other than the intended use, • failure to observe the indications and warnings contained in this Manual / Instruction sheet. Comelit Group S.p.A. reserves the right to change the information provided in this Manual / Instruction Sheet at any time and without prior notice. -
Page 3: Table Of Contents
Description ..................4 Replacing the audio/video module with programming restore UT2020 ......................4 backup .................... 31 UT2010VC ....................4 Installation notes (art. UT2020) ............6 Configuring via PC................. 32 Technical specifications ..............7 Errors and indications ..............32 art. UT2020 ....................7 System functions ................33 art. -
Page 4: Description
ULTRA: the new and most technologically advanced entrance panel offering maximum ease of installation. Available in flush-mounted or surface-mounted variants (protrusion from the wall just 10 mm and 35 mm respectively), in silver (art. UT2020 and UT2010VC), black RAL9005 (art. UT2020B and UT2010VCB) and white (art. UT2020W and UT2010VCW). - Page 5 SE+ electric door lock connection NO NC COM relay contacts 2. Loudspeakers V- V+ power supply 3. Colour video camera (with art. UT2020 only) LL bus line connection 4. Speaker volume control 15. Ethernet terminal block, only for use in case of additional 5.
-
Page 6: Installation Notes (Art. Ut2020)
Installation notes (art. UT2020) 90° 90° 90° 50 cm 50 cm 50 cm 175 cm 120° The camera must not be installed in front of light sources, or in places where the filmed subject is against the light. In dim environments, we recommend additional lighting is provided. -
Page 7: Technical Specifications
UT2020 GENERAL DATA Type Modular Product height (mm) Product width (mm) Product depth (mm) Black RAL9005, Transparent Aluminium (art. UT2020), black (art. UT2020B), white Product colour (art. UT2020W) Product weight (g) Coating material type Polycarbonate, Aluminium alloy Flush mounting Yes, with specific accessory... -
Page 8: Art. Ut2010Vc
art. UT2010VC GENERAL DATA Type Modular Product height (mm) Product width (mm) Product depth (mm) Black RAL9005, Transparent Aluminium (art. UT2010VC), black (art. UT2010VCB), Product colour white (art. UT2010VCW) Product weight (g) Coating material type Polycarbonate, Aluminium alloy Flush mounting Yes, with specific accessory Surface mounting Yes, with specific accessory COMPATIBLE SYSTEMS... -
Page 9: Installation
Installation The entrance panel is available in flush-mounted or surface-mounted variants: Flush-mounted installation composition table A = Flush-mounted box B = Rain shield C = Flush-mounted module holder with finishing frame 3110/1 3110/1A 3110/2 3110/2A 3110/3 3110/3A 3110/4 3110/4A UT9181 UT9181B UT9182 UT9184H... -
Page 10: Flush-Mounted Installation
Flush-mounted installation Optional Optional BLACK... -
Page 11: Removing Nameplates (2A) / Module (2B)
CLACK! CLACK! CLACK! CLACK! CLACK! CLACK! The button has a nameplate which can be written on (A); alternatively, an adhesive label can be applied (B). The total thickness of the nameplate + adhesive label must not exceed 0.2 mm. MAX 0,2 mm You can visit the website pro.comelitgroup.com to download the PDF to print the entrance panel name cards, using the pre- cut sheets (C) available in our catalogue (art. -
Page 12: Installation With Side-By-Side Boxes
Installation with side-by-side boxes Before installing the boxes in the wall, fit the spacers. -
Page 13: Wall-Mounted Installation
Wall-mounted installation Optional Optional BLACK... -
Page 14: Removing Nameplates (2A) / Module (2B)
CLACK! CLACK! CLACK! CLACK! CLACK! CLACK! The button has a nameplate which can be written on (A); alternatively, an adhesive label can be applied (B). The total thickness of the nameplate + adhesive label MAX 0,2 mm must not exceed 0.2 mm. You can visit the website pro.comelitgroup.com to download the PDF to print the entrance panel name cards, using the pre- cut sheets (C) available in our catalogue (art. -
Page 15: Installation With Side-By-Side Boxes
Installation with side-by-side boxes... -
Page 16: Connections
Connections Standard connection 1210A 1210 12 VAC/VDC 18 Ω MAX R GND NO NC UT2020 UT2010VC Max 20 m. Local door-opener button. Connection with separate power supply 1210A 1595 1210 120-230 V 12 VAC/VDC 12 VAC/VDC 18 Ω MAX 18 Ω MAX... -
Page 17: Remote Camera Connection (Art. Ut2010Vc Only)
Remote camera connection (art. UT2010VC only) 1210A 1210 12 VAC/VDC 18 Ω MAX R GND NO NC ROSSO UT2010VC NERO BLACK NERO ROSSO BLACK Max 20 m. Local door-opener button. -
Page 18: Module Connection
Module connection For systems with art. UT2020/UT2010VC and power supply unit art. 1210/1210A, the maximum power available for the outdoor entrance panel modules is 3.3 W. Calculate the total power consumption of the modules in your system configuration using the Consumption table. -
Page 19: Connection Of Button Modules Art. Ut9200
1210 12 VAC/VDC 18 Ω MAX R GND NO NC NERO BLACK UT2020 UT2010VC ROSSO UT9200 MAX 8 Max 20 m. Local door-opener button. Max 8 modules (Max 30 modules with additional power supply). Connection of Touchscreen module art. UT9270... -
Page 20: Connection Of Number Keypad Module Art. Ut9279M
Connection of number keypad module art. UT9279M 1210A 1210 12 VAC/VDC 18 Ω MAX R GND NO NC UT2020 UT2010VC UT9279M Max 20 m. Local door-opener button. Connecting digital call module art. UT9260M 1210A 1210 12 VAC/VDC 18 Ω MAX... -
Page 21: Programming
Programming For correct programming, follow the instructions below in order Configure button type Address button modules III. Program user codes Configuring the button type to maintain during normal operation (single/dual) DIP 6: configuring button type: Single button (DIP6 ON). default Dual button (DIP6 OFF, default). -
Page 22: Programming Consecutive Smart User Codes
Programming consecutive smart user codes default DIP 6: configuring button type: Single button (DIP6 ON). Dual button (DIP6 OFF, default). BEFORE you proceed: Set the user code of the apartment S1 S2 ALL DIP-switches to OFF, including you wish to call (for example: 1) DIP 6. -
Page 23: Programming Specific User Codes
Programming specific user codes default DIP 6: configuring button type: Single button (DIP6 ON). Dual button (DIP6 OFF, default). BEFORE you proceed: Set the user code of the apartment S1 S2 ALL DIP-switches to OFF, including you wish to call (for example: 25) DIP 6. -
Page 24: Special Programming Via Dip Switch
Special programming via DIP Switch S1 S2 Make a note of the DIP-switch settings BEFORE you proceed: ALL DIP-switches to OFF, including 1. Set the dip switches DIP 6. in accordance with the function you wish to program (see Special programming table). -
Page 25: Special Programming Table
Special programming table CODE DIP SWITCHES ON FUNCTIONS Audio-visual messages 1,7,8 Czech 1,2,7,8 Hebrew 3,7,8 Polish 1,3,7,8 Catalan 2,3,7,8 Galician 1,2,3,7,8 Basque 2,3,4,7,8 Danish 1,2,3,4,7.8 Norwegian 1,2,5,7,8 Swedish 1,2,3,5,7.8 Italian 4,5,7,8 French 1,4,5,7,8 Spanish 2,4,5,7,8 Dutch 1,2,4,5,7.8 Greek 3,4,5,7,8 English 1,3,4,5,7.8 German 2,3,4,5,7.8... - Page 26 1,2,3,5,8 Light-me time: 60 sec (default) 4,5,8 Light-me time: 120 sec Camera LED light management on self activation (only with art. UT2020) 2,3,6,8 The LED light is always off upon self activation 1,2,3,6,8 The LED light copies the ON/OFF/AUTO mode set for calls (functions 168/169/170) (default) Camera LED light management upon calls (only with art.
-
Page 27: Twilight Sensor
Twilight sensor Camera LED lighting and button backlighting management The twilight sensor is in AUTO mode by default: the camera and button LEDs light up at night and switch off during the day. To change the setting to ON (LEDs always on) or OFF (LEDs Take note of the DIP-switch always off), proceed as... -
Page 28: Checking Twilight Sensor Operation
S1 S2 Reset the configuration of the DIP-switches Checking twilight sensor operation S1 S2 S1 S2 5 sec If it is daytime and you want to check AUTO mode operation for the twilight sensor, you can proceed as follows: 1. Enter programming mode 2. -
Page 29: Adjusting The Brightness Of The Button Leds And The Camera Light
Adjusting the brightness of the button LEDs and the camera light S1 S2 Take note of the DIP-switch settings BEFORE you proceed: 1. Enable brightness control ALL DIP-switches to OFF, including (A) for the camera light (code DIP 6. 171) or (B) for the buttons (code 161) cod. -
Page 30: Light-Me Function
S1 S2 Reset the configuration of the DIP-switches Light-me function Thanks to this function, button backlighting is only enabled on the user’s request, by pressing the LIGHT-ME button on the audio/video module; this saves energy and reduces light pollution. Backlighting management for this button depends on the twilight sensor setting. It is in AUTO mode by default: the LEDs light up at night and switch off during the day. -
Page 31: Replacing The Audio/Video Module With Programming Restore Backup
Replacing the audio/video module with programming restore backup If the audio/video module is replaced, the following instructions must be observed. The procedure should be completed within one hour of removal of the old module. Make a note of the DIP-switch settings Wait for 90 seconds Enter programming mode by moving S2 DIP-switch upwards... -
Page 32: Configuring Via Pc
Configuring via PC All device configurations can be implemented via PC and ViP Manager configuration software, which is available to download free of charge from the website pro.comelitgroup.com (See programming manual) For example: • programming the user codes associated with the buttons •... -
Page 33: System Functions
System functions 1216 6701W 6721W 1214/2C 6701W/8 6741W 6601W 1214/2C 6801W 1214/2C 1210A 1210 UT2020 1216 6701W 6721W 6701W/8 1214/2C (MAX 4) (MAX 4) 6601W (MAX 4) 1214/2C (MAX 4) 6801W 1214/2C 1212/B 1210A 6601W 6601W 1210 6601W/BM 6601W/BM 1212/B... -
Page 34: Operating Distances
6721W 6601W 6721W 6601W 6721W 6601W 6741W 6741W 6741W 6741W 6801W 6801W 6801W 6801W Comelit Art. 260 m 160 m 130 m 70 m 130 m 90 m 50 m 100 m 4577/4579 1 mm² 30 m (850 (525 (425... -
Page 35: Maximum System Expansion
Maximum system expansion Devices 6801W(/BM) 6701W(/BM) 6601W(/BM) 6721W(/BM) 6741W(/BM) 6701W/8 Maximum number of door (Building mode) entry monitors that can be powered from art. 1210A (Kit mode) Call repetition devices that can 1229A 1229A 1229A 1229A 1229A be used 1229 1229 For further information, refer to the manual for Art. -
Page 36: Wiring Diagrams
230V 12 VAC/VDC 18 Ω MAX R GND NO NC UT2020 UT9200 (MAX 8) Max 20 m. Local door-opener button. For external unit configurations (model, number and type of modules) other than those indicated in the diagrams, please refer to the... -
Page 37: System Performance And Layouts
1210A 1210 12 VAC/VDC 230V 18 Ω MAX R GND NO NC 12 VAC/VDC 18 Ω MAX R GND NO NC UT2020 UT9200 (MAX 8) UT2020 UT9200 (MAX 8) 12 VAC/VDC 18 Ω MAX R GND NO NC UT2020 UT9200 (MAX 8) Max 20 m. -
Page 38: Table Of User Codes
Table of user codes Code DIP-switch 1,4,6 1,5,7 1,4,5,6,7 1,6,8 1,4,7,8 2,4,6 2,5,7 2,4,5,6,7 2,6,8 2,4,7,8 1,2,4,6 1,2,5,7 1,2,4,5,6,7 1,2,6,8 1,2,4,7,8 3,4,6 3,5,7 3,4,5,6,7 3,6,8 3,4,7,8 1,3,4,6 1,3,5,7 1,3,4,5,6,7 1,3,6,8 1,3,4,7,8 2,3,4,6 2,3,5,7 2,3,4,5,6,7 2,3,6,8 2,3,4,7,8 1,2,3 1,2,3,4,6 1,2,3,5,7 1,2,3,4,5,6,7 1,2,3,6,8 1,2,3,4,7,8 4,5,7... - Page 39 C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy...
