EasyStand PA-6322
VFD Installation
Set BIOS For VFD power supply

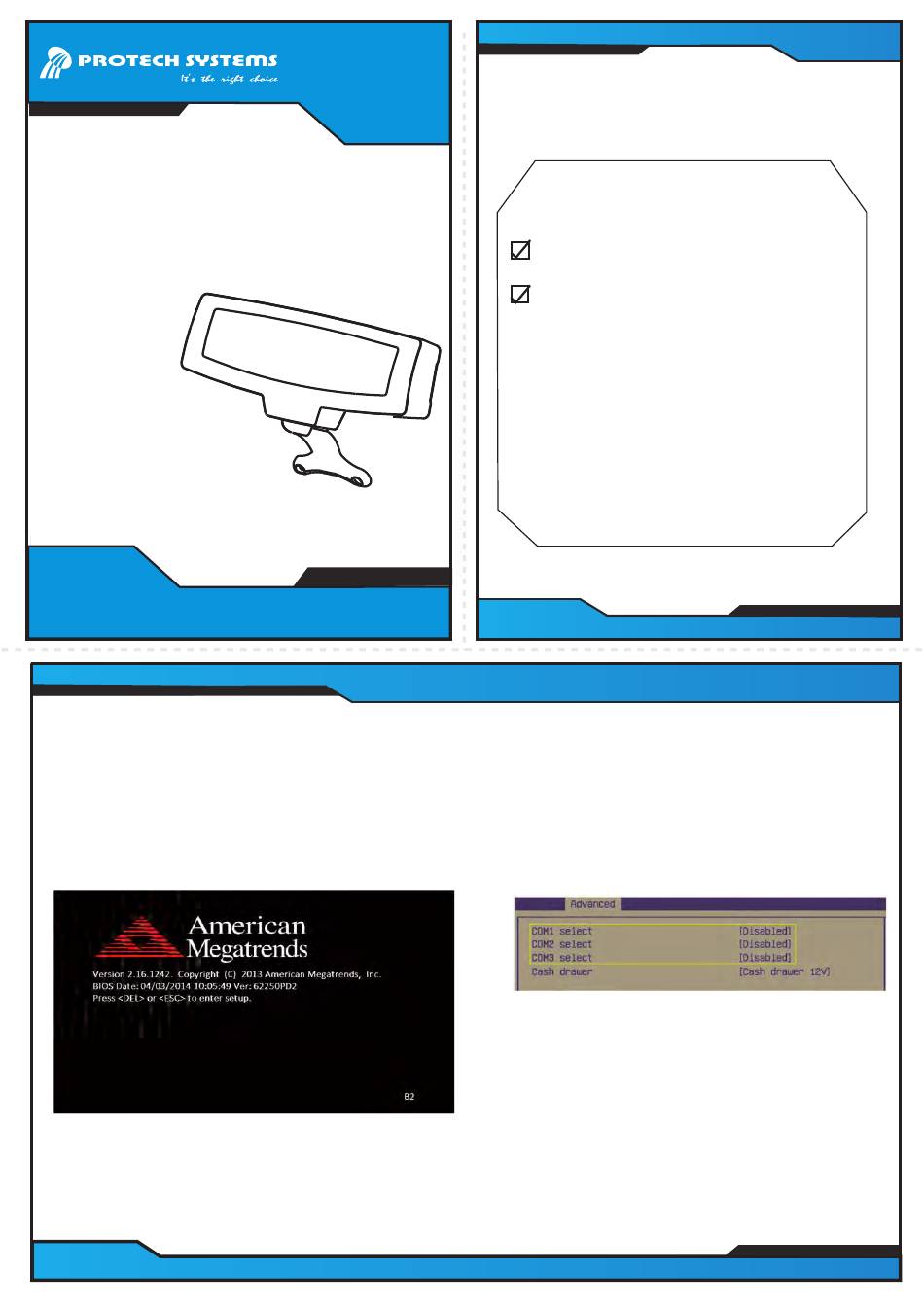

1-1 When the system is powered on, the
BIOS will enter the Power-On Self Test
(POST) routines and the following
message will appear on the lower screen:
As long as this message is present on the
screen,you may press the <Del> key to
access the Setup program.
Manual ver Q1
All Right Reserved Copyright 2066
All Right Reserved Copyright 2016
If you discover any item below was damaged
or lost, please contact your vendor.
Packing List
VFD kit (Assembled Cable)
This Quick Reference Guide
PA-6322 VFD Installation
1-2 Move the cursor by up/down
keys to highlight the [Advanced]
=> [Voltage/RI Adjust Configuration]
menu items.
1-3 Move the cursor to [COM1
select], change the COM1 setting to
[12V] from [Disabled].
X 1
X 1
