POS-6511
Quick
Reference
Guide
Specifications
System
CPU Type
Intel
®
Celeron B810, 1.6 GHz
Intel
®
Core i3-2330E, 2.2 GHz
Core Logic Chipset
Intel
®
HM65 Express Chipset
Memory
1 x 204-pin DDR3 SO-DIMM, up to 4 GB
HDD
1 x 2.5" SATA HDD
SSD
Over or equal to 16 GB
CF
1 x Compact Flash slot for CF type I/II storage
Network
1 x Giga LAN Base-T Fast Ethernet
Power Supply
72~120W power adapter
System Weight
9.5 kg
Dimension (WxHxD)
365 x 363 x 297 mm (14.37" x 14.29" x 11.69")
O.S. Support
Windows 7/ XP/ POSReady 7/ POSReady 2009
I/O Ports
USB Ports
4 x USB 2.0 port, 1 x USB 2.0 port on side bezel
Serial Ports
3 x DB-9 (COM1/2/3), 1 x RJ45 (COM4)
Parallel Port
1 x parallel port (SPP/EPP/ECP)
Keyboard/Mouse
1 x PS/2 port
LAN
1 x 10/100/1000 Mbps
Audio
1 x Line-out
VGA
1 x DB-15 VGA interface
Cash Drawer
1 x RJ11 port, 12/24V selectable
Display
LCD
15" TFT LCD, Max. resolution 1024 x 768
Touch Screen
5-wire analog resistive
Viewing Angle
0 ~ 70 degree
Environment
Operating Temp.
0 °C ~ 35 °C
Storage Temp.
-20 °C ~ 60 °C
Humidity
20% ~ 90%
Ver. Q1
All Right Reserved Copyright 2012
POS-6511
Packing Checklist
If you discover any item below is damaged or
lost, please contact your vendor.
POS-6511
This Quick Reference Guide
AC Power Cord (Optional)
Driver CD
MSR Card Reader (Optional)
i-Button + MSR Card Reader (Optional)
Wireless LAN (IEEE 802.11 b/g) (Optional)
CF (Optional)
VFD (Optional)
System View

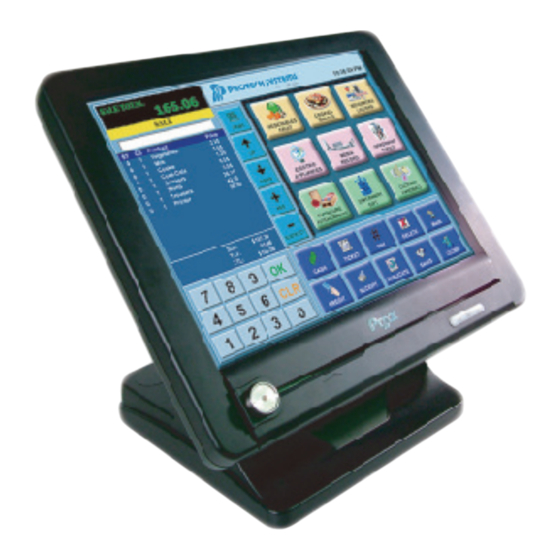

POS-6511
Front View
365
I/O View
POS-6511
.
X 1
X 1
X 1
X 1
X 1
X 1
X 1
X 1
X 1
POS-6511
PIP1230
Side View
(45 )
24
270
Unit: mm
