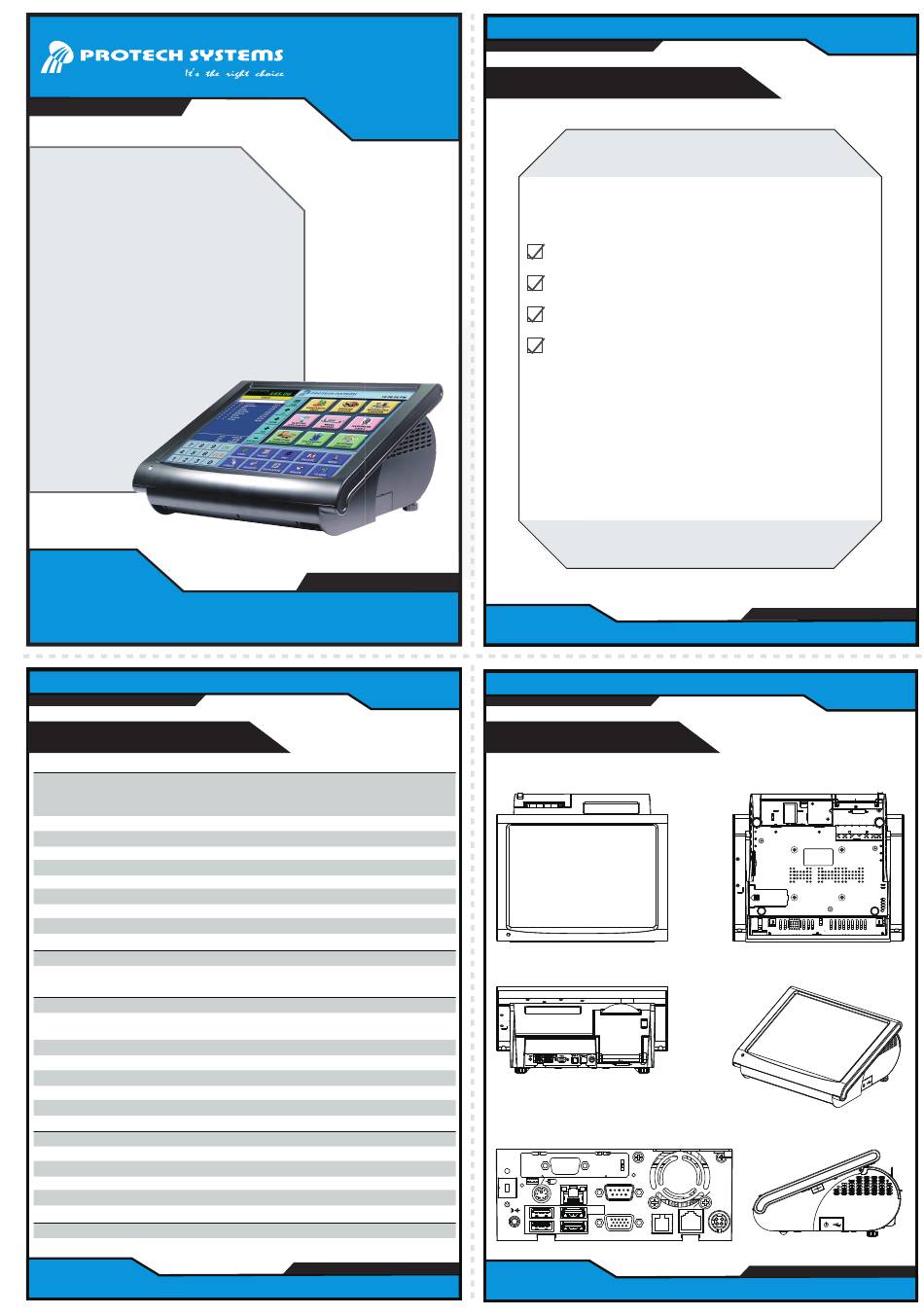

Protech Systems PA-3570 Quick Reference Manual

PA-3570
Quick
Reference
Guide
Specifications
System
CPU Support Intel ® Core™ i3-2120 3.3 GHz, L2 Cache-3MB
Intel ® Pentium
Intel ® Celeron
Memory 1 x DDR3 SO-DIMM Slot (up to 8GB)
Chipset Intel ® H61
Network 10/100/1000 Base-T Fast Ethernet
Power Supply 120~150 Watt DC IN power adapter
System Weight 5.7 kg
Dimension (WxHxD) 356 x 309 x 167 mm
O.S. Support Windows WES7/2009, POSReady 7/2009
Certificate CE/FCC
Storage
HDD 1 x 2.5" SATA HDD
SD/MMC 1 x SATA half-slim type SSD
I/O Ports
USB 4 x USB 2.0 / 1 x USB 2.0 on side bezel
Serial Port 2 x DB-9 (COM 2/3), 1 x RJ45 (COM 1)
+5V/12V selectable
PS/2 1 x PS/2 port (default at keyboard)
LAN 1 x 1RJ-45
VGA 1 x DB-15 VGA interface
Cash Drawer 1 x RJ11 (12V/24V selectable, default at 12V.)
Printer 2" or 3" easy loading thermal printer with auto cutter
Display
LCD 15" TFT LCD
Max. Resolution 1024 x 768
Brightness 250 cd/m²
Touch Screen 5-wire analog resistive
Tile Angle 24 ~ 30°
Environment
Temperature Operating: 0 ~ 35°C; Storage: -20°C ~ 60°C
Humidity 20% ~ 90%
All Rights Reserved. Copyright 2013
PA-3570
® G850 2.9 GHz, L2 Cache-3MB
® G530 2.4 GHz, L2 Cache-2MB
Packing Checklist
If you discover any item below damaged or lost,
please contact your vendor.
PA-3570
This Quick Reference Guide
AC Power Adaptor
Manual/Driver CD
Ve Ver. Q1 Q1
System View
Top View
Rear View
I/O View
DWR2
LAN
0 2
1 3
Bottom View
Side View
Quarter View
COM3
COM2
COM1
USB VGA
DC IN
DWR1
PA-3570
x1
x1
x1
x1
PA-3570
