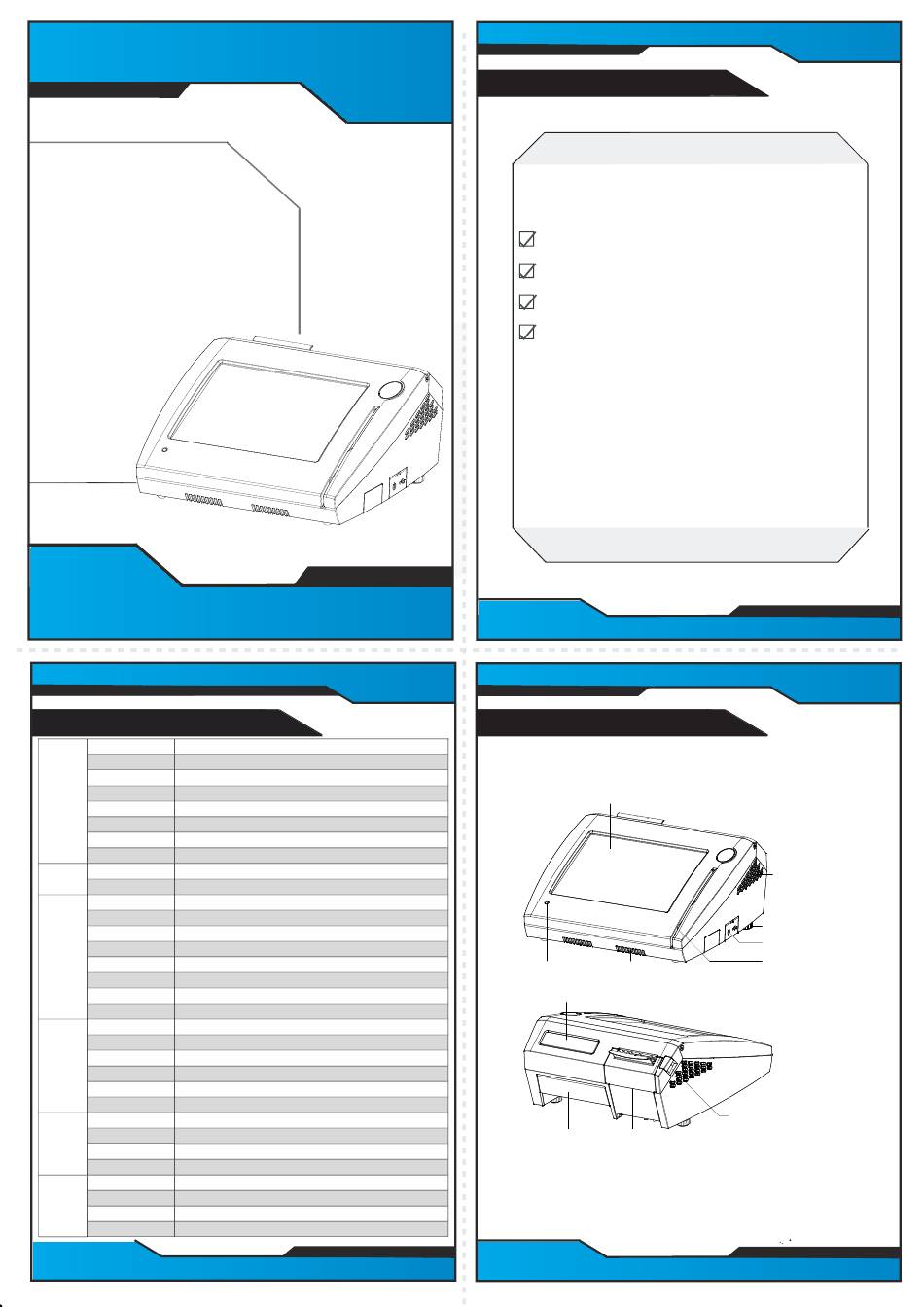

Protech Systems PA-6622 Quick Reference Manual

PA-6622
Quick
Reference
Guide
Specifications
®
CPU Support Intel Celeron
Memory DDR3L SO-DIMM (1 slot, up to 8GB)
Network 10/100/1000 Base-T Fast Ethernet
Power Supply 72~120Watt power adapter
System
Audio 2W speaker
System Weight with power adaptor approx. 7.5kg
Dimension 390 x 320 x 190mm
O.S. Support WIN8 / POSReady7
SATA 1 x 2.5" HDD or SSD
Storage
mSATA 1 x SSD
USB 4 x USB on rear, 1 x USB on side bezel
Serial Port 3 + 1(option) x DB9 (+5V/ 12V selectable)
LAN 1 x RJ45
I/O
VGA 1 x DB15
Port
Line Out 1 x phone jack
Cash Drawer 1 + 1(option Y cable) x RJ11 (+12V or +24V selectable)
DC-in 1 x 4pin DC Power Jack
LPT 1 x DB25(option)
Customer Display VFD, 20 columns and 2 lines, each column is 5 x 7 dots
Printer 2" or 3" easy loading thermal printer with Auto cutter
Periphe
MSR & iButton ISO I,II,III; JIS I,II and support information key
-ral
RFID ISO14443A, Mifare, Felica-Lite
Fingerprint 8-bit grayscale, reader
LCD 1 " TFT LCD
1024x768 / 800x600
Resolution
Display
400 / 230 cd/m²
Brightness
Touch Screen 5-wire Analog resistive
EMC & Safety CE / FCC
Environ
Operating Temp. 0 ~ 35° C
-ment
Storage Temp. -5 ~ 60° C
Humidity 20 ~ 90%
Manual ver Q1
PA-6622
®
J1900
Packing Checklist
If you discover any item below was damaged
or lost, please contact your vendor.
PA-6622
This Quick Reference Guide
AC Power Adaptor
Driver CD

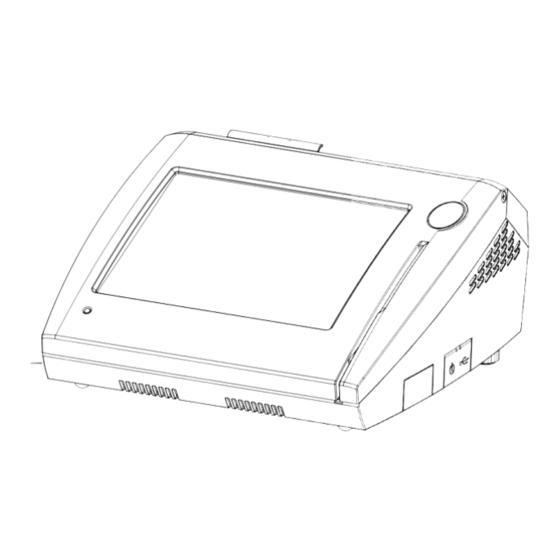

System View
10.4" LCD & Touch Screen
Power LED Ventilation Hole
VFD Customer Display
I/O Port Thermal Printer
(inside the cover)
PA-6622
x
1
X 1
X 1
X 1
PA-6622
PIP1230
Ventilation Hole
Angle Adjustor Foot
Power Button & Side USB
(inside the shield)
MSR Slide Hole
Open Button of Printer Door
