TVS 200 Earbuds
True Wireless TV earbuds
Model: TVC2-EBC, TVC2-EB, TVC2-C
Instruction manual
Use the search function, the navigation (left) or the following links:
Start
"The Sennheiser TVS 200 Earbuds"
"Product overview"
"Quick guide"
"Daily use"
"FAQ/If a problem occurs ..."
"Specifications"
Sonova Consumer Hearing GmbH
Am Labor 1
30900 Wedemark
Germany
www.sennheiser-hearing.com
Version: 01/ 23
Advertisement
Table of Contents
Related Manuals for Sennheiser TVS 200
Summary of Contents for Sennheiser TVS 200

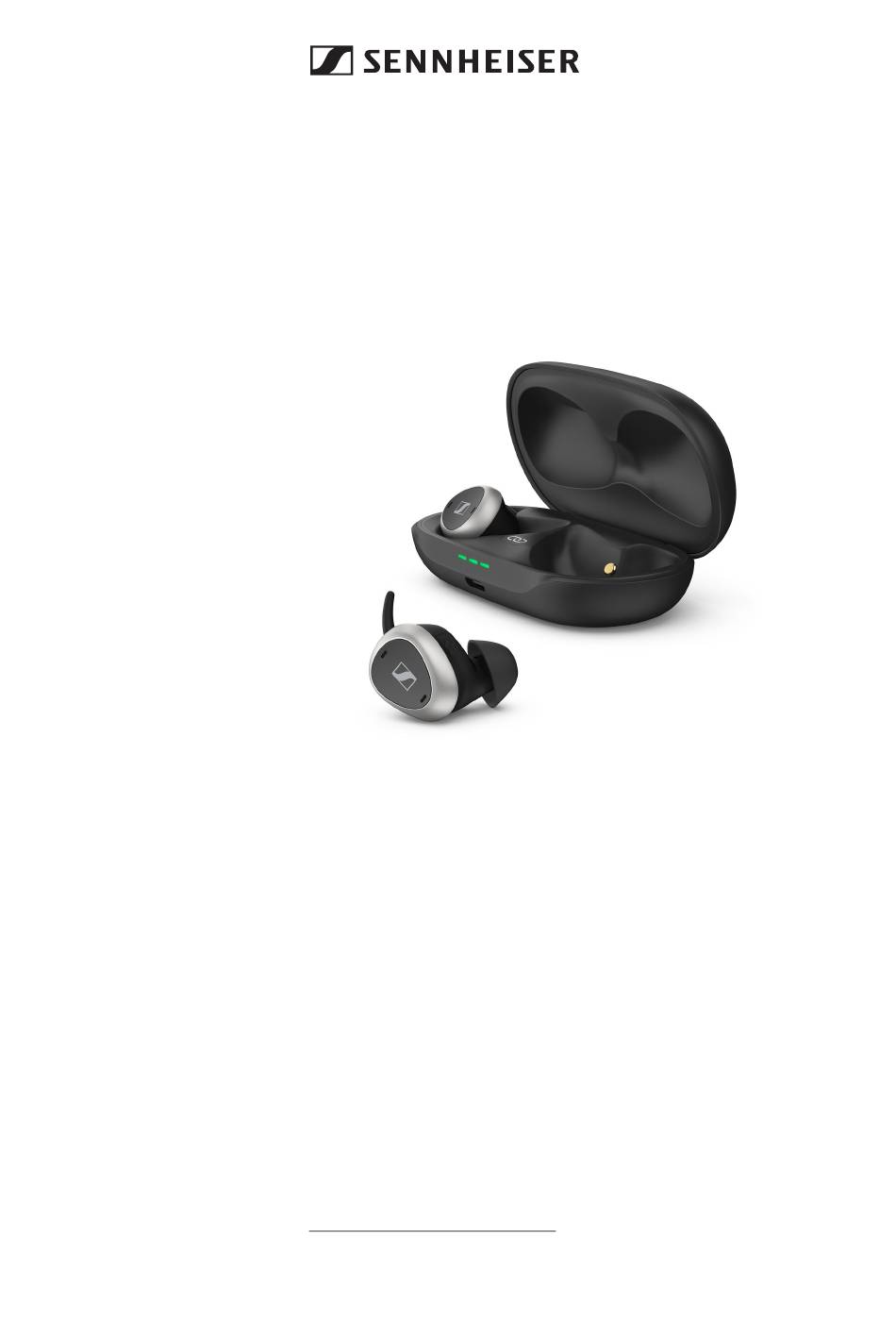

- Page 1 TVS 200 Earbuds True Wireless TV earbuds Model: TVC2-EBC, TVC2-EB, TVC2-C Instruction manual Use the search function, the navigation (left) or the following links: Start “The Sennheiser TVS 200 Earbuds” “Product overview” “Quick guide” “Daily use” “FAQ/If a problem occurs ...” “Specifications”...
-
Page 2: Important Safety Instructions
30 cm (12 inches) to any part of the earbuds or charging case including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result. 2 | Sennheiser TVS 200 Earbuds... - Page 3 Please note that interference can also be caused by power lines, electrostatic discharge, airport metal detectors etc. ▷ Only authorized personnel are allowed to disassemble the devices due to possible electrical hazard. Sennheiser TVS 200 Earbuds | 3...
-
Page 4: Notes On Data Collection And Processing And On Firmware Updates
Bluetooth addresses of paired devices to ensure proper operation. When used with the “Sennheiser TV Clear” app the settings and usage data such as power-on cycles and operating times (e.g. music playback, used speech modes) are encrypted and transferred in an... -
Page 5: Intended Use/Liability
Internet. Intended use/Liability The intended use of the “TVS 200 Earbuds” is to wirelessly connect to Bluetooth® enabled devices such as mobile phones, smartphones or tablets. You can stream the stereo audio signal to the earbuds and make hands-free phone calls. - Page 6 For best results, use the earbuds within line of sight of the connected device. If audio transmission is interrupted, reduce the distance between the earbuds and the connected device and avoid any obstacles between them. 6 | Sennheiser TVS 200 Earbuds...
-
Page 7: Package Contents
Safety guide Online you can find: • Frequently asked questions (FAQ): www.sennheiser-hearing.com/tvs200earbuds • The “Sennheiser TV Clear” app for configuring the earbuds and for additional functions: – Google Play Store: click – Apple App Store: click A list of accessories for the “TVS 200 Earbuds”: www.sennheiser-hearing.com/tvs200earbuds... -
Page 8: Product Overview
Retention for a secure hold Size (1 - 3) and left (L)/right (R) marking Dome The default language for the voice prompts is English. This and other settings can be adjusted using the “Sennheiser TV Clear” app. 8 | Sennheiser TVS 200 Earbuds... - Page 9 Charging contacts of the left earbud Charging contacts of the right earbud Battery light indicator of the right earbud Battery light indicator of the charging case Battery light indicator of the left earbud USB-C charging socket Pairing button Sennheiser TVS 200 Earbuds | 9...
- Page 10 (> 24). All 3 LEDs 2. Connecting the earbuds to a Bluetooth device ▷ Connect the earbuds to your smartphone (or tablet) via Bluetooth (> 14). other device other device Sennheiser TVS 200 other device 10 | Sennheiser TVS 200 Earbuds...
- Page 11 TX). The TV transmitter is available both as a stand-alone product and as a set with the earbuds. ▷ Connect the USB power cable of the transmitter and the audio connection (digital or analog) to your TV. Power digital analog Sennheiser TVS 200 Earbuds | 11...
- Page 12 (> 15). After the first manual pairing, the earbuds automatically connect to the transmitter when they are taken out of the charging case. 3 blue LEDs Short press Hold 2s 12 | Sennheiser TVS 200 Earbuds...
- Page 13 3 blue LEDs Hold 2s 3. Wait until all 3 light indicators flash blue (this can take up to 10 seconds). Pairing mode ends after 8 minutes or when pairing was successful. Sennheiser TVS 200 Earbuds | 13...
- Page 14 1. Open the Bluetooth settings and activate Bluetooth on your smartphone. 2. Wait until you see the “Sennheiser TVS 200” in the list of available devices and select it. Depending on your smartphone, you may have to allow access to your phone contacts through the earbuds.
- Page 15 After pairing, the earbuds connect automatically when you take them out of the charging case. If the transmitter has been purchased as part of the “TVS 200” set, the transmitter and earbuds have already been paired during pro- duction. Simply open the lid of the charging case and continue with the chapter “Daily use –...
- Page 16 The size of the ear adapter may be different for the left and right ear. Make sure that the left ear adapter is assigned to the left earbud and the right ear adapter is assigned to the right earbud (L = left, R = right). 16 | Sennheiser TVS 200 Earbuds...
- Page 17 1. Carefully insert the earbuds into your ears with the dome facing the ear canal and pointing downward. 2. Rotate the retention until it fits snugly and comfortably in the auri- cle. Sennheiser TVS 200 Earbuds | 17...
-
Page 18: Daily Use
To do so, you have to either select “Senn- heiser TVS 200” from the list of paired Bluetooth devices or briefly press the multifunction button on the earbud. • You can also stream from your smartphone if only one earbud has been taken out of the charging case. - Page 19 Long-press to the right (> 1.5 seconds) to increase the speech clarity. ▷ Long-press to the left (> 1.5 seconds) to reduce the sharpness. A voice prompt confirms the changes to the settings, e.g. “Pro- gram 4”. Sennheiser TVS 200 Earbuds | 19...
- Page 20 An important feature of the earbuds is the possibility to hear ambient sounds while streaming. By default, the ambient sound level switches between level 0 (OFF) and 6. ▷ Double tap the right earbud to switch ambient sounds off or on. 20 | Sennheiser TVS 200 Earbuds...
- Page 21 Tap 2x Accepting a call: ▷ Double-tap or short-press Rejecting a call: ▷ Long-press (> 1.5 sec.) Microphone pick-up During a call, your voice is picked up by the microphones of the pri- mary earbud. Sennheiser TVS 200 Earbuds | 21...
- Page 22 Switching between the primary earbuds can take up to 5 sec- onds, and you may experience an interruption. This is normal. To identify the primary earbud in the app, a microphone icon appears below the R or L identification of the earbud. 22 | Sennheiser TVS 200 Earbuds...
- Page 23 To activate these functions, download the “Sennheiser TV Clear” app from the App Store and follow the instructions (> 23). Calls via Bluetooth always have priority over streaming. If, for...
- Page 24 If the lid remains open, the earbuds will not switch off after charging and will discharge the rechargeable battery. Make sure that the charging contacts are free of dirt and debris. 24 | Sennheiser TVS 200 Earbuds...
- Page 25 The light indicator on the charging case flashes to indicate that the charging case is placed correctly. Wireless charging via a Qi charging station can take longer than direct charging via a USB-C cable. Sennheiser TVS 200 Earbuds | 25...
- Page 26 The light indicators dim after 10 seconds when the charging case is not connected to the power supply or when the lid of the charging case is closed. Voice prompts provide information on the remaining battery charge status when the earbuds are worn. 26 | Sennheiser TVS 200 Earbuds...
- Page 27 At the end of its operational lifetime, this product with its built-in rechargeable battery must be disposed of separately from normal household waste. You can find more information here: > 33. Sennheiser TVS 200 Earbuds | 27...
- Page 28 Daily use Firmware update The “TVS 200 Earbuds” can be updated to the latest firmware ver- sion via the app. Updating the firmware helps to keep the earbuds up to date. If you are experiencing functionality issues with your earbuds, first make sure that you are using the latest firmware version.
- Page 29 During initial setup, you can use the volume controls on the transmit- ter to select a comfortable initial volume. To reduce the volume: ▷ Press the volume touch panel –. To increase the volume: ▷ Press the volume touch panel +. Sennheiser TVS 200 Earbuds | 29...
- Page 30 If a problem has occurred, proceed in the following order until the problem is solved and you can use the earbuds again: 1. Perform a soft reset of the “TVS 200 Earbuds” (> 30). 2. Connect the earbuds to the “TV Clear” app to install the latest firmware (>...
-
Page 31: Specifications
5 minutes (with an empty rechargeable battery) for 1 hour of music playback Temperature range operation: +5 to +40 °C storage: –20 to +40 °C Relative air humidity, non- operation: < 85 % condensing storage: < 90 % Sennheiser TVS 200 Earbuds | 31... - Page 32 Bluetooth 4.2, class 1 Transmission frequency 2,400 MHz to 2,483.5 MHz Modulation GFSK, π/4DQPSK, 8DPSK Profiles HFP, AVRCP, A2DP, DID Output power 10 mW (max) Codec Device name Sennheiser TVS 200 Number of active connections 32 | Sennheiser TVS 200 Earbuds...
-
Page 33: Manufacturer Declarations
Recycle electrical and electronic equipment and batteries/recharge- able batteries at the end of their operational lifetime in order to make contained recyclable materials usable and to avoid littering the envi- ronment. Sennheiser TVS 200 Earbuds | 33... - Page 34 Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laborato- ries Licensing Corporation. Other product and company names mentioned in this instruction manual may be trademarks of their respective holders. 34 | Sennheiser TVS 200 Earbuds...
