- Page 1 GEMÜ 205 Electrically operated solenoid valve Operating instructions further information webcode: GW-205...
- Page 2 All rights including copyrights or industrial property rights are expressly reserved. Keep the document for future reference. © GEMÜ Gebr. Müller Apparatebau GmbH & Co. KG 28.04.2022 GEMÜ 205 2 / 24 www.gemu-group.com...
-
Page 3: Table Of Contents
17 Returns ..............18 Declaration of Incorporation according to 2006/42/EC (Machinery Directive) ....... 19 Declaration of conformity according to 2014/30/ EU (EMC Directive) ..........20 Declaration of conformity according to 2014/68/ EU (Pressure Equipment Directive) ...... www.gemu-group.com 3 / 24 GEMÜ 205... -
Page 4: General Information
– Lists 1.3 Definition of terms Risk of electric shock Working medium The medium that flows through the GEMÜ product. 1.4 Warning notes Wherever possible, warning notes are organised according to the following scheme: SIGNAL WORD Type and source of the danger... -
Page 5: Safety Information

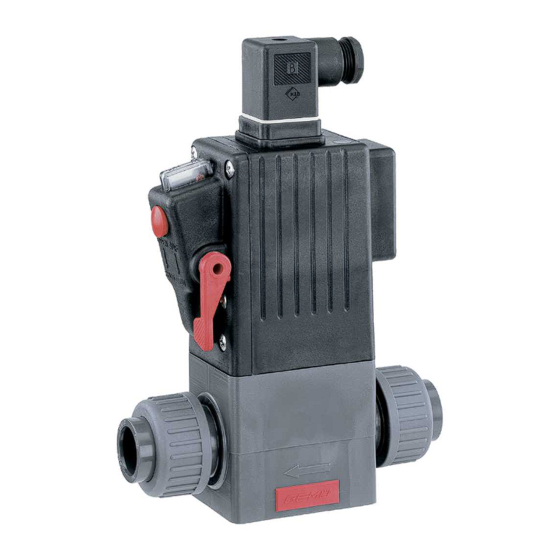

2. Do not paint the bolts and plastic parts of the product. 3.2 Description 3. Carry out installation and commissioning using trained personnel. The GEMÜ 205 directly controlled 2/2-way plastic solenoid 4. Provide adequate training for installation and operating valve has a high performance coil. It is hermetically separated personnel. -
Page 6: Product Label
Traceability number Consecutive number The month of manufacture is encoded in the traceability num- ber and can be obtained from GEMÜ. The product was manu- factured in Germany. The operating pressure stated on the product label applies to a media temperature of 20 °C. The product can be used up to the maximum stated media temperature. -
Page 7: Order Data
2/2-way body 4 Connection type Spigot DIN 5 Valve body material PVC-U, grey 6 Seal material PTFE 7 Control function Normally closed (NC) 8 Voltage 230 V 9 Frequency 50/60 50 - 60 Hz www.gemu-group.com 7 / 24 GEMÜ 205... -
Page 8: Technical Data
EN 55011:1991 (150 kHz to 30 MHz) EN 55014:1993 (148.5 kHz to 30 MHz) 6.5 Mechanical data Protection class: IP 65 Weight: DN 10 DN 15 DN 20 DN 25 DN 32 DN 40 DN 50 0.85 Weights in kg GEMÜ 205 8 / 24 www.gemu-group.com... -
Page 9: Dimensions
Please note: The DC solenoid is designed for unsmoothed voltages, e.g. as obtained from a bridge rectifier. 7 Dimensions 7.1 Actuator Plug rotatable 90° DN 10 DN 15 DN 20 DN 25 DN 32 DN 40 DN 50 Dimensions in mm www.gemu-group.com 9 / 24 GEMÜ 205... - Page 10 Dimensions in mm 1) Connection type Code 0: Spigot DIN Code 30: Imperial butt weld spigot 7.2.2 Threaded socket (code 1, 31) Dimensions in mm 7.2.3 Solvent cement socket (code 2) Dimensions in mm GEMÜ 205 10 / 24 www.gemu-group.com...
- Page 11 Code 0: Spigot DIN Code 1: Threaded socket DIN ISO 228 Code 2: Solvent cement socket DIN Code 7: Union end with insert (socket) – DIN Code 30: Imperial butt weld spigot Code 31: Threaded socket NPT www.gemu-group.com 11 / 24 GEMÜ 205...
-
Page 12: Manufacturer's Information
4. Do not store solvents, chemicals, acids, fuels or similar ment manufacturer. fluids in the same room as GEMÜ products and their spare 2. Solvent cement the valve body to the piping. parts. -
Page 13: Electrical Connection
3. Push the terminal block into the housing of the plug (acc. to DIN EN 175301-803, previously DIN 43650) until it aud- ibly clicks in position. 4. Ensure that the cable is not caught. 5. Tighten the locking screw on the plug. www.gemu-group.com 13 / 24 GEMÜ 205... -
Page 14: Commissioning
NOTICE 4. Check the tightness of the media connections and the solenoid valve itself. ▶ If the torque is too high the thread may be stripped. 11.1 Optical position indicator Valve open Valve closed GEMÜ 205 14 / 24 www.gemu-group.com... -
Page 15: Operation
The operator must carry out regular visual examination of the GEMÜ products depending on the operating conditions and the potential danger in order to prevent leakage and damage. 1. Turn the lever upwards. - Page 16 3. Shut off plant or plant component. 4. Secure plant or plant component against recommission- ing. 5. Depressurize the plant or plant component. 6. Actuate GEMÜ products which are always in the same po- sition four times a year. 13.1 Cleaning the product CAUTION Foreign matter ▶...
-
Page 17: Troubleshooting
Replace solenoid valve Armature blocked Replace solenoid valve Solenoid valve leaking Valve seat leaking Replace solenoid valve Solenoid valve does not close Manual override engaged/actuated Check the position of the manual override and close if necessary www.gemu-group.com 17 / 24 GEMÜ 205... -
Page 18: Removal From Piping
The equipment is subject to pressure! goods can be processed only when this note is completed. If ▶ Risk of severe injury or death. no return delivery note is included with the product, GEMÜ Depressurize the plant. ● cannot process credits or repair work but will dispose of the Completely drain the plant. -
Page 19: Declaration Of Incorporation According To 2006/42/Ec (Machinery Directive)
18 Declaration of Incorporation according to 2006/42/EC (Machinery Directive) Declaration of Incorporation according to the EC Machinery Directive 2006/42/EC, Annex II, 1.B for partly completed machinery GEMÜ Gebr. Müller Apparatebau GmbH & Co. KG Fritz-Müller-Straße 6-8 74653 Ingelfingen-Criesbach, Germany declare that the following product Make: GEMÜ... -
Page 20: Declaration Of Conformity According To 2014/30/Eu (Emc Directive)
19 Declaration of conformity according to 2014/30/EU (EMC Directive) EU Declaration of Conformity in accordance with 2014/30/EU (EMC Directive) GEMÜ Gebr. Müller Apparatebau GmbH & Co. KG Fritz-Müller-Straße 6-8 74653 Ingelfingen-Criesbach, Germany declare that the product listed below complies with the safety requirements of the EMC Directive 2014/30/EU. -
Page 21: Declaration Of Conformity According To 2014/68/Eu (Pressure Equipment Directive)
AD 2000 Note for products with a nominal size ≤ DN 25: The products are developed and produced according to GEMÜ process instructions and quality standards which comply with the requirements of ISO 9001 and ISO 14001. According to Article 4, Paragraph 3 of the Pressure Equipment Directive 2014/68/EU these products must not be identified by a CE-label. - Page 22 GEMÜ 205 22 / 24 www.gemu-group.com...
