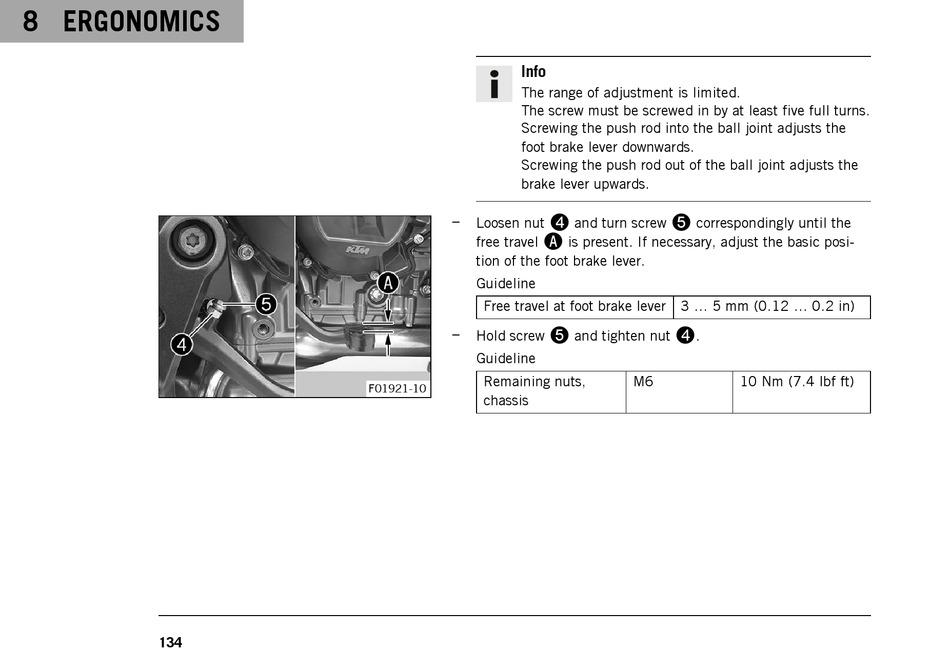

8 ERGONOMICS
134
Info
The range of adjustment is limited.
The screw must be screwed in by at least five full turns.
Screwing the push rod into the ball joint adjusts the
foot brake lever downwards.
Screwing the push rod out of the ball joint adjusts the
brake lever upwards.
–
Loosen nut
A
free travel
tion of the foot brake lever.
Guideline
Free travel at foot brake lever 3 ... 5 mm (0.12 ... 0.2 in)
–
Hold screw
Guideline
Remaining nuts,
F01921-10
chassis
4 5
and turn screw correspondingly until the
is present. If necessary, adjust the basic posi-
5 4
and tighten nut .
M6 10 Nm (7.4 lbf ft)
