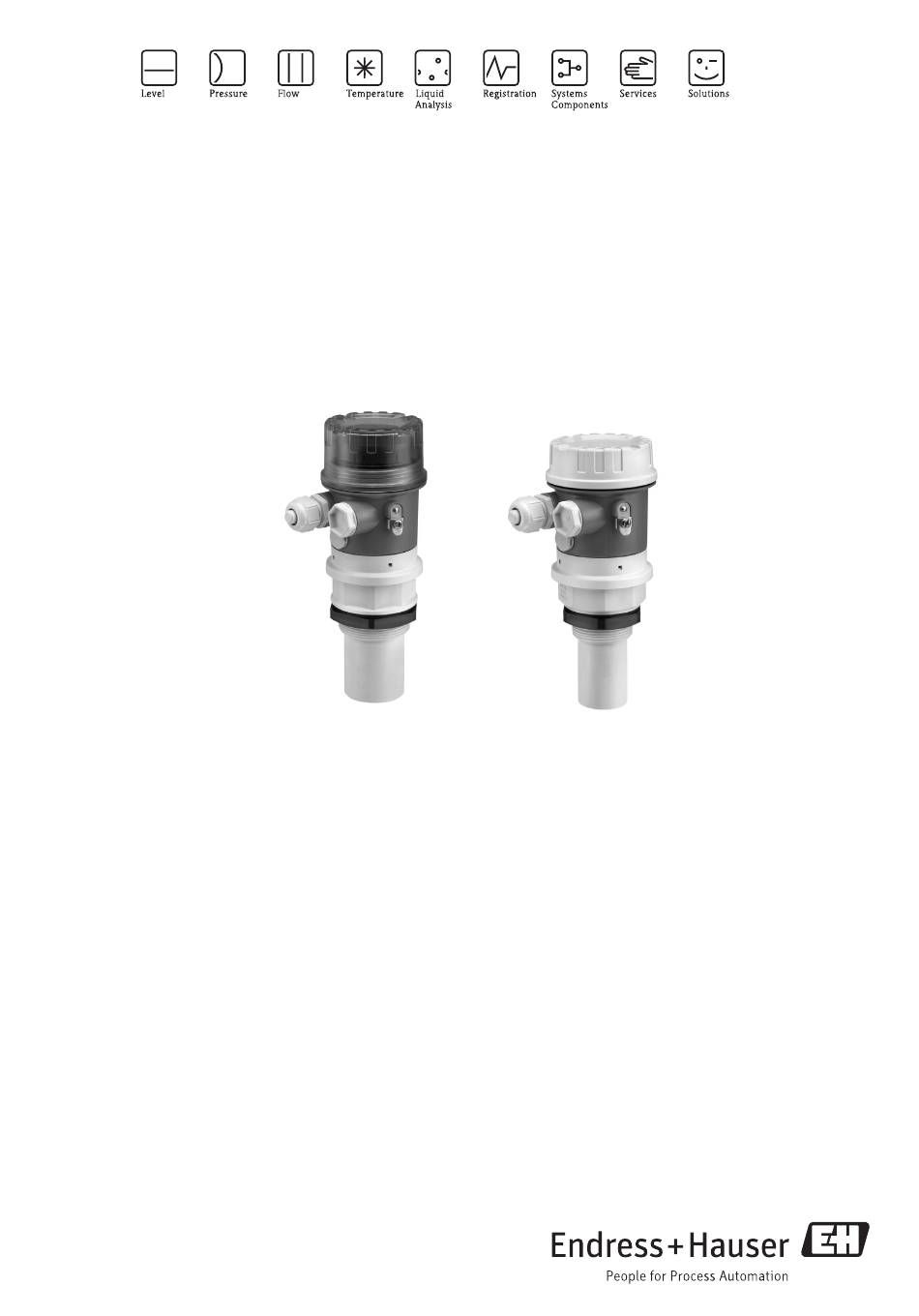

Technical Information

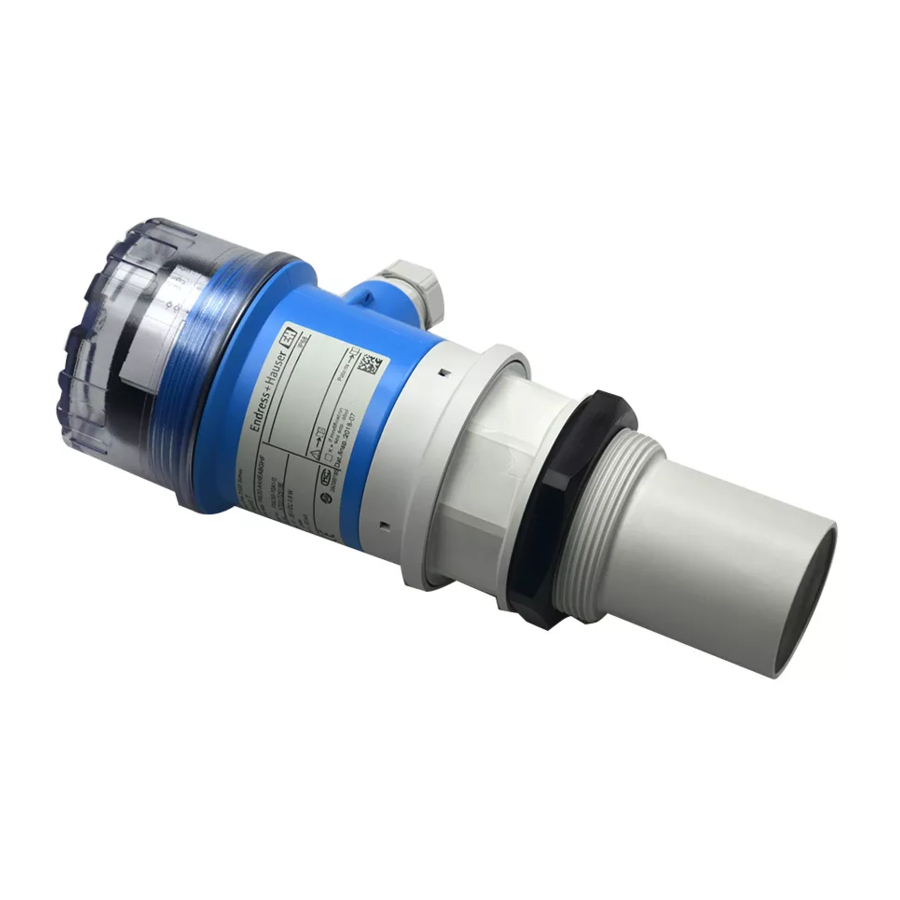

Prosonic T FMU30
Ultrasonic Level Measurement
Compact transmitters for non-contact level measurement of fluids,
pastes and coarse bulk materials
Application
• Continuous, non-contact level measurement in fluids,
pastes, sullages and coarse bulk materials
• System integration via 4 to 20mA
• Maximum measuring range:
– 1½" sensor: 5 m (16 ft) in fluids
2 m (6 ft) in bulk materials
– 2" sensor: 8 m (26 ft) in fluids
3.5 m (11 ft) in bulk materials
TI00440F/00/EN/15.14
71225633
Заказывайте на сайте: www.tinnova.ru/endress_hauser/ || Эл. почта: info@tinnova.ru
Features and benefits
• Quick and simple commissioning via menu-guided on-
site operation with four-line plain text display;
7 languages selectable
• Envelope curves on the on-site display for simple
diagnosis
• Linearization function (up to 32 points) for conversion
of the measured value into any unit of length, volume
or flow rate
• Non-contact measurement method minimizes service
requirements
• Installation possible from thread G 1½" or NPT 1½"
upwards
• Integrated temperature sensor for automatic
correction of the temperature dependent sound
velocity
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Prosonic T FMU30
Summary of Contents for Endress+Hauser Prosonic T FMU30
- Page 1 Technical Information Prosonic T FMU30 Ultrasonic Level Measurement Compact transmitters for non-contact level measurement of fluids, pastes and coarse bulk materials Application Features and benefits • Continuous, non-contact level measurement in fluids, • Quick and simple commissioning via menu-guided on- pastes, sullages and coarse bulk materials site operation with four-line plain text display;...
-
Page 2: Table Of Contents
Prosonic T FMU30 Table of contents Function and system design..... 3 Weight ......... . . 14 Housing design . -
Page 3: Function And System Design
Prosonic T FMU30 Function and system design Measuring principle 20 mA 100% 4 mA L00-FMU30-15-00-00-xx-001 Blocking distance Distance from sensor membrane - product surface Empty distance Span (full distance) Level Sensor Max. range fluids Max. range bulk materials 1½" 0.25 m (0.8 ft) 5 m (16 ft) 2 m (6.6 ft) -
Page 4: Equipment Architecture
Prosonic T FMU30 Equipment architecture The complete measuring system consists of: ENDRESS + HAUSER RMA 422 L00-FMU30xxx-14-00-06-xx-008 PLC (programmable logic controller) Computer with operating tool (e.g. FieldCare) Commubox FXA291 and ToF Adapter FXA291 Operating and display module Prosonic FMU30 Transmitter power supply unit RMA42 or RN221N On-site operation •... -
Page 5: Input
0 dB Waves 5 to 10 dB Strong turbulence (e.g. stirrers) 10 to 20 dB Foaming Please contact your Endress+Hauser sales representative. Bulk material surface Attenuation Hard, rough (e.g. rubble) 40 dB Soft (e.g. peat, dust-covered clinker) 40 to 60 dB... -
Page 6: Operating Frequency
Prosonic T FMU30 R [m] A [dB] L00-FMU3xxxx-05-00-00-xx-100 Sensor 2" Sensor 1½" Attenuation (dB) Range (m) Example • Strong turbulence surface approx. 50 dB • No dust formation 0 dB • Filling curtain in detection range 10 dB • Temperature diff. < 20 °C (68 °F) 0 dB ... -
Page 7: Power Supply
Prosonic T FMU30 Power supply Terminal compartment The terminals are located underneath the housing cover. Display L00-FMU30xxx-04-00-00-xx-001 1 Terminals 2 Optional: display 3 Internal earth terminal 4 External earth terminal Terminal assignment T 0.5A L- L+ L00-FMU30xxx-04-00-00-de-015 1 Power 2 Fuse as per IEC 60127, T 0.5 A 3 Plant ground 3 4...20 mA... -
Page 8: Supply Voltage
...), dilute bases (caustic soda, ...), oils, greases, slurries, pastes, ... High vapor pressures or outgassing media (ethanol, acetone, ammonia, ...) can influence the accuracy. If conditions like these are present, please contact your Endress+Hauser sales representative. according to EN 61298-2... -
Page 9: Installation
Prosonic T FMU30 Installation Installation variants L00-FMU30xxx-17-00-00-xx-002 A Installation with counter nut counter nut (PC) supplied for G1½ and G2 instruments B Installation with sleeve 1 sealing (EPDM) supplied C Installation with installation bracket D Installation with screw in flange... -
Page 10: Installation Conditions For Level Measurements
Prosonic T FMU30 Installation conditions for level measurements 1/6D L00-FMU30xxx-17-00-00-xx-005 • Do not install the sensor in the middle of the tank (3). We recommend leaving a distance between the sensor and the tank wall (1) measuring 1/6 of the tank diameter. -
Page 11: Installation Conditions For Flow Measurements
Prosonic T FMU30 Installation conditions for flow • Install the instrument at the inflow side (B), as close above the maximum water level H as possible (take measurements into account the blocking distance BD). • Position the instrument in the middle of the channel or weir. -
Page 12: Blocking Distance, Nozzle Installation
Prosonic T FMU30 Blocking distance, Install the instrument at a height so that the blocking distance BD is not undershot, even at maximum fill level. nozzle installation Use a pipe nozzle if you cannot maintain the blocking distance in any other way. The interior of the nozzle must be smooth and may not contain any edges or welded joints. -
Page 13: Environment
Prosonic T FMU30 Environment 20 °C to +60 °C (4 °F to +140 °F) Ambient temperature range Use a protective cover, in order to protect the sensor from direct sun or rain ä 26, "Weather protection cover". 40 °C to +80 °C (40 °F to +176 °F) -
Page 14: Mechanical Construction
Prosonic T FMU30 Mechanical construction Design; dimensions max. 76 max. 76 (2.99) (2.99) ø85 ( 3.35) ø ø85 ( 3.35) ø 65 mm 65 mm " G 1½ " NPT " 1½ " ø50 (1.97) ø39 (1.54) mm (in) L00-FMU30xxx-06-00-00-xx-006 A Sensor 1½"... -
Page 15: Materials
Prosonic T FMU30 Materials L00-FMU3xxxx-16-00-00-xx-001 Pos. Part Material Cover (grey) Cover (transparent) O-ring EPDM Ground terminal: Screws Spring washer Clamp 304 (1.4301) Holder 301 (1.4310) Nameplate Polyester O-ring EPDM Sensor (in contact with process) Matching Layer (in contact with process) -
Page 16: Operability
Prosonic T FMU30 Operability Display and operating The LCD module for display and operation is located beneath the housing cover. Open the cover to operate elements the device. FEU31 4...20mA Display L00-FMU30xxx-07-05-xx-xx-000 Display symbol Display (rotatable) Plug-in module Function keys... - Page 17 Prosonic T FMU30 Function of the keys Key(s) Meaning (The keys to press are displayed in grey.) Navigate upwards in the selection list Edit numeric value within a function Navigate downwards in the selection list Edit numeric value within a function Navigate to the left within a function group Navigate to the right within a function group, confirmation.
-
Page 18: On-Site Operation
Remote operation Operation with FieldCare FieldCare is Endress+Hauser's FDT based Plant Asset Management Tool. It can configure all intelligent field devices in your plant and supports you in managing them. By using status information, it also provides a simple but effective means of checking their health. - Page 19 Prosonic T FMU30 Menu-guided commissioning: Signal analysis via envelope curve: Endress+Hauser Заказывайте на сайте: www.tinnova.ru/endress_hauser/ || Эл. почта: info@tinnova.ru...
-
Page 20: Certificates And Approvals
Prosonic T FMU30 Certificates and Approvals CE mark The measuring system meets the legal requirements of the EC-guidelines. Endress+Hauser confirms the instrument passing the required tests by attaching the CE-mark. Ex approvals • ATEX • IECEx • CSA C/US • NEPSI Additional safety instructions must be observed for applications in hazardous areas. -
Page 21: Ordering Information
Options which are mutually exclucive are not marked. FMU30 - Endress+Hauser supplies DIN/EN flanges made of stainless steel AISI 316L with the material number 1.4404 or 1.4435. With regard to their temperature stability properties, the materials 1.4404 and 1.4435 are grouped under 13E0 in EN 1092-1 Tab. -
Page 22: Scope Of Delivery
Prosonic T FMU30 Scope of delivery • Instrument according to the version ordered • Short instructions KA01054F; additional documentations on the supplied CD-ROM • For certified instrument versions: Safety Instructions, Control- or Installation drawings • Counter nut (PC): option 50, versions GGF/GHF, ä 21 "Ordering information"... -
Page 23: Screw In Flange
Prosonic T FMU30 Screw in flange A0019281 1 Screw in flange 2 Nozzle 3 Sensor 4 Sealing ring EPDM (supplied) Screw in flange FAX50 015 Material: DN50 PN10/16 A, steel flange EN1092-1 DN80 PN10/16 A, steel flange EN1092-1 DN100 PN10/16 A, steel flange EN1092-1 2"... -
Page 24: Cantilever With Mounting Frame Or Wall Bracket
Prosonic T FMU30 Cantilever with mounting frame or wall bracket A0019566 Installation with cantilever and wall bracket Installation with cantilever and mounting frame Cantilever Mounting frame Wall bracket Cantilever 35 (1.4) 75 (2.9) 75 (2.9) 100 (3.9) 35 (1.4) mm (in) - Page 25 Prosonic T FMU30 Mounting Frame 3.2 (0.13) 60 (2.36) ø33.7 (1.3) 4 (0.16) 20 (0.8) 55 (2.17) (3.94) 130 (5.12) 150 (5.91) mm (in) A0019279 Height Material Weight Order Code 700 (27.6) galv. steel 919791-0000 3.2 kg (7.06 lbs) 700 (27.6) 316Ti (1.4571)
-
Page 26: Weather Protection Cover
Prosonic T FMU30 Weather protection cover A Weather protection cover is recommended for outdoor mounting. 140 (5.51) ø110 (4.33) 114 (4.49) 220 (8.66) 200 (7.87) mm (in) L00-FMU30-00-00-00-xx-000 Foam pad Material Order No. Weight Operating conditions 50 °C to +150 °C (58 °F to +302 °F) -
Page 27: Commubox Fxa291
Prosonic T FMU30 Commubox FXA291 The Commubox FXA291 connects Endress+Hauser field instruments via the service interface to the USB interface of a personal computer or a notebook. For details refer to TI00405C/07/EN. Note! For the FMU30 you need the "ToF Adapter FXA291" as an additional accessory.
