- Page 1 SCXI-1166...

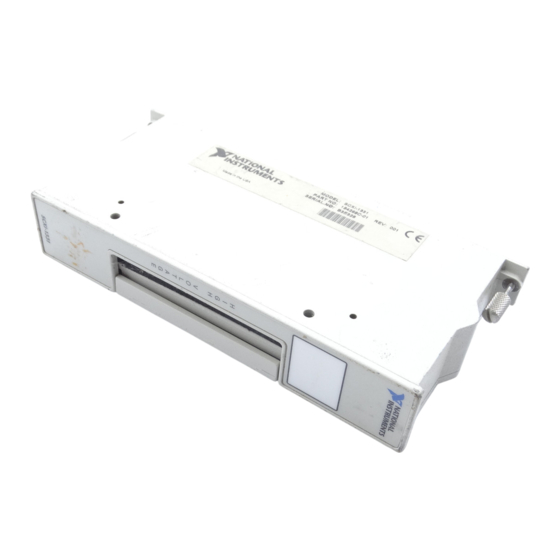

- Page 2 Getting Started Guide to determine when to install the terminal block. Introduction The SCXI-1366 terminal block installs in front of the SCXI-1166 switch module and has screw terminals that provide access to each of the 32 relays. Connections for the trigger output and trigger input signals also are available.
-
Page 3: Unpack The Terminal Block
Store the terminal block in the antistatic package when not in use. 2. Verify the Components Make sure you have the following: ❑ SCXI-1366 terminal block ❑ SCXI chassis ❑ SCXI-1166 switch module ❑ Number 2 Phillips-head screwdriver ❑ 1/8 inch flathead screwdriver ❑ Wire cutter ❑... -
Page 4: Connect Signals
When connecting the signals, refer to the connection diagram in Figure 2. Tighten the two 10-32 × 3/4 inch screws on the strain-relief bar, leaving enough space for the signal wires. Snap the top cover onto the base. © National Instruments Corporation NI SCXI-1366 Installation Guide... - Page 5 1 Strain-Relief Opening 6 Rear Connector 2 Safety Ground Lug 7 Thumbscrews 3 Strain-Relief Bar 8 10-32 × 3/4 Inch Screw 4 Terminal Block Top Cover 9 Signal Wires 5 Screw Terminals Figure 1. SCXI-1366 Terminal Block NI SCXI-1366 Installation Guide ni.com...
- Page 6 CH 29 CH 28 CH 27 CH 26 CH 25 CH 24 0-3.3 V TRIGGERING TRIG OUT 5.5 V MAX USE SHIELDED COAX CABLE TRIG IN Figure 2. SCXI-1366 Terminal Block Signal Connections © National Instruments Corporation NI SCXI-1366 Installation Guide...
-
Page 7: Install The Terminal Block
4. Install the Terminal Block To connect the SCXI-1366 terminal block to the SCXI-1166 front panel, complete the following steps: Connect the terminal block front connectors to its mating connectors on the terminal block. Tighten the top and bottom thumbscrews on the back of the terminal block rear panel to hold it securely in place. -
Page 8: Compliance And Certifications
Directive (EMC) ........89/336/EEC Note Refer to the Declaration of Conformity (DoC) for this product for any additional regulatory compliance information. To obtain the DoC for this product, click Declarations of Conformity Information at ni.com/certification © National Instruments Corporation NI SCXI-1366 Installation Guide... - Page 9 National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering National Instruments products, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your CD, or ni.com/patents.
