Installation Guide
4.

Installation

4.1

Location

The 1050 Control is designed for installation in climate
controlled living spaces. Place the unit in a central location
with good circulation.
For proper temperature sensing, avoid exposing the 1050
Control to heat radiated from lamps, sun light, fireplaces or
any other radiant heat source.
Avoid locations close to windows, behind doors or alcoves
with poor air circulation, adjoining outside walls, or doors
that lead to the outside.
Select a location that prevents the 1050 Control from being
directly exposed to air currents from supply registers or
ceiling fans. Mount the 1050 Control on a section of interior
wall that does not contain hot or cold water pipes or duct
work.
Important: The 1050 Control utilizes a 7" color touch
screen. This screen generates heat which is vented out the
top of the 1050 Control utilizing natural convection. If an air
source is directed at or from above, the indoor temperature
may be biased.

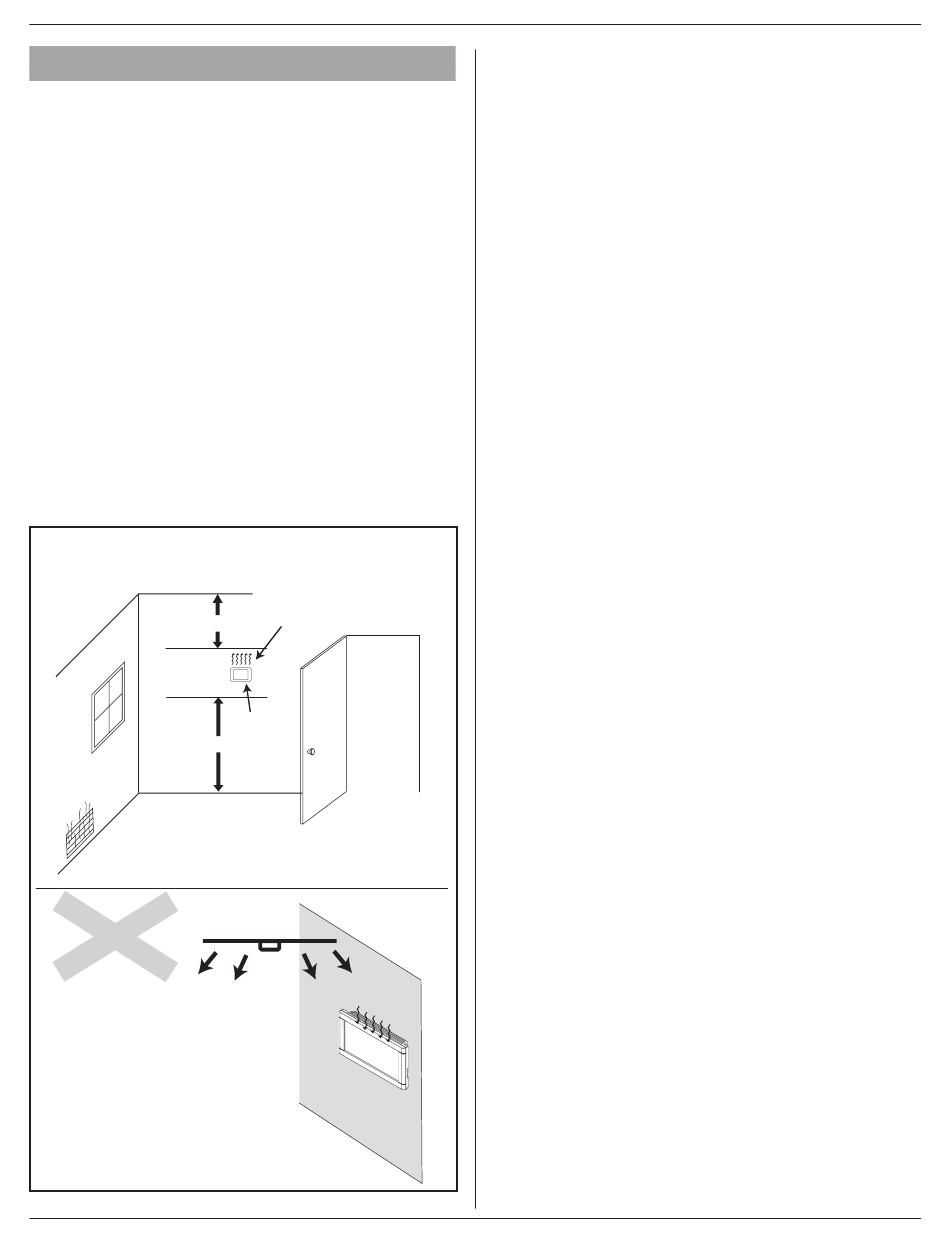

FIGure 1. PLACeMeNT OF THe 1050
Correct
Placement
2 FEET
Optimum
Zone
5 FEET
Incorrect
Problematic Air Patterns
Placement
Locate the control in an
area with minimal air flow
patterns thereby avoiding
interuption of natural heat
dissipation
4
Natural heat
dissipation
from the
Touch Screen
Onboard
Thermistor
4.2

Network Connections

To take advantage of the full range of features on the 1050
Control, it should be connected to the Internet. This is
possible using either a wireless or a wired connection.
Wireless Connections
If the 1050 Control will be connected to the Internet using
the built-in wireless feature, choose a mounting location
that ensures adequate signal strength from the Internet
router.
Tips to Help Maximize Signal Strength:
— Mount the 1050 Control within 30 feet of wireless
router
— Install 1050 Control with no more than three interior
walls between it and the router.
— Locate the 1050 Control where electromagnetic
emissions from other devices, appliances, and wiring
cannot interfere with system communication.
— Locate the 1050 Control in open areas, not near metal
objects, or near structures. (i.e. doors, appliances,
entertainment centers or shelving units).
— Locate the 1050 Control further than two inches away
from any pipes, duct work, or other metal obstructions.
— Locate the 1050 Control in an area which minimizes
metal obstructions and concrete or brick walls
between the 1050 Control and the router.
Incorrect
Refer to the 1050 Control's User Guide for additional
Problematic Air Patterns
Placement
information on connecting to the Internet.
Wired Connections
The 1050 Control may be connected to the Internet using
its built-in RJ-45 connector. When using a wired connection,
verify that a CAT 5 or better Ethernet cable with a male RJ-
45 connector is present from the router to the 1050 Control.
Locate the control in an
area with minimal air flow
patterns thereby avoiding
interuption of natural heat
dissipation
18-HD80D1-3-EN
