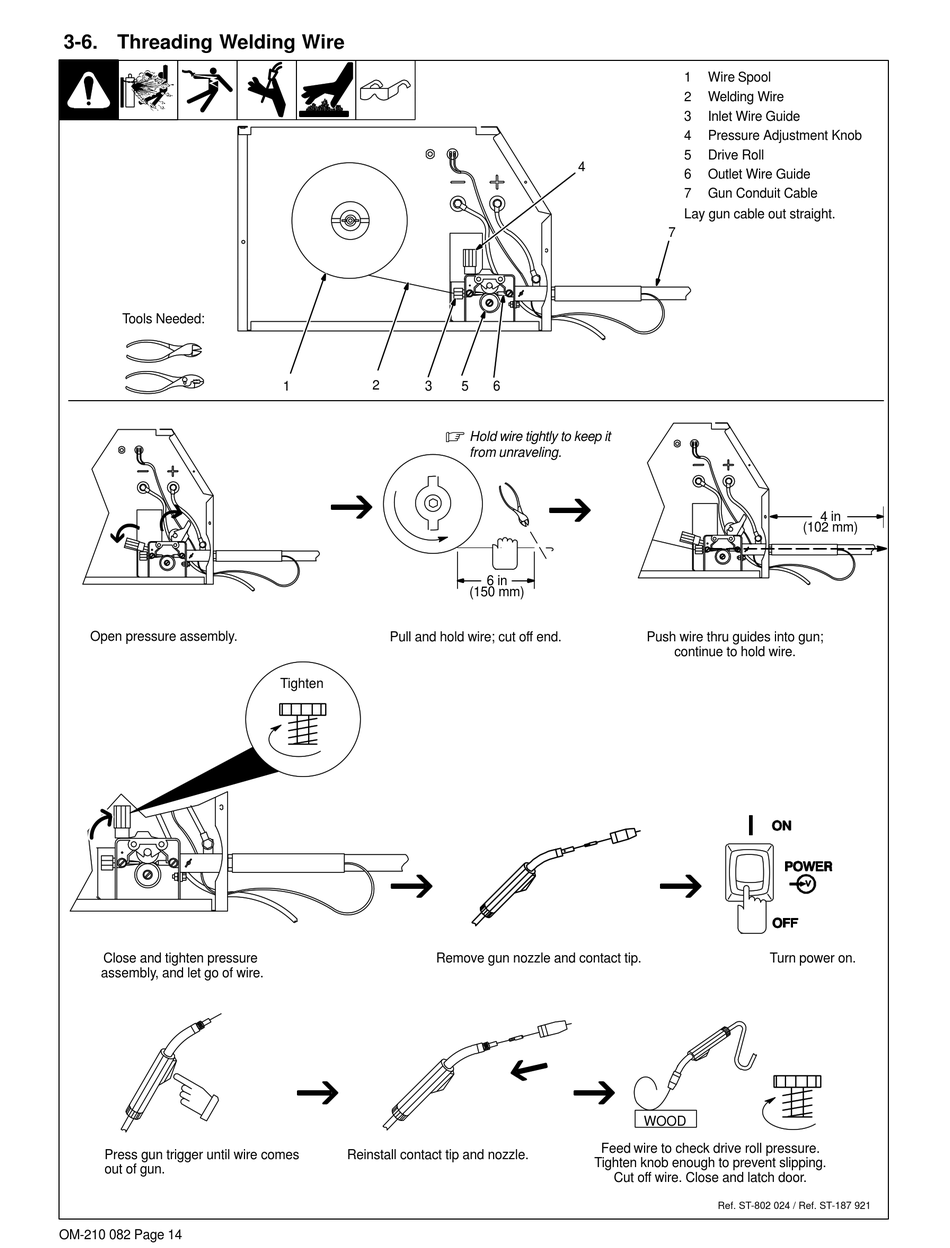

3-6. Threading Welding Wire

Tools Needed:
Open pressure assembly.
Close and tighten pressure
assembly, and let go of wire.
Press gun trigger until wire comes
out of gun.
OM-210 082 Page 14
2
1 3
.
Pull and hold wire; cut off end.
Tighten
Remove gun nozzle and contact tip.
Reinstall contact tip and nozzle.
4
5 6
Hold wire tightly to keep it
from unraveling.
6 in
(150 mm)
Feed wire to check drive roll pressure.
Tighten knob enough to prevent slipping.
Cut off wire. Close and latch door.
1 Wire Spool
2 Welding Wire
3 Inlet Wire Guide
4 Pressure Adjustment Knob
5 Drive Roll
6 Outlet Wire Guide
7 Gun Conduit Cable
Lay gun cable out straight.
7
4 in
(102 mm)
Push wire thru guides into gun;
continue to hold wire.
Turn power on.
WOOD
Ref. ST-802 024 / Ref. ST-187 921
