Fan Assist Dry (On Some Models)

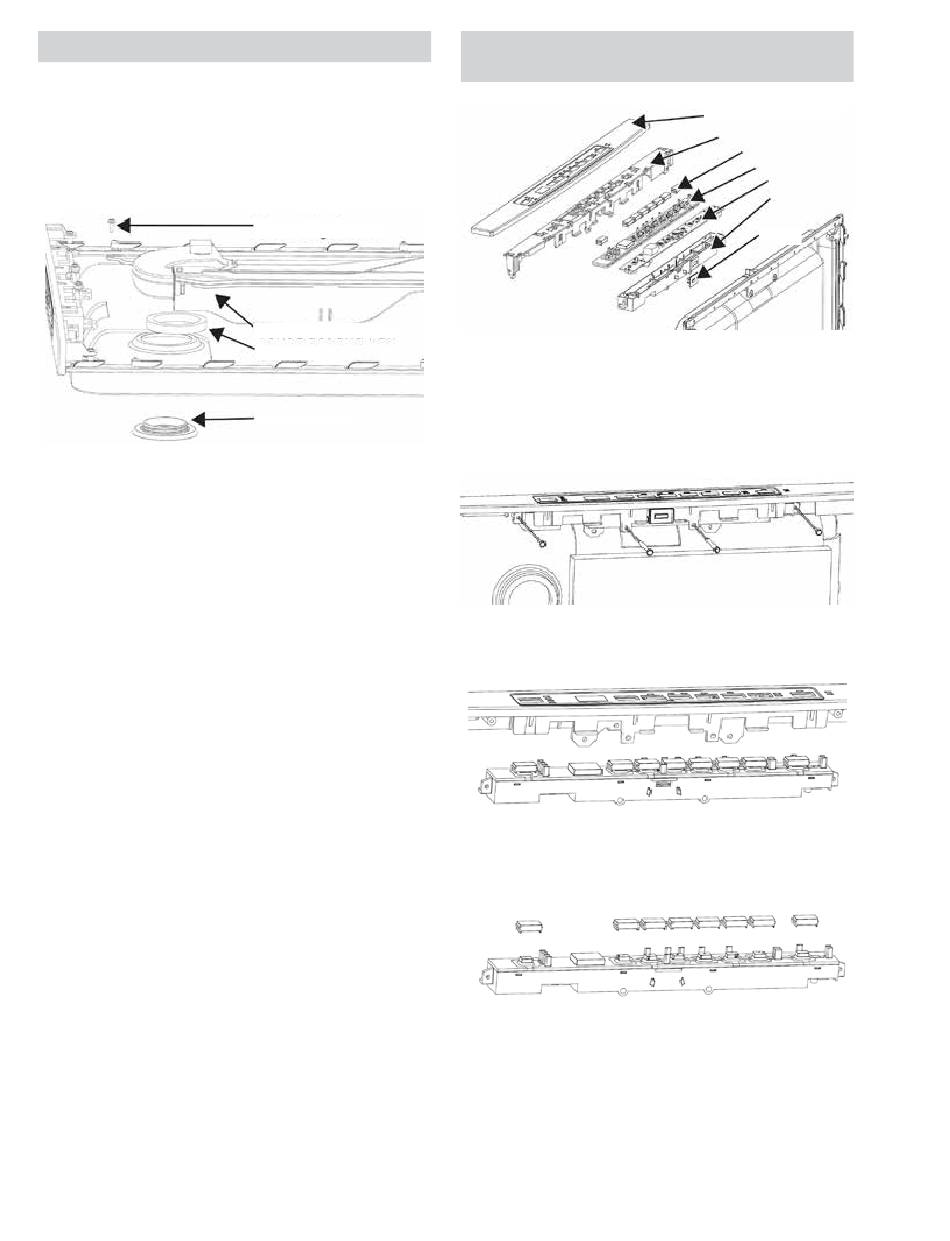

A pocket handle and fan assist dry are new to the
plastic tub line in model GDP615.
The dry components are identical to the dry
system used in stainless steel tub models since
2013 (see below).
Mounting Screw
Vent Duct and Fan
Gasket
Vent Cover
– 34 –
Top Control Panel, UI, Light Pipe and
Buttons
Access the User Interface (UI), Control Covers,
Buttons and Light Pipe
1. Remove and separate the door.
2. Remove four 1/4-inch hex-head screws.
3. The console cover and bottom cover will drop
down from the control panel.
4. The buttons, and light pipe with silicone pad
will be removed from the bottom cover to
access the UI.
Console Cover
Console
Buttons
Light Pipe
UI
Bottom
Cover
Lens
