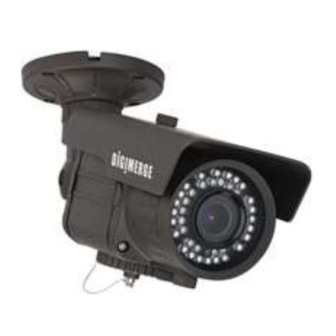

- Page 1 INSTRUCTION MANUAL Ultra Resolution Day & Night Bullet Camera Ultra Resolution Day & Night Bullet Camera Models: DPB14TLX P/N 01.BSM.11.0070220A Please read this manual thoroughly before use and keep it handy for future reference. V1.01...
-
Page 2: Specifications
• VIDEO OUT(BNC) 0.001 Lux w/Sense-Up at x256 • Test Monitor Output 0 Lux w/IR LED • 2.8-10.5mm Varifocal Day/Night Lens F1.4 • 600 TV lines(Color) of resolution • Octagon junction box compatible SPECIFICATIONS General DPB14TLX 1/3” Sony Super HAD(tm) II CCD Image Sensor H: 768 V: 494 Effective Pixel H: 5.59mm V: 4.68mm Effective Pixel Area 2:1 Interlace NTSC Scan System H: 15.734KHz, V: 59.94Hz... -
Page 3: Installation
MEASUREMENTS INSTALLATION 1a) Loosen the thread nut with the included allen key and turn the camera base 100.9 mm 101.5 mm counter clockwise to remove it from the 4.0" 4.0" camera mount. 1b) Mount the camera base to the surface. NOTE: The camera base is compatible with 88.0 mm 298.6 mm... -
Page 4: Camera Adjustment
CAMERA ADJUSTMENT CAMERA ADJUSTMENT Menu Setup LENS Using this function, you can control screen brightness. 1. Highlight 'LENS' in the main setup menu 2. Press the ENTER to access the DC lens setup menu. 3. After completing setting update, highlight 'RETURN' to save setting and return to previous menu Service Connector output. - Page 5 CAMERA ADJUSTMENT CAMERA ADJUSTMENT SENSE-UP BACKLIGHT (BLC) The BLC menu is used to adjust backlight compensation function to sharpen subjects in backlight situations EXPOSURE SHUTTER AUTO BRIGHTNESS ----|---- 50 MIDDLE EXPOSURE SENSE-UP AUTO 1. Highlight 'BLC' in the exposure setup menu. SHUTTER AUTO BRIGHTNESS ----|---- 50...
- Page 6 CAMERA ADJUSTMENT CAMERA ADJUSTMENT Wide Dynamic Range (E-WDR) SETUP 1. LENS MANUAL D-WDR : The D-WDR menu is used to adjust dynamic range of the camera electronically. 2. EXPOSURE This is especially useful in high contrast scenes in order to brighten up 3.
- Page 7 CAMERA ADJUSTMENT CAMERA ADJUSTMENT Digital Noise Reduction (3D DNR) SPECIAL. This function reduces the background noise in a low luminance environment. 1. Highlight 'SPECIAL' in the main setup menu. 1.Highlight '3DNR' in the main setup menu. SETUP 1. LENS MANUAL SETUP MANUAL 2.
- Page 8 CAMERA ADJUSTMENT CAMERA ADJUSTMENT D-EFFECT: Applies digital effects to camera image. 1. Highlight 'D-EFFECT' in the SPECIAL setup menu. Notes SPECIAL • When the CAM TITLE is OFF no title will be displayed on the monitor even if you had previously setup a name. This is the master display setting. 1.
- Page 9 CAMERA ADJUSTMENT CAMERA ADJUSTMENT PRIVACY: Hide an area so that it is not displayed on the monitor. MOTION: You can monitor activity more efficiently, because a signal is generated by the camera whenever motion is detected. Visual notification is also available. 1.
-
Page 10: Troubleshooting
TROUBLESHOOTING Refer to the following table if you are experiencing trouble with your camera. Contact an authorized technician if the table does not provide you with a solution to the trouble. Nothing appears on the screen. Check that the power cord and line connection between the camera and monitor are connected properly. Check that you have properly connected VIDEO cable to the camera VIDEO output jack.
