Summary of Contents for Digimerge DPV34D

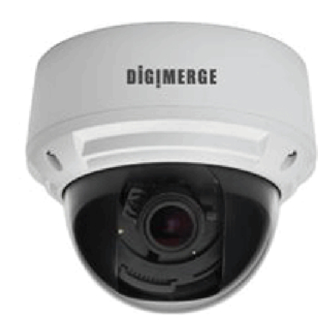

- Page 1 Polaris Vision3 Day & Night Dome Camera www.digimerge.com V2.0...
- Page 2 INSTRUCTION MANUAL Polaris Vision3 Day & Night Dome Camera Vandal Model: DPV34D / DPV24TLXR Indoor Model: DPD34D Please read this manual thoroughly before use and keep it handy for future reference.
- Page 4 -ii-...
- Page 5 -iii-...
-
Page 6: Specifications
• 1/3” Sony Ex-View™ II 960H • Camera Mounting: Surface / Semi-Flush Mounting • Excellent low light performance using Polaris Vision3 • 0.03Lux/F1.2 (Color) DPV34D • 0.00002Lux w/Sense-Up at x512 • Vandal Dome Model • 700+ TV lines of resolution •... - Page 7 MEASUREMENTS 3.4" 87 mm Ø 0.1" 3.5 mm 3/4’’ -14 NPS thread 5.1" 3.9" (130 mm) 100.0 mm Vandal Dome Dimensions Base hole positions 100° 112 mm 137° 4.4 in 123° 5.1" 130 mm Underside Base hole positions Indoor Dome Dimensions 27 mm 39 mm 1.1 in...
-
Page 8: Packing Contents
PACKING CONTENTS Indoor Dome package contains the following: Camera in housing ---------------------------------1 Camera Locking screws (PA3 Type) -----------2 Instruction guide (This Document) -------------1 Locking Conduit Allen Key Surface & Flush Mounting Templates----------2 Screw RCA - BNC test cable ------------------------------1 Junction Box Plate ----------------------------------1 Mounting screw pack ------------------------------1 Vandal Dome package contains the following: Camera in housing ---------------------------------1... -
Page 9: Junction Box Installation Types
JUNCTION BOX INSTALLATION TYPES 2S FITTING a. 2S Fitting requires only 2pcs of 2S/4S screws. Note: You have a reduced space in which to hide cables using this type of Screws installation. Recommended for indoor dome only. Cable Entry 4S FITTING a. - Page 10 VANDAL DOME FITTINGS Wall Mount - model # MNTV2XW Pendant Mount - model # MNTV2XC Pendant Cap - model # MNTV2XPC Junction Box Mount - model # MNTV2XB Replaces the need for the camera base. Mount for either Vandal or Indoor Dome. Compatible with ceiling conduit installations.
-
Page 11: Installation. Vandal Dome
INSTALLATION. VANDAL DOME ATTENTION - If using DC power, follow the correct polarity as marked on the power cable. 1) Loosen the three tamper screws using the provided allen key. Lift the dome cover. Note: If you plan to use conduit fitting, remove conduit cap using the provided conduit key. - Page 12 INSTALLATION. VANDAL DOME 4) Remove camera cover by squeezing the back and front of the cover (as indicated by the arrow indicators) at the same time and lifting it up and away from the lens. Arrow 5) Insert the included video test cable into the RCA jack and connect to a test monitor to set up camera.
- Page 13 INSTALLATION. INDOOR DOME (Surface Mounting) ATTENTION - If using DC power, follow the correct polarity as marked on the power cable. 1a) Press down on the tab marked with an arrow to lift up the dome cover slightly 1b) While pressing on tab, twist the dome cover counter clockwise just a few degrees to release dome cover from back clips.
- Page 14 INSTALLATION. INDOOR DOME (Semi-Flush Mount) ATTENTION - If using DC power, follow the correct polarity as marked on the power cable. 1a) Press down on the tab marked with an arrow to lift up the dome cover slightly 1b) While pressing on tab, twist the dome cover counter- clockwise to release dome cover 1c) Remove the camera base by unscrewing the base locking screws (indicated by a padlock markings)
-
Page 15: Camera Adjustment
CAMERA ADJUSTMENT RCA Service Connector Use supplied RCA - BNC cable OSD function joystick. Pressing down If you require BNC output. on joystick acts as ENTER function. MENU TREE SUMMARY EXPOSURE • AUTO • HIGH LUMINANCE • MODE • BRIGHTNESS • LOW LUMINANCE • MODE •... -
Page 16: Setup Menu
CAMERA ADJUSTMENT OSD MENU control Press down on the function joystick to access the setup menu. Joystick has 4 directional buttons. Press down on the middle of the joystick to select menu options. • Main setup menu is displayed on the monitor screen. SETUP MENU SETUP MENU EXPOSURE AUTO PICT ADJUST WHITE BAL ATW DAY/NIGHT AUTO PRIVACY ... - Page 17 CAMERA ADJUSTMENT EXPOSURE SETUP MENU EXPOSURE AUTO PICT ADJUST WHITE BAL ATW DAY/NIGHT AUTO Changes the output exposure settings a choice of AUTO(default) or MANUAL. PRIVACY MOTION DET OTHERS • AUTO EXIT SAVE ALL AUTO SETUP HIGH LUMINANCE MODE AE+AUTO IRIS BRIGHTNESS LOW LUMINANCE MODE...
- Page 18 CAMERA ADJUSTMENT MANUAL SETUP MODE SHUT SHUT 1/60 (DB) RETURN • MANUAL MODE: SHUT / SLOW Lets you select combination of exposure modes. SHUT: When MODE is set to SHUT, select shutter speed in x / second 1/60 ,1/100, 1/250,1/500,1/1000,1/2000, 1/4000,1/10000 Default setting is 1/60 SHUT: When MODE is set to DSS The shut speed can be 2,4,8,16,32,64,128,256 Default setting is 2 AGC: Set a fixed gain value for the AGC db 6,12,18,24,30,36,42,44.8 -13-...
-
Page 19: Pict Adjust
CAMERA ADJUSTMENT PICT ADJUST SETUP MENU EXPOSURE AUTO PICT ADJUST WHITE BAL ATW DAY/NIGHT AUTO PRIVACY MOTION DET Picture and display control settings OTHERS EXIT SAVE ALL PICT ADJUST MIRROR EZOOM ... -
Page 20: White Bal
CAMERA ADJUSTMENT ZOOM: 000-255 Default 0 PAN: 000-1023 Default 512 TILT: 000-512 Default 256 Note: Zoom must be higher than 0 to use Pan and Tilt settings. • LEVEL: 000-063 Screen brightness. • SHARPNESS: 000-015 Screen sharpness. • HUE 000-100 : Adjust the HUE value • ... - Page 21 CAMERA ADJUSTMENT ATW FRAME: x0.50 / x1.00 / x1.50 / x2.00 Sets pull in frame for magnification Default setting is X0.50 ENVIRONMENT: INDOOR / OUTDOOR Set the pull in frame of ATW Default setting is OUTDOOR • PUSH Use white balance regardless of the subject conditions. • USER1/2 User defined Blue and Red gain adjustment USER1 WB USER2 WB B-GAIN...
-
Page 22: Wdr Setup
CAMERA ADJUSTMENT SETUP MENU EXPOSURE AUTO PICT ADJUST WHITE BAL ATW DAY/NIGHT AUTO PRIVACY Wide Dynamic Range. MOTION DET OTHERS EXIT SAVE ALL WDR SETUP MODE LEVEL CLIP LEVEL SCALE RETURN • ... - Page 23 CAMERA ADJUSTMENT DNR MODE LEVEL RETURN • DNR MODE: 2D+3D / 3D / 2D / OFF Noise reduction Filter mode. LEVEL: OFF/LOW/MIDLOW/MID/MIDHIGH/HIGH Adjustment of the filter strength. Default setting is LOW DAY/NIGHT AUTO / BW / EXT /COLOR SETUP MENU EXPOSURE AUTO PICT ADJUST ...
-
Page 24: Auto / Center
CAMERA ADJUSTMENT • AUTO BURST: ON / OFF Selects whether to output the burst signal when night mode has been identified. DELAY CNT: 000-255 Night/Day identification transfer time. DAY - NIGHT: 000-255 Threshold for Night status from day status. NIGHT - DAY: 000-255 Threshold for the Day status from night status. • BW SETUP: Allows additional Smart IR settings to be enabled. B/W SETUP SMART IR SETUP SMART IR ON ... - Page 25 CAMERA ADJUSTMENT PRIVACY OFF / ON SETUP MENU EXPOSURE AUTO PICT ADJUST WHITE BAL ATW DAY/NIGHT AUTO PRIVACY MOTION DET OTHERS EXIT SAVE ALL Hide an area so that it is not displayed on the monitor. PRIVACY AERA SEL 1 / 15 MODE POSITION COLOR...
-
Page 26: Motion Det
CAMERA ADJUSTMENT POSITION: When selected area selection screen appears: NEXT: PUSH ENTER Move the joystick to move the corners (you can create any 4-sided shape). The selected side is highlighted by a small box. To select the next corner, press ENTER. To return to privacy menu, press enter repeatedly. COLOR: BLACK, RED, GEEEN, BLUE, YELLOW, CYAN, MAGENTA, WHITE. Sets the colors of the mask frames. - Page 27 CAMERA ADJUSTMENT MOTION DET MOTION DET DETECT SENSE BLOCK DISP DETECT AREA MONITOR AREA RETURN MOTION DET: OFF / ON. Turn on or off the motion detection. Default is OFF DETECT SENSE: 0-127 Sets the motion detection sensitivity level. BLOCK DISP: ON/OFF: Displays blocks in areas where motion is detected. DETECT AREA: Select area of the screen to enable / disable motion detection. DETECT AREA Grid areas: Motion detection enabled Transparent: Motion detection disabled EXIT: HOLD ENTER By default the entire area is enabled for detection. Using the movement arrows you move the 2x2 size block positions around the screen. Press the enter button to toggle this area to enable/diable motion detection. Hold down the enter button...
-
Page 28: Monitor Area
CAMERA ADJUSTMENT MONITOR AREA : Allows you to configure up to 4 motion detection areas. Areas will be highlighted on the screen and flash when motion is detected within them. Areas will not flash if motion is detected in areas that have been disabled using DETECT AREA. MONITOR AREA AERA SEL 1 / 4 MODE BOTTOM LEFT RIGHT RETURN AREA SEL: Select area to adjust. 1/4, 2/4, 3/4, 4/4 When enabled, the box colors are: 1 Pink, 2 Green, 3 Blue, 4 Yellow When areas overlap, the area with the lowest number takes priority MODE: OFF / ON. Disable / Enable area TOP: 000-015 Position of the top of the area BOTTOM:... -
Page 29: Manual / Auto
CAMERA ADJUSTMENT OTHERS SETUP MENU EXPOSURE AUTO PICT ADJUST WHITE BAL ATW DAY/NIGHT AUTO PRIVACY MOTION DET OTHERS EXIT SAVE ALL Miscellaneous camera functions. OTHERS LANGUAGE ENGLISH LENS AUTO SYNC CAM TITLE ... - Page 30 CAMERA ADJUSTMENT OFF / ON • CAM TITLE Select a camera title to be shown on the screen. CAMERA TITLE SETUP CAMERA ABCDEFGHIJKLMNOPQRSTUV WXYZ0123456789-!#$%&’ ()_`.:;<=> @^*./^*X+/ CHR1 CHR2 CLR POS RETURN Use Up/Down/Left/Right to move around. CLR will clear info. POS allows you to change the title position.
-
Page 31: Version Info
CAMERA ADJUSTMENT • VERSION Gives version information regarding current camera software. VERSION INFO MCU VER V1.0.0 NORMAL ROM VER V1.0.0 RETURN • CAMERA RESET This will reset all settings for all menus to manufacturer defaults. EXIT / SAVE ALL SETUP MENU EXPOSURE AUTO PICT ADJUST WHITE BAL ATW ... -
Page 32: Troubleshooting
TROUBLESHOOTING Follow the steps below if you are experiencing trouble with your camera. Contact Digimerge Technical Support if the issue persists. • Nothing appears on the screen. ¤ Check that the power cable is connected properly and that the voltage is correct. ¤ Check that you have properly connected VIDEO cable to the camera VIDEO output jack and to the monitor/DVR. • The image on the screen is unclear. ¤ Is the lens or dome cover stained with dirt? Clean lens or dome cover with soft, clean cloth. ¤ Re-position the camera if necessary. ¤ Adjust the Zoom and Focus screws as needed. • The image on the screen is dark. ¤ If you have an intermediate device, set the impedance to 75Ω / Hi-z. ¤ Adjust the monitor contrast & brightness controls.
