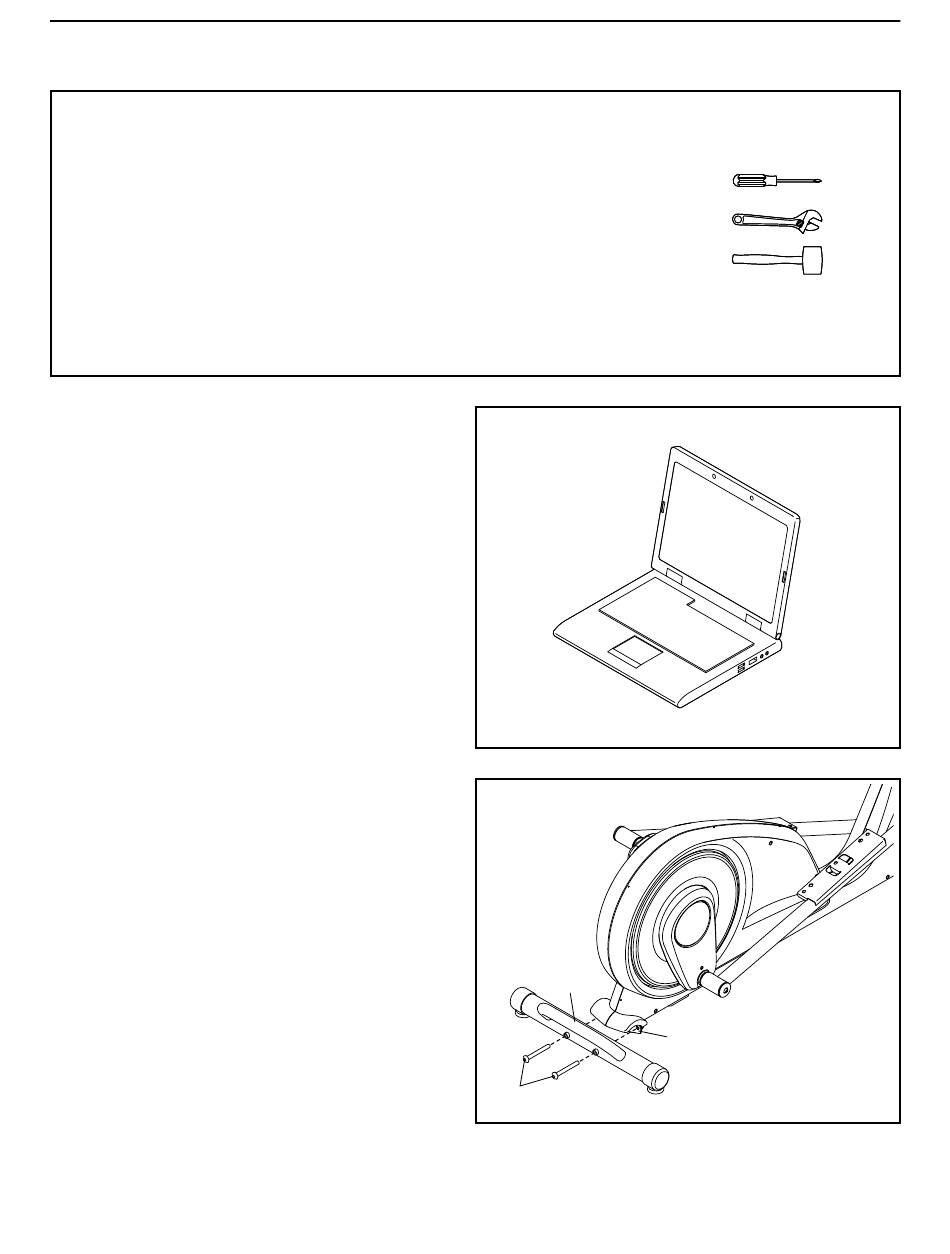

ASSEMBLY
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you fi nish all assembly steps.
• Left parts are marked "L" or "Left" and right parts
are marked "R" or "Right."
• To identify small parts, see page 5.
1. To register your product and activate your
warranty in the UK, go to iconsupport.eu. If
you do not have internet access, complete the
warranty registration card in the warranty booklet
and send it by registered post to the address on
the back cover of the warranty booklet.
To register your product and activate your
warranty in Australia, email or post the
following information to the email address or
postal address on the front cover of this manual.
• your receipt (make sure to keep a copy)
• your name, address, and telephone number
• the model number, serial number, and name
of your product (see the front cover of this
manual)
2. If there is a shipping tube (not shown) attached
to the Frame (1), remove the screws (not shown)
and then remove the shipping tube. Discard the
screws and the shipping tube.
With the help of a second person, place some of
the packing materials (not shown) under the rear
of the Frame (1).
Attach the Rear Stabilizer (4) to the Frame (1)
with two M10 x 82mm Screws (70).
Then, remove the packing materials from under
the rear of the Frame (1).
• In addition to the included tool(s), assembly
requires the following tool(s):
one Phillips screwdriver
two adjustable wrenches
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
1
2
4
70
6
1
