Pro-Form Sport E5.0 User Manual page 11

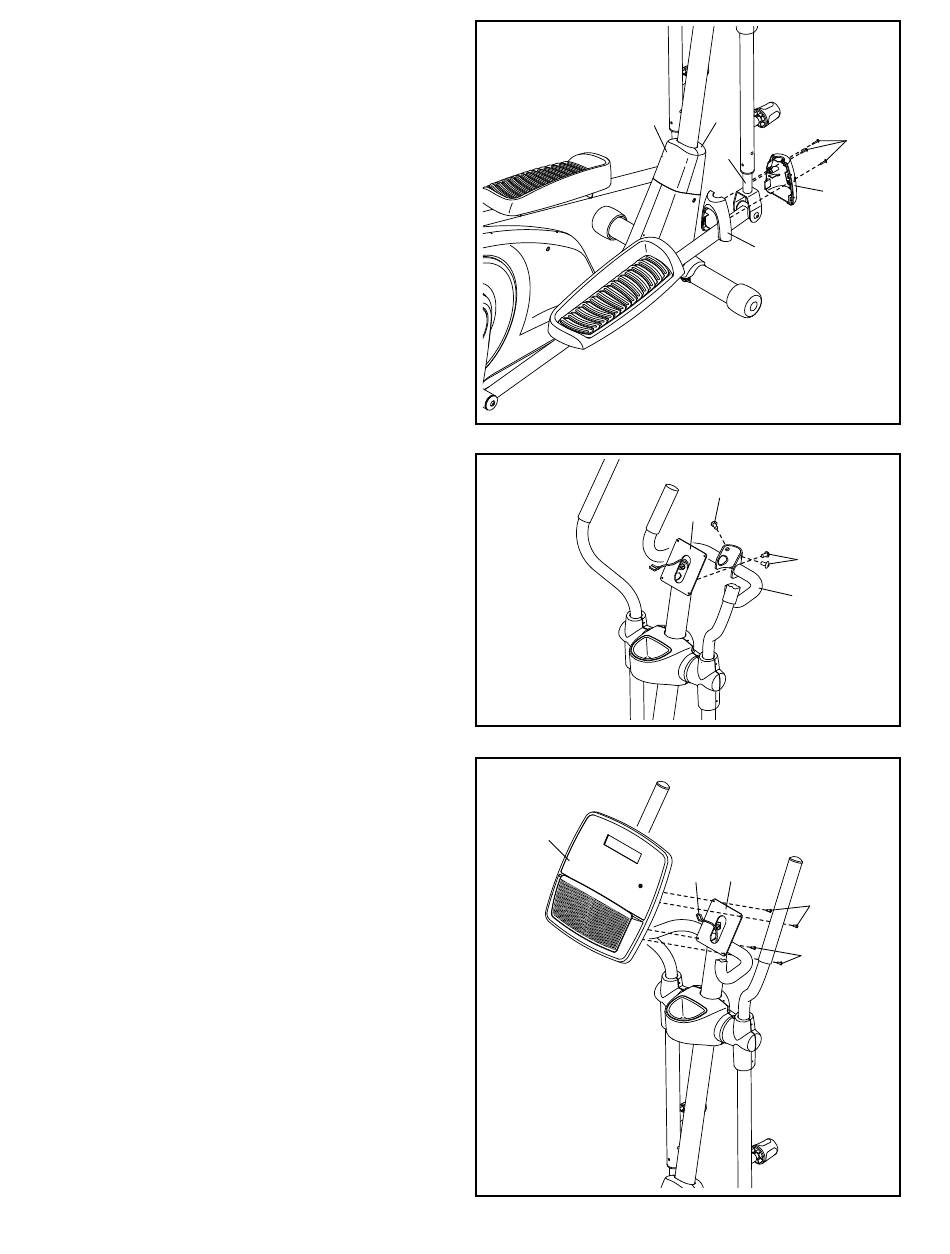

12. Identify a Rear Leg Cover (38) and a Front Leg
Cover (39), and orient them as shown.
Press the Rear and Front Leg Covers (38, 39)
together around the right Upper Body Leg (13),
and attach them with three M4 x 16mm Screws
(78); start the center Screw first, and then
start the other two Screws. Then, tighten all
the Screws.
Repeat this step on the other side of the
elliptical.
See step 4. Tighten the two M8 x 15mm
Screws (60) and the two M8 x 25mm
Screws (92).
Then, press the Rear and Front Shield Covers
(27, 28) into place.
13. Have a second person hold the Handlebar (22)
in place around the Upright (2).
Attach the Handlebar (22) to the Upright (2) with
three M10 x 20mm Screws (79); start all the
Screws, and then tighten them.
14. Untie and discard the wire tie attached to the
Main Wire (89).
While a second person holds the Console (5)
near the Upright (2), plug the Main Wire (89) into
the receptacle on the Console. Tip: The wire
connector should slide into place easily and
snap into place with an audible click. If it
does not, turn the connector and try again.
Insert the excess wire into the Upright (2).
Tip: Avoid pinching the wires. Attach
the Console (5) to the Upright (2) with four
M4 x 12mm Screws (77); start all the Screws,
and then tighten them.
12
27
13
14
5
11
28
78
13
39
38
79
2
79
22
Avoid pinching the
Main Wire (89)
2
89
77
77
