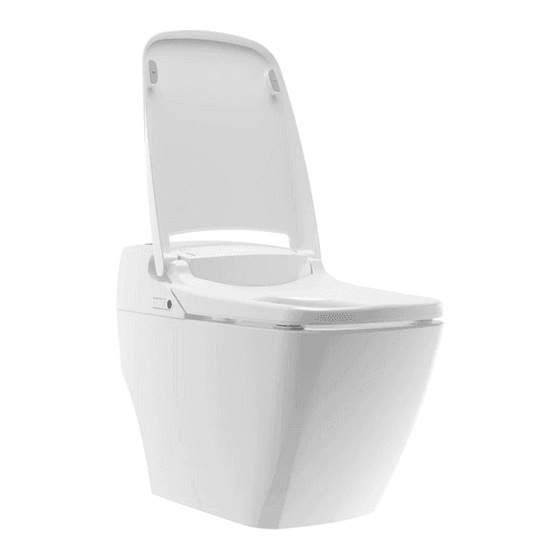

- Page 1 PRODIGY SMART BIDET TOILET (P500, P700, P770) SERVICE MANUAL...
- Page 2 AUTO OPEN/CLOSE MALFUNCTION TOILET LID OPENS/CLOSES BY ITSELF REMOTE NOT RESPONDING SEAT IS NOT OPENING/CLOSING WITH REMOTE LEAKAGE LEAKING FROM THE BACK AND SIDE OF LID BASE WARM WATER MALFUNCTION COLD WATER COMING OUT FROM THE NOZZLE HEATED SEAT TEMPERATURE SEAT IS NOT GETTING WARM FLUSH MALFUNCTION FLUSH IS NOT FUNCTIONING...
-
Page 3: Reset The Unit
1. RESET THE UNIT 2. TEST WITH WIRELESS REMOTE AUTO OPEN/CLOSE MALFUNCTION *Toilet lid *Toilet seat TOILET LID OPENS/CLOSES BY ITSELF Unplug the cord and open the lid and then seat. Plug the cord back in the outlet. This should reset the unit. Check if the LEDs on the remote are working properly. - Page 4 3. UNSCREW BACK 5. DETACH OLD DAMPER PCB 6. ATTACH NEW DAMPER PCB 8. ORGANIZE PCB WIRES Unplug the power cord. Turn the water shutoff valve clockwise to turn it off. Unscrew the 2 screws on the back Connect the red and blue wires to the new PCB. Put the wires in the space between 1 and 2.
- Page 5 10. CLOSE THE LID BASE 12. ATTACH SCREW IN BACK 14. TEST REMOTE AGAIN *Organize wires away from the nozzle Organize all the PCB wires in the directions as above so won’t Screw the 2 screws back using a phillips interfere with the nozzle movement.
- Page 6 1. RESET THE UNIT 2. TEST WITH WIRELESS REMOTE REMOTE NOT RESPONDING *Toilet lid *Toilet seat SEAT IS NOT OPENING/CLOSING WITH REMOTE Unplug the cord and open the lid and then seat. Plug the cord back in the outlet. This should reset the unit. Check if the LEDs on the remote are working properly.
- Page 7 1. RESET THE UNIT 3. DETACH AIR VENT Unplug the power cord. Turn the water shutoff valve LEAKAGE clockwise to turn it off. Unscrew the 2 screws on the back using a phillips head screwdriver. LEAKING FROM THE BACK AND SIDE OF LID BASE 2.
- Page 8 4. ATTACH PARTS TOGETHER 6. CHECK FOR LEAKING 7. CLOSE THE LID BASE 9. ATTACH SCREWS IN BACK *Organize wires away from the nozzle Screw the 2 screws back using a Phillips *1 - Checker | 2 - Air Vent Body Organize all the PCB wires in the directions as above so won’t head screwdriver.
- Page 9 1. RESET THE UNIT 2. OPEN LID BASE WARM WATER MALFUNCTION COLD WATER COMING OUT FROM THE NOZZLE Unplug the power cord. Turn the water shutoff valve Unplug the power cord. Turn the water shutoff valve clockwise to turn it on. Plug the power cord back. clockwise to turn it off.
- Page 10 3. RESET THE THERMOSTAT 5. ATTACH BASE TO TOILET 7. SET UP WATER TEMPERATURE Use your index finger to reset the thermostat. Push the Push the seat down using your palms until you hear clicks. Turn the water shut off valve counterclockwise to thermostat until you hear a click.
- Page 11 RESET THE UNIT HEATED SEAT MALFUNCTION SEAT IS NOT GETTING WARM Unplug and plug the power cord back in the outlet. Push the “Nozzle Cleaning” button to check the if the remote is working properly. Setup the seat temperature on the remote. Wait for 3-4 minutes and check if the seat is getting warm.
- Page 12 1. CHECK THE WATER HOSE 2. INCREASE WATER FLOW Turn the water shut off valve counterclockwise to turn it on. FLUSH MALFUNCTION Check the water pressure. If the pressure seems too high, it may cause a malfunction. Adjust the valve enough to flush. Close the water valve by turning it clockwise.
- Page 13 QUESTIONS? Contact out support team! 847.458.2334 support@biobidet.com www.biobidet.com...
