- Page 1 Installation 1. Insert bolts. 2. Attach nuts. 3. Tighten. 4. Unlock hinge. 5. Hold in unlock position and snap in place. 6. Lock hinge.
-
Page 2: Installation
® NextStep Installation Instructions Includes Tools Needed IMPORTANT Read instructions first for proper 1/2” installation. (1.3 cm) or/o/ou 1/2” (1.3 cm) Installation Unlock hinge. Turn seat over Insert bolts. Lock hinge. Place seat on bowl. Attach nuts. Finger-tighten. - Page 3 Cont./Cont./Suite IMPORTANT Ensure seat is centered on bowl before proceeding. Tighten lower section of STA-TITE® nuts Raise lid. until they snap off. Snap in child seat. Lower child seat; close lid. To use, raise lid. Lower child seat. ® After installation, raise and lower the cover and ring to activate the slow-close modules.

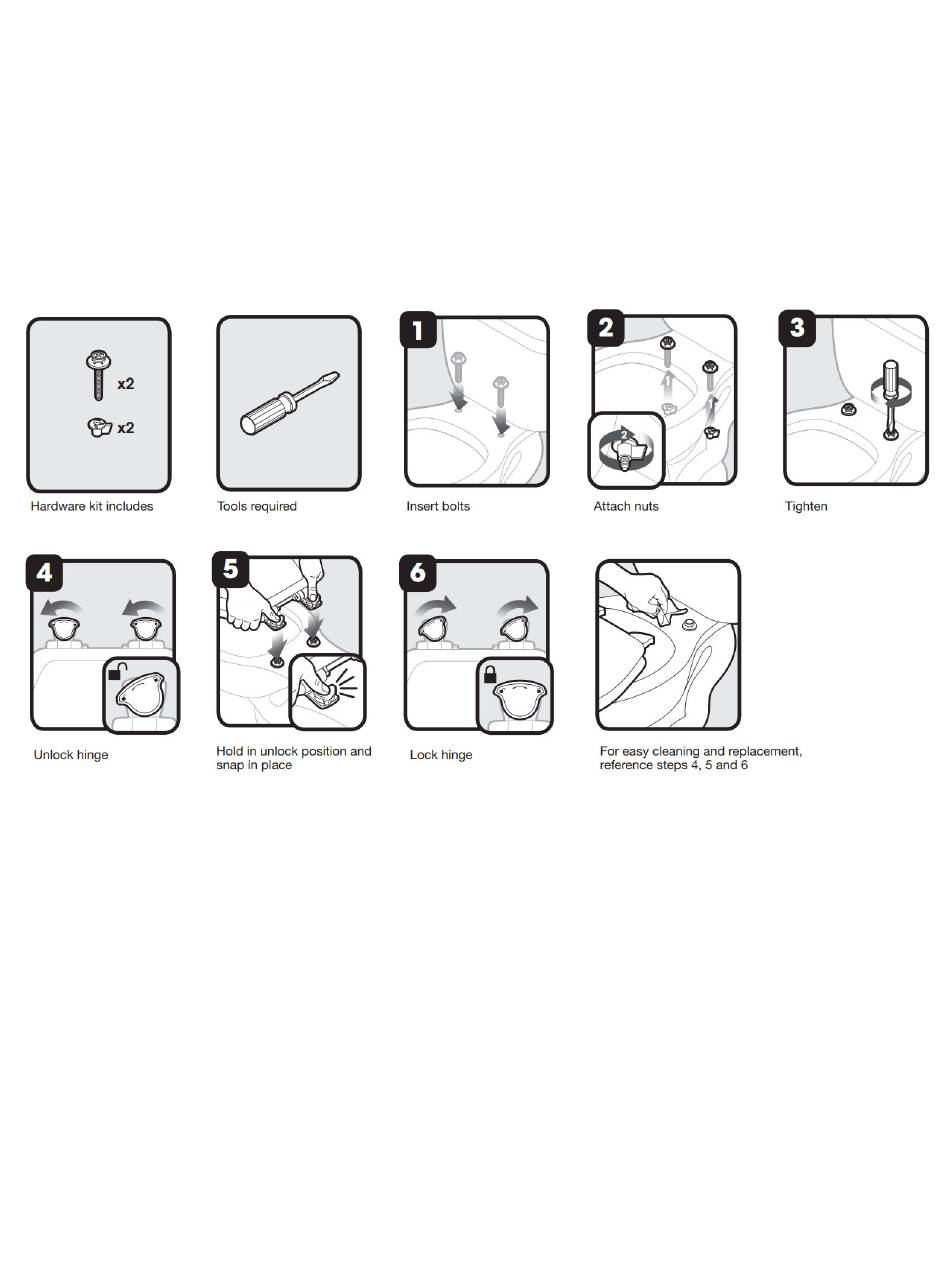

- Page 4 Hardware kit includes Tools required Insert bolts Attach nuts Tighten Unlock hinge For easy cleaning and Hold in unlock position and Lock hinge snap in place replacement, reference steps 4, 5 and 6...
- Page 5 Installation Instructions 1B5991783 Includes Tools Needed IMPORTANT Read instructions first for proper 1/2” installation. (13 mm) or/o/ou 1/2” (13 mm) Installation Flip up hinge caps. Turn seat over Insert bolts. Close hinge caps. Place seat on bowl. Attach nuts. Finger-tighten.
- Page 6 Installation Instructions 1B5991783 Includes Tools Needed IMPORTANT Read instructions first for proper 1/2” installation. (13 mm) or/o/ou 1/2” (13 mm) Installation Flip up hinge caps. Turn seat over Insert bolts. Close hinge caps. Place seat on bowl. Attach nuts. Finger-tighten.
- Page 7 Cont. IMPORTANT Ensure seat is centered on bowl before proceeding. As you hold seat centered on bowl, Raise lid. tighten lower section of STA-TITE® nuts until they snap off. Insert child seat in upright position. Lower child seat; close lid. Do Not Stand On Cover Operation/Operación/Utilisation ®...
-
Page 8: Operation
Cont. IMPORTANT Ensure seat is centered on bowl before proceeding. As you hold seat centered on bowl, Raise lid. tighten lower section of STA-TITE® nuts until they snap off. Insert child seat in upright position. Lower child seat; close lid. Do Not Stand On Cover Operation ®... - Page 9 1/2” (1.3 cm) or/o/ou 1/2” (1.3 cm) Tools required Hardware kit includes Thread bolt into hinge Push bushing onto bolt Place seat on bowl Attach nuts, Finger-tighten As you hold seat centered on bowl, tighten lower section of STA-TITE® nuts until they snap off...
- Page 10 1/2” (1.3 cm) or/o/ou 1/2” (1.3 cm) Hardware kit includes Tools required Thread bolt into hinge Push bushing onto bolt Place washer and seat Attach nuts and finger- on bowl tighten, keeping washer aligned with the hinge body As you hold seat centered on bowl, tighten lower section of STA-TITE®...
- Page 11 1/2” (1.3 cm) or/o/ou 1/2” (1.3 cm) Tools required Hardware kit includes Flip up hinge caps Turn seat over Insert bolts Push down hinge caps As you hold seat centered on bowl, tighten lower section of STA-TITE® nuts until they snap off Place seat on bowl Attach nuts, finger-tighten Feel the difference with Mayfair.
