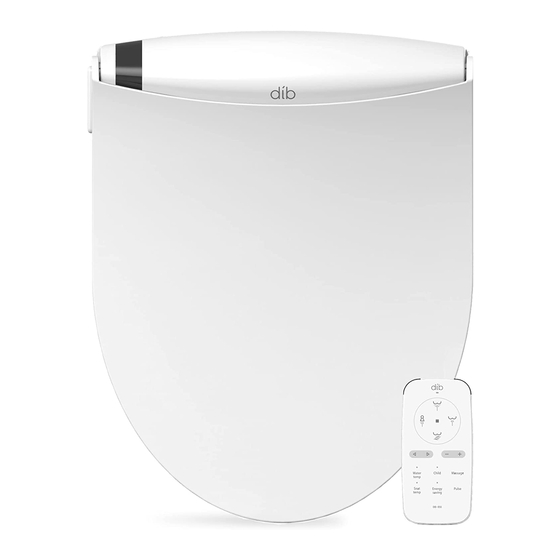

- Page 1 Special Edition OWNER’S MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PRODUCT INFORMATION Safety Precautions...........4 Product Features............8 Unit & Parts..............10 Dimensions..............12 Remote Control............13 PRODUCT INSTALLATION Installation..............14 Remote Control Installation.........16 Trial Operation............18 Product Disassembly..........19 Operation..............22 TROUBLESHOOTING Settings................30 Maintenance & Cleaning........34 Specifications............36 Troubleshooting............37 Warranty...............38... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS THIS UNIT WAS MANUFACTURED FOR HOUSEHOLD USE ONLY. WARNING - TO REDUCE THE RISK OF BURNS, READ ALL OPERATING INSTRUCTIONS BEFORE INSTALLATION. ELECTROCUTION, FIRE, OR INJURY TO PERSONS • • This product should be installed according to this manual. Close supervision is necessary when this product is used by, on, or near children or invalids. - Page 4 SAFETY PRECAUTIONS (CONT.) GROUNDING INSTRUCTIONS DANGER - IMPROPER USE OF THE GROUNDING PLUG CAN RESULT IN A RISK OR ELECTRIC SHOCK This product has a three-prong grounding plug, which must be plugged into an outlet that is properly installed and rounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.
-
Page 5: Product Features
PRODUCT FEATURES DIB Bidet has the following characteristics: Continuous Warm Water Supply Vortex Wash Enjoy continuous warm water throughout Soft but powerful water wash for added the wash cycle. cleansing benefit. Bubble Wash Stainless Steel Nozzle Aerated water wash adds cleaning comfort. For better hygiene, a stainless steel nozzle is applied. -
Page 6: Unit & Parts
UNIT & PARTS Mounting bolts Cone Mounting Bolt guides packing bracket Water supply hose Water supply hose (for toilet) (for bidet) Remote control Remote control AAA 4 batteries bracket... - Page 7 DIMENSIONS REMOTE CONTROL Elongated Round...
-
Page 8: Installation
INSTALLATION Toilet Seat Removal Turn Off Shut-Off Valve Install Mounting Bracket Slide Seat onto Plate • • • • Lift hinge covers and use a Turn shut-off Place adjustable mounting Slide seat onto plate until it is screwdriver to remove the valve completely. -
Page 9: Remote Control Installation
REMOTE CONTROL INSTALLATION Remove Adhesive Clean Area Battery Life Unplug If Unit Does Not Work • • • When the batteries have • Remove the adhesive Clean the area thoroughly If the unit does not work reached the end of service protection to attach the before attaching the bracket. -
Page 10: Trial Operation
TRIAL OPERATION PRODUCT DISASSEMBLY Open Water Supply Check For Leaks Unplug Power Close Water Supply Valve • • • • Open the water supply Check that there are no leaks Unplug the power Close the water supply valve valve by turning it around the hose connection. - Page 11 PRODUCT DISASSEMBLY (CONT.) Remove Bidet Hose Connect Water Supply Hose • • Remove the bidet hose, Connect the water supply toilet hose and T-Valve. hose that was removed when the bidet was installed. Open Water Supply Valve Attach Toilet Seat •...
-
Page 12: Operation
OPERATION Sit On Toilet Seat Press Posterior, Feminine, Press Dry Button Press STOP Button and Vortex Wash Buttons • • • • Deodorization function Selected function can be Dryer temperature is Selected functions stop. starts automatically. used as described. When adjustable. - Page 13 OPERATION (CONT.) Wide Clean (Oscillation) Massage (Pulse) Water Pressure Control Nozzle Position Control • • • • When pressing the Wide When pressing Massage Adjust Water Pressure. During the operation of Clean button during the button during operation Posterior, Feminine, and operation of Posterior and of Posterior, Feminine, and Vortex wash, nozzle position...
- Page 14 OPERATION (CONT.) Child Function Seat Temperature Control Water Temperature Control Energy Saving Modes Automatic Energy Save Mode • This mode will be activated by pressing the Energy Saving button until yellow LED lamp lights on. • Seat will be kept at 320C. •...
- Page 15 OPERATION (CONT.) Deodorizing Function Low Temperature User Preset Burn Protection • • • When sitting on the To reduce the chance of Nozzle position, water pressure, seat, deodorizing function low temperature buns, the dry/water/seat temperature can starts automatically. seat has a seat heater auto be present and stored for adjustment function which 2 different users.
-
Page 16: Settings
SETTINGS User Setting With Remote Control Seat Switch ‘Off’ Status Seat Switch ‘On’ Status Regardless of On/Off Seat Switch Initial Function Description Status Operation Status Fan Speed Display of Energy Press the “Stop” activating saving and “Energy Saving” Level Occu. Unocc. - Page 17 SETTINGS (CONT.) Extra Functions With Side Control Panel Using Inline Carbon Filter Use of external water filter is only recommended in areas with known hard Seat Switch ‘Off’ Status water issues. If a filter is used, it must be replaced every 3 months. This Seat Switch ‘On’...
-
Page 18: Maintenance & Cleaning
MAINTENANCE & CLEANING Manual Nozzle Cleaning Cleaning of Bidet Body Drain Remaining Water Maintenance During Winter 1. Press Posterior for longer 1. Exterior surface of bidet is 1. Remove the power plug 1. Insert the power plug into than 3 seconds, and then made of plastic material, from the outlet. -
Page 19: Specifications
SPECIFICATIONS TROUBLESHOOTING ITEM DIB-850 Please check the following points before requesting the repair of the product. Rated Voltage AC 120V, 60Hz Max. Consumption Power 1270W Problem Check List Power Cord Length 4ft. Water Feed Method Directly Connected to Water Pipe The bidet is Check if the power plug is not connected. -
Page 20: Warranty
WARRANTY 1 YEAR WARRANTY Bio Bidet warrants its products to be free from manufacturing defects under normal use and service for a period of 1 year from the date of purchase. This warranty is extended only to the original purchaser. For full warranty details, visit www.biobidet.com Contact Bio Bidet customer support with any questions you may have. - Page 21 Thank You Technical Support/Customer Service 7900 S Route 31 Crystal Lake, IL 60014 T: 847.458.2334 U.S. TOLL FREE: 877.339.5214 support@biobidet.com www.biobidet.com...
