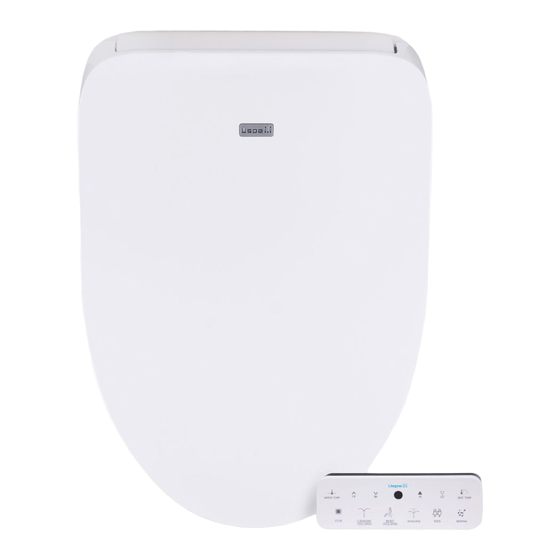

- Page 1 UB4800 OWNER’S MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PRODUCT INFORMATION Features..................5 Important Safeguards............6 Parts....................12 Dimensions................13 Product Information..............14 PRODUCT INSTALLATION Seat Installation Guide............13 Water Connection Guide............17 Testing & Seat Bumpers............18 Remote Installation Guide..........19 PRODUCT OPERATION How to use................20 Side Control Panel..............22 Warnings..................23 Cleaning..................24 Maintenance................25 Troubleshooting Guide............29 WARRANTY Warranty..................30... -
Page 3: Features
FEATURES • Wireless remote with touch panel • Wide cleaning • Adjustable heated seat • Pulsating • Kids wash • Massage cleaning • Intelligent body sensor • Satisfying posterior cleaning • Splash guard • Soft feminine cleaning • Slow closing seat/lid •... -
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS READ ALL INSTRUCTIONS BEFORE USING CAUTIONS BEFORE INSTALLATION DANGER- To reduce the risk of electric shock: Note the following important points: • Do not install in a location where water might be splashed on this Do not place or store this appliance in a location where it can fall or be pulled into a tub or sink. - Page 5 IMPORTANT SAFEGUARDS (CONT.) WIRING REQUIREMENTS Any other servicing should be performed by authorized service representatives. Grounding Instructions • This product should be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.
- Page 6 IMPORTANT SAFEGUARDS (CONT.) • Unplug if you do not plan to use for a long period of time. Follow these basic instructions to ensure the safe use of your appliance. • Unplug while there is thunder or lightning. • Do not pull out the waterhose forcefully. •...
-
Page 7: Parts
PARTS DIMENSIONS 15mm Water supply hose (2pcs) The toilet dimensions must be within those shown above. Do not install this appliance on a toilet that does not meet those dimensional requirements. -
Page 8: Dimensions
INSTALLATION PRODUCT INFORMATION SPECIFICATIONS 1. Remove the seat from 2. Mount the plate the existing toilet body. Item UB-4800 Standard power supply AC 120V 60Hz660W Water supply Way of connection Direct connection to tap water Water pressure 0.07MPa ~ 0.74MPa Cleansing Spray for cleansing 900 +/- 100 ml/min... -
Page 9: Water Connection Guide
INSTALLATION (CONT.) WATER CONNECTION GUIDE • Close the shutoff valve 3. Attach the unit by turning it clockwise. • Then flush the water 2W ater tank tank completely to empty it. • Remove the existing To the unit T-valve water supply hose Main unit from the water tank. -
Page 10: Testing & Seat Bumpers
TESTING & SEAT BUMPERS REMOTE INSTALLATION GUIDE • Open the battery lid and • Fasten the remote control inster AAA batteries (3pcs). bracket with double sided Remember to place the adheasive tape on the proper remote in a spot you can area of the wall as shown. - Page 11 OPERATION Kids Self Cleaning • Press “Kids” to change all • Nozzles are cleaned by functions to be suitable automatically rinsing off for children: 1 minute for before and after every use. oscillation, level 1 of water pressure, and level 5 of Self-Diagnosis System nozzle position.
-
Page 12: Side Control Panel
SIDE CONTROL PANEL WARNINGS Side Control Buttons Do not drop the remote control in water. It may cause out of order malfunction. • Use side control buttons All functions will be operational when the seat is on unit when remote occupied except Nozzle Cleaning and Power/Economy. -
Page 13: Cleaning
CLEANING MAINTENANCE NOZZLE CLEANING STRAINER MAINTENANCE DO NOT Forcefully push, pull, or bend the nozzles. It may result in failure. This appliance will not operate properly if the strainer is clogged. Be sure to Make sure to use “Stop” button on the remote control. clean the strainer regularly. - Page 14 MAINTENANCE (CONT.) DRAINING WATER Drain water while not using the unit over an extended period of time. 1. Unplug the power 2. Close the shutoff valve. 3. Unscrew the 4. Drain the water supply. mounting bolts. • Unplug the power supply •...
-
Page 15: Troubleshooting Guide
MAINTENANCE (CONT.) TROUBLESHOOTING GUIDE PREVENT FREEZING Problem Possible Cause Solution • Make sure the power cord is properly plugged in. Completely fails Is there a Check for a • Set the water temperature to low or middle. (Freezing can be prevented power outage? power failure or a to work... -
Page 16: Warranty
WARRANTY USPA Personal Hygiene Appliance Limited Warranty This limited warranty is our only warranty covering your product. Repair or replacement as provided under this warranty shall be the We warrant our products to be free from manufacturing defects under normal exclusive remedy available to you. - Page 17 Thank You Technical Support/Customer Service 7900 S Route 31 Crystal Lake, IL 60014 T: 847.458.2334 U.S. TOLL FREE: 877.339.5214 support@biobidet.com www.biobidet.com...
