User Manual for the NETGEAR Pre-N Wireless PC Card WGM511
To view the Statistics page, click the WGM511 icon
Settings page opens. Click the Statistics tab..

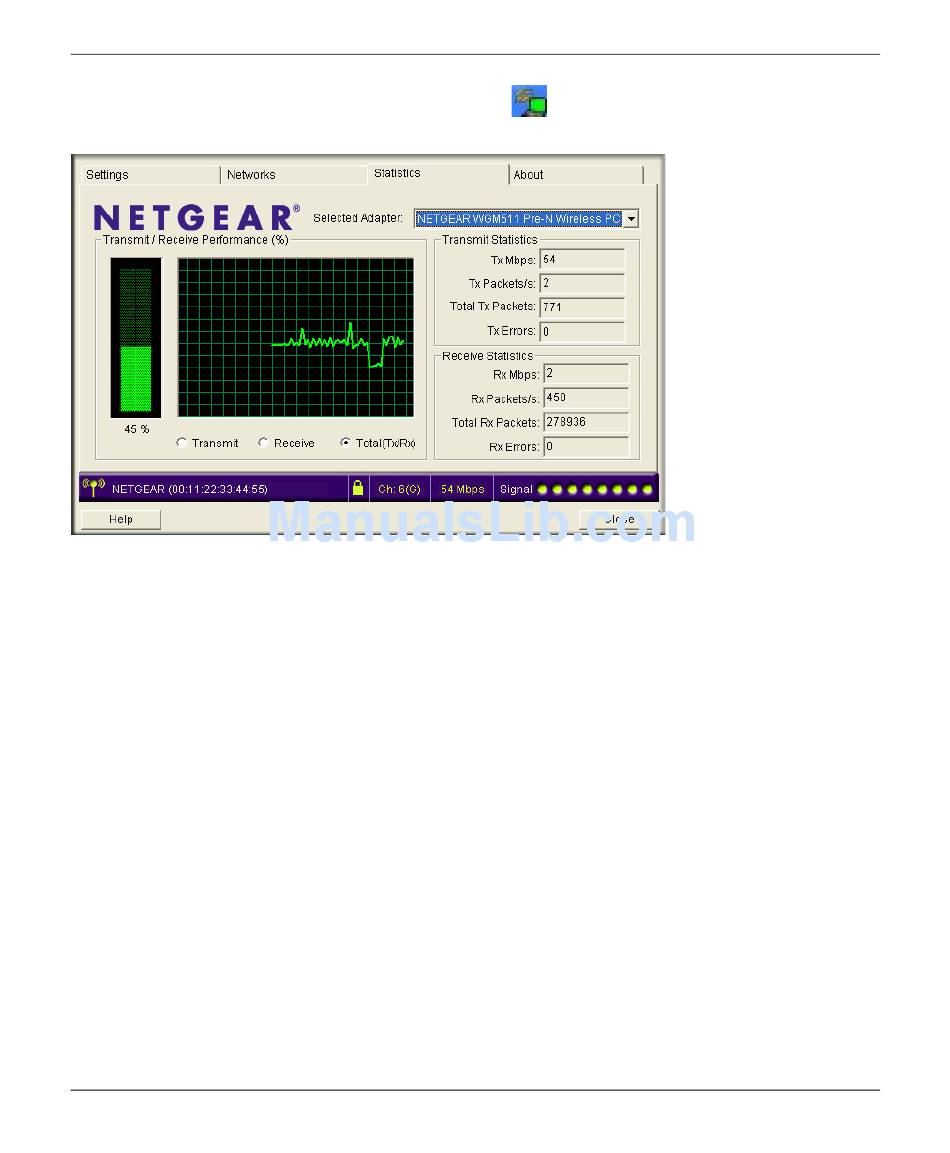

Figure 4-4: Statistics page
• Transmit/Receive Performance (%): A real time graph identifying the total, receive, and
transmit utilization as a percentage the total possible.
• Total Receive/Transmit Graph: Identifies the trend of transmit/receive data communications
over time.
• Transmit Statistics: Identifies transmit megabits per second (Mbps), transmit packets per
second (Tx Packets/s), total transmitted packets, and transmit errors.
• Receive Statistics: Identifies receive megabits per second (Mbps), receive packets per second
(Rx Packets/s), total received packets, and received errors.
4-8
December 2004
in the Windows system tray. The
NETGEAR Smart Wireless Wizard
