Reader – Tag Link Profiles
The Tile R1250I reader supports different modulations and return link profiles according to EPC Class1
Gen2 protocol.
In the following table are reported all profiles that have been tested for the compliance with ETSI and FCC
regulations.
Link profile #
0
1
2
Tab. 8.2: Tile R1250I Reader to tag link profiles
Radiation Patterns

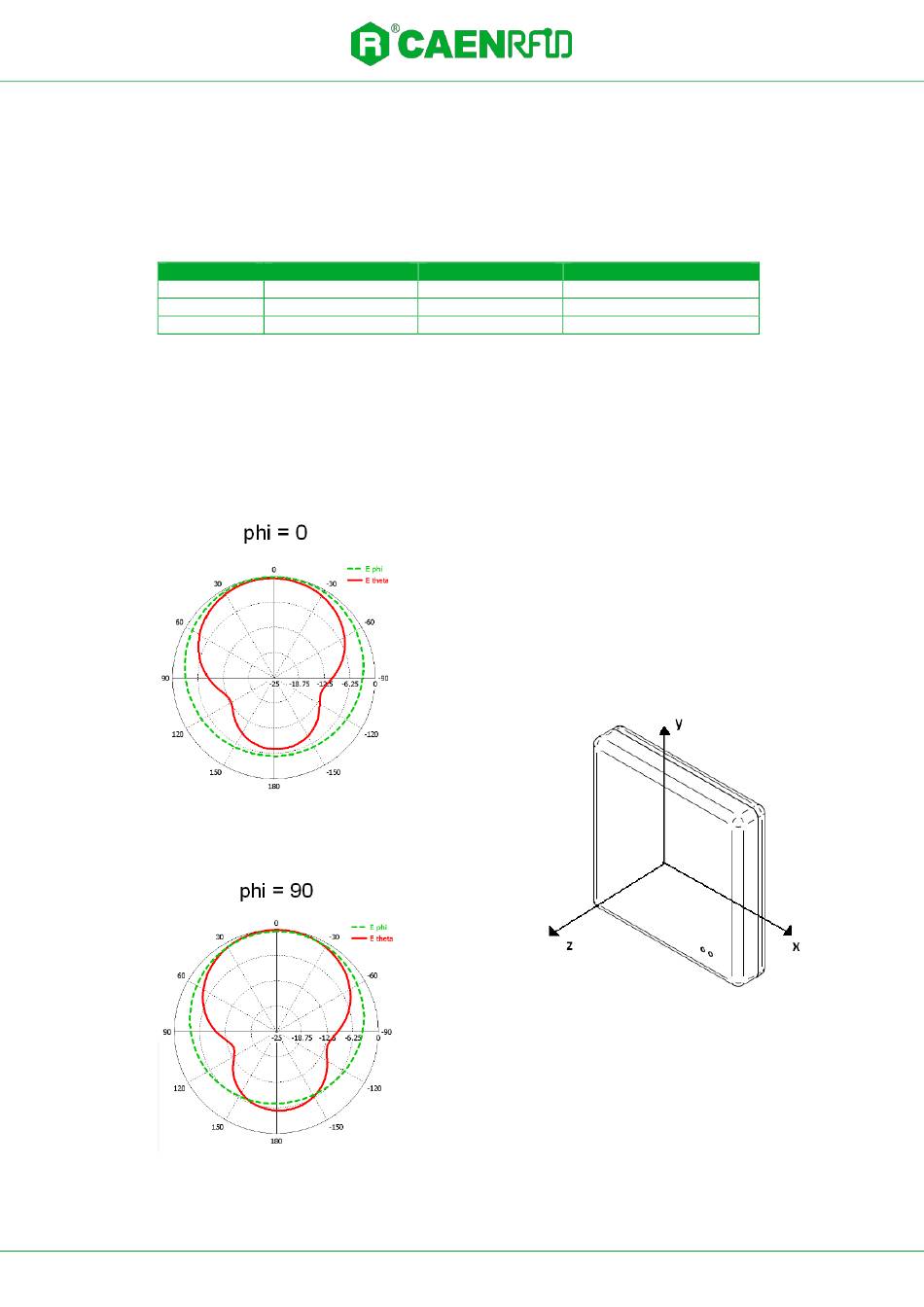

The radiation patterns of the Tile R1250IE are shown in the following figures:
Fig. 8.1: Tile R1250IE Radiation pattern H plane
Fig. 8.2: Tile R1250IE Radiation pattern V plane
TECHNICAL SPECIFICATIONS - Tile R1250I - Technical Information Manual
Regulation
Modulation
ETSI - FCC
PR–ASK; f=40kHz
ETSI - FCC
PR–ASK; f=40kHz
ETSI
PR–ASK; f=40kHz
Return Link
FM0; f = 40kHz
Miller (M=4); f = 256kHz
Miller (M=4); f = 320kHz
