Caen RFID Tile R1250I Technical Information Manual page 22

5 HID PROFILE
Introduction
Choosing the HID profile option, you select the keyboard emulation protocol.
For details on the available profiles and on the activation method, please refer to § Active Profile paragraph
page 16.
Making Inventory
If the reader is in the EASY2READ profile (factory profile), you need to install the CAEN RFID driver (refer
to § Driver installation page 11) and then access the reader configuration menu to set the HID reader
profile (refer to § Active Profile paragraph page 16).
Otherwise, if the reader is already in the HID profile, you don't need any driver installation and you can
start logging activity.
Launch a text editing application (or any other application accepting keyboard input).
Put tags in the reader read range.
On the text editing window, you will see the EPCs of the tags.

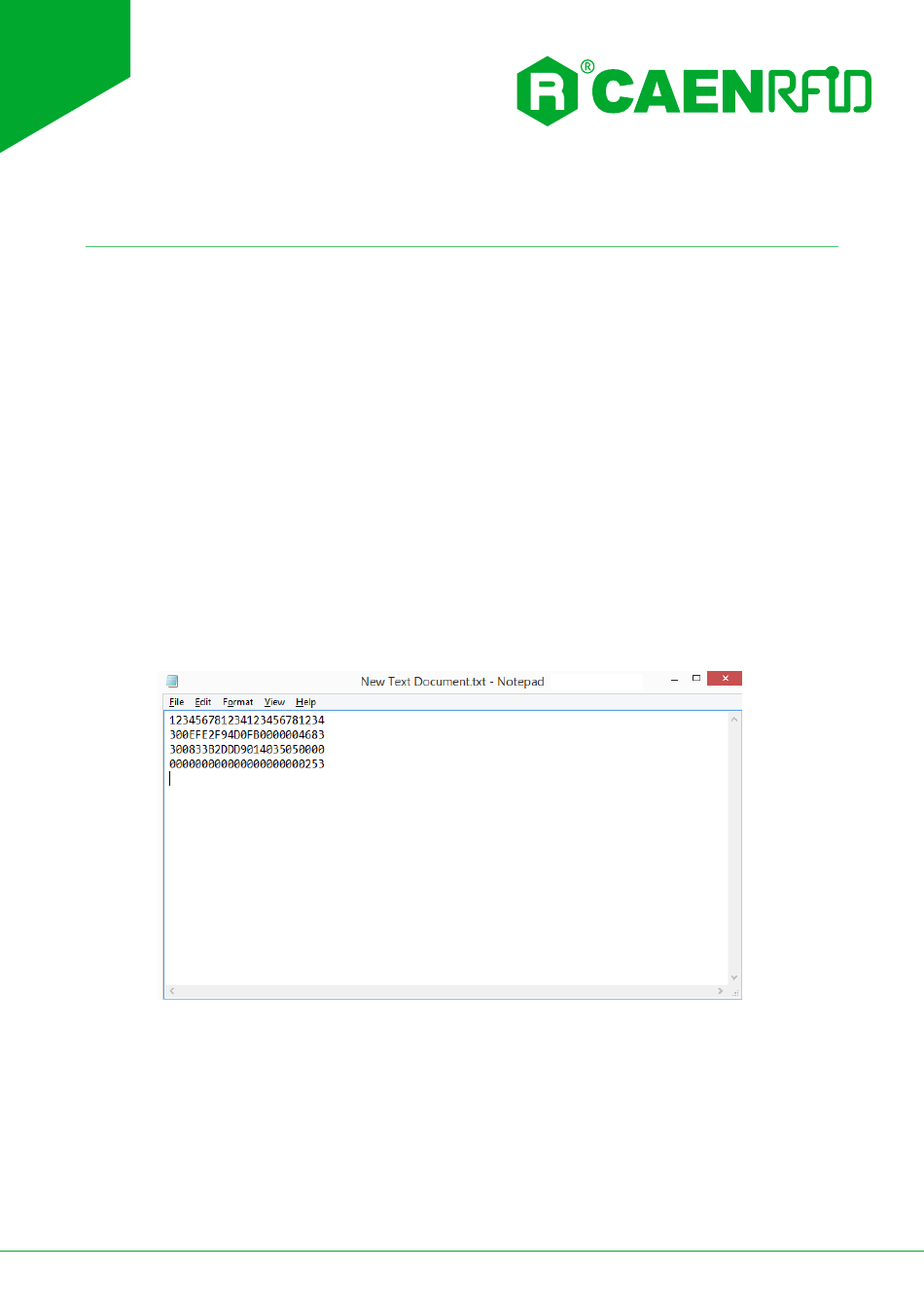

Example with a .txt file:
HID PROFILE - Tile R1250I - Technical Information Manual 22
