11 INSTALL AND CONNECTIONS

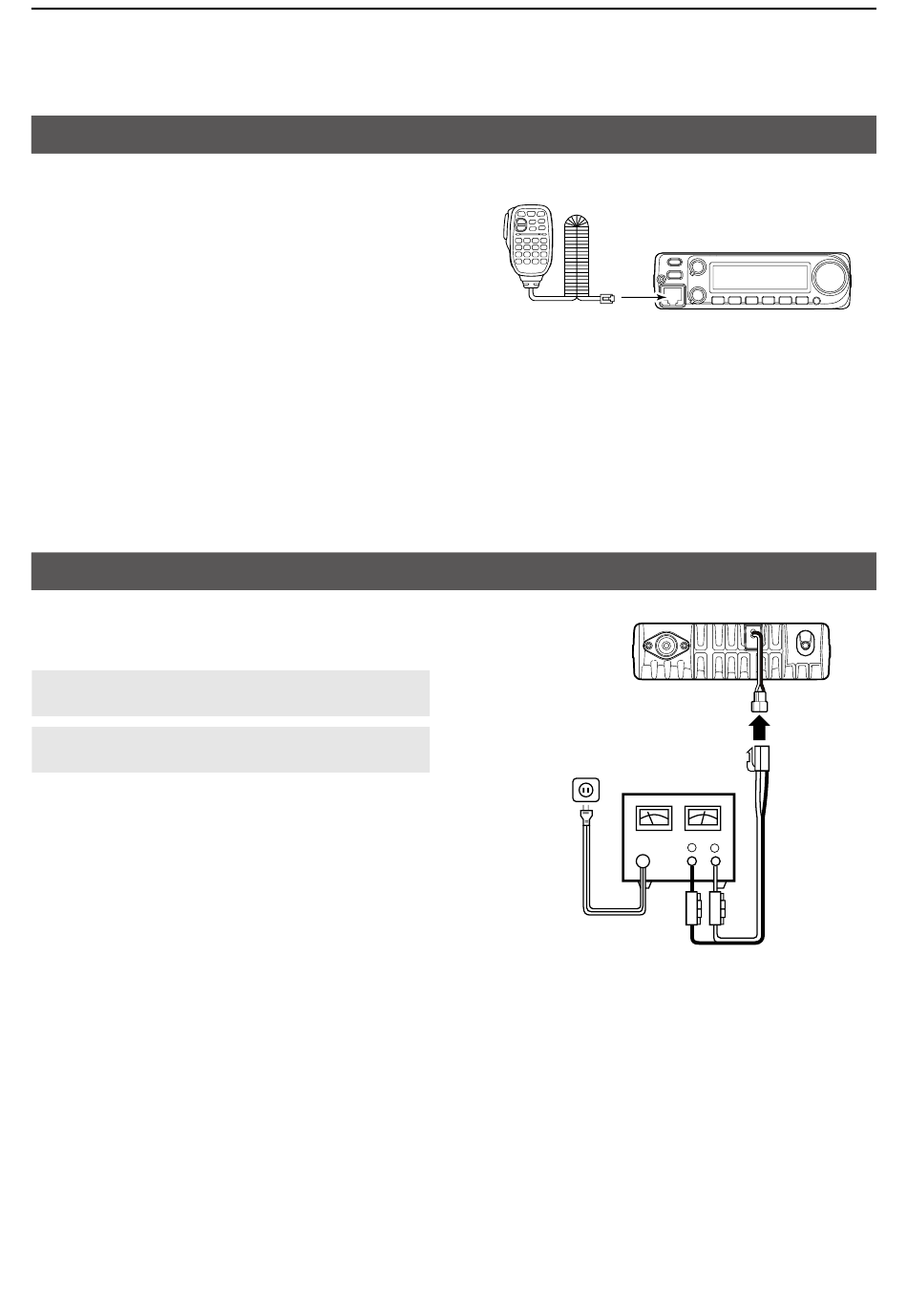

Connecting a microphone
Connect the supplied microphone to the 8-pin modular
socket on the front panel of the transceiver
Connecting a DC power cable
Confirm that the transceiver is OFF, and then connect
a 138 V DC power source with at least 15 A capacity
R WARNING! NEVER remove the fuse holders from
the DC power cable
CAUTION: DO NOT reverse the polarity when
connecting to the DC power cable
To an
AC
outlet
11-2
DC power supply
138 V
+
Red line:
Black line: _
− +
15 A or more
Black Red
