External storage flexbay (Hard drive)
Removing the external hard-drive assembly
Prerequisites
1. Follow the procedure in
Before working inside your
computer.
About this task

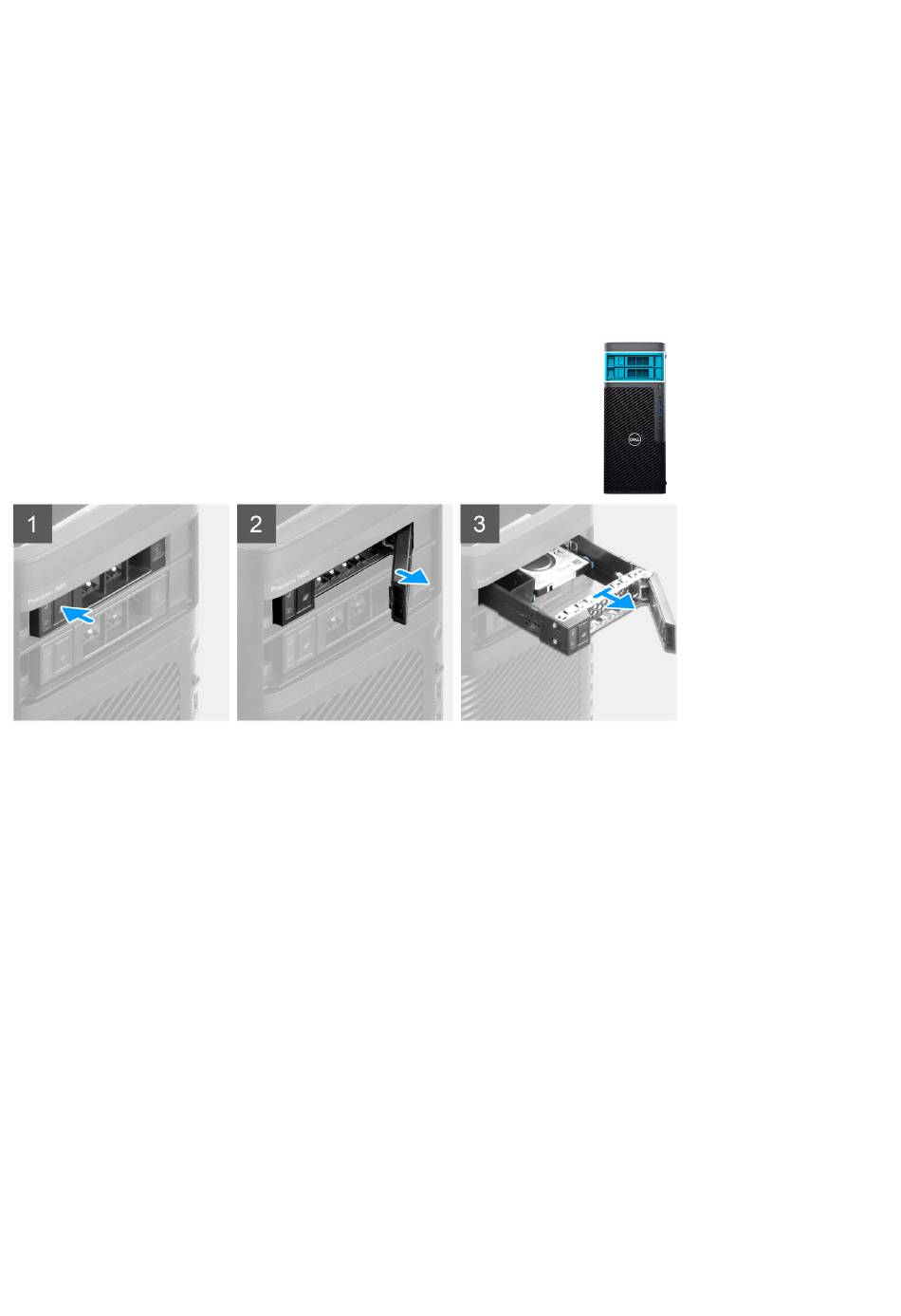

The following images indicate the location of the external hard-drive assembly and provide a visual representation of the
removal procedure.
Steps
1. Push the release button on the external-flexbay bracket to open the release latch.
2. Hold the release latch and slide the hard-drive assembly out of the external flexbay slot.
Installing the external hard-drive assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the external hard-drive assembly and provide a visual representation of the
installation procedure.
20
